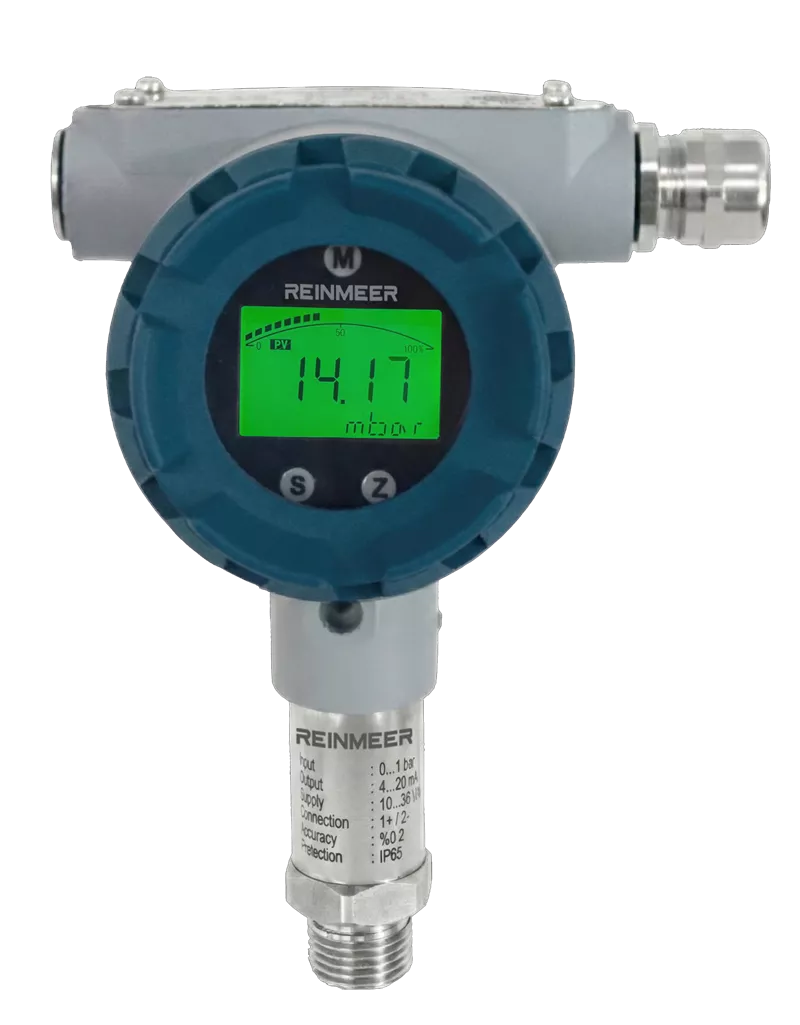

The Reinmeer RM-P08 LCD Display Pressure Transmitter is designed for precise and stable pressure measurement in industrial applications, featuring an integrated backlit LCD for local indication and parameter configuration.
| Feature | Description |
| Measuring Principle | Piezoresistive |
| Measurement Type | Gauge / Absolute Pressure |
| Pressure Range (BAR) | Min. -1 / Max. 200 |
| Overload (BAR) | 2 × FS |
| Measuring Range | Max. 2000 BAR |
| Current Output | 4–20 mA / 4–20 mA + HART / Optional 0–10 V (U = 10 V) / 0.02 A / Rs485 |
| Accuracy | ±0.2% FS |
| Zero Point | ±0,2 mV/V |
| Temperature Effect (Zero) | ±0,02 % FS / K |
| Output Signal | 4–20 mA + HART (standard), optional 0–10 V |
| Supply Voltage | 10…36 VDC |
| Load | (U < 10 V) / 0.02 A |
| Electrical Connection | M20x1.5 |
| Process Temperature | -40°C … +80°C |
| Ambient Temperature | -25°C … +80°C |
| Protection Class | IP67 |
| Housing Material | Aluminum |
| Wetted Parts | Stainless Steel 316L, Ceramic |
| Sealing | Viton (FKM) |
| Process Connection | Thread, flush, clamp, flange |
| Weight | ~0.6 kg |
