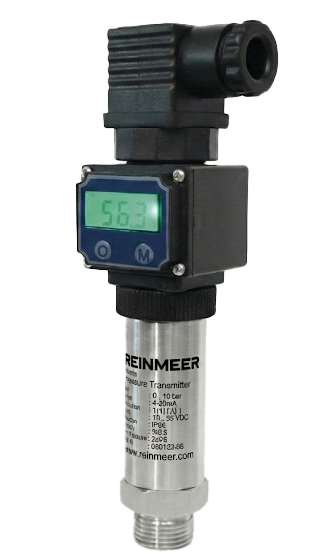

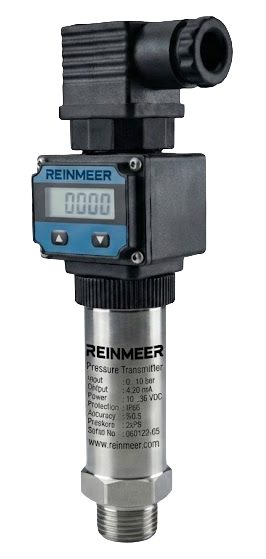

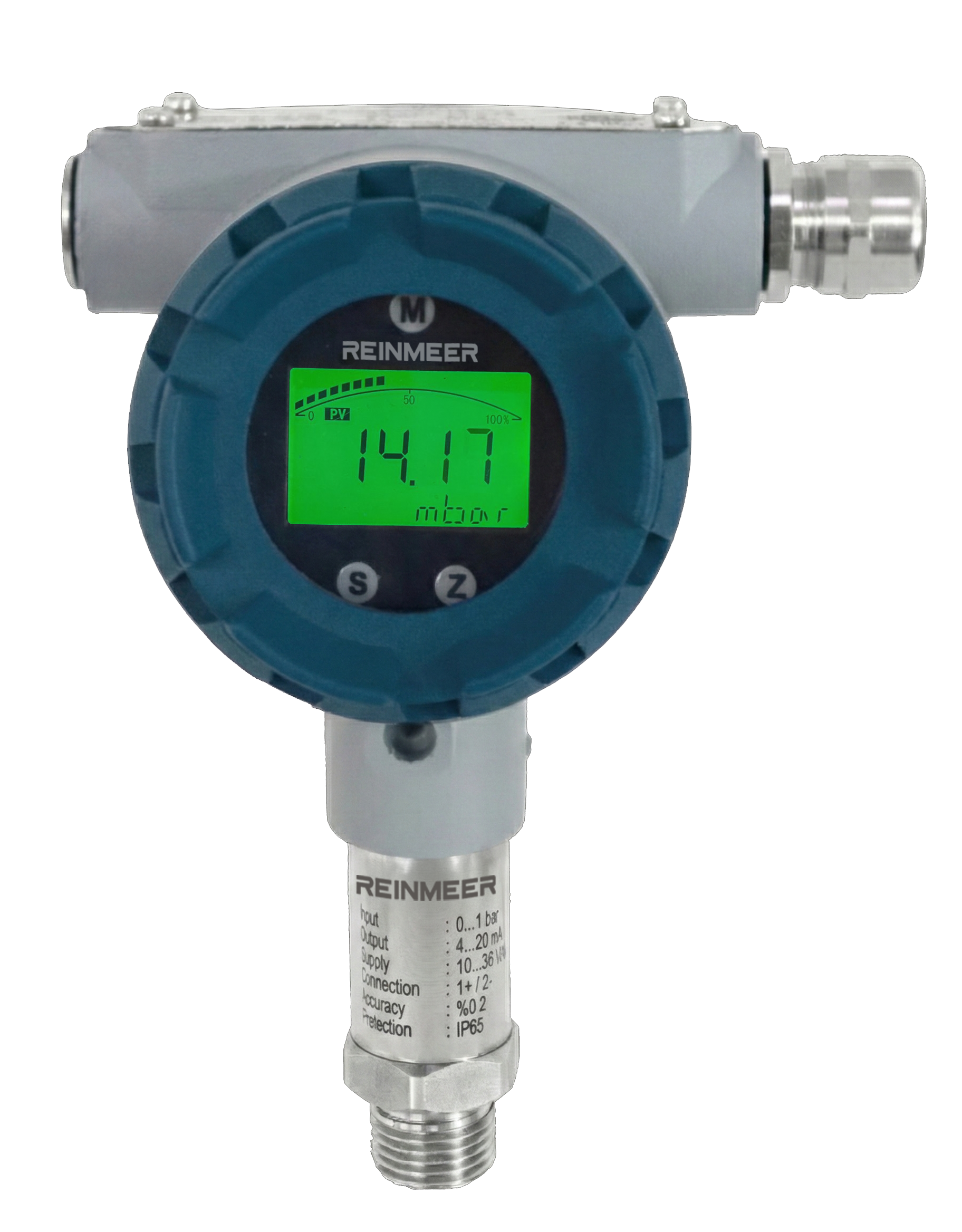

- Finger-Type Pressure Transmitter with Indicator

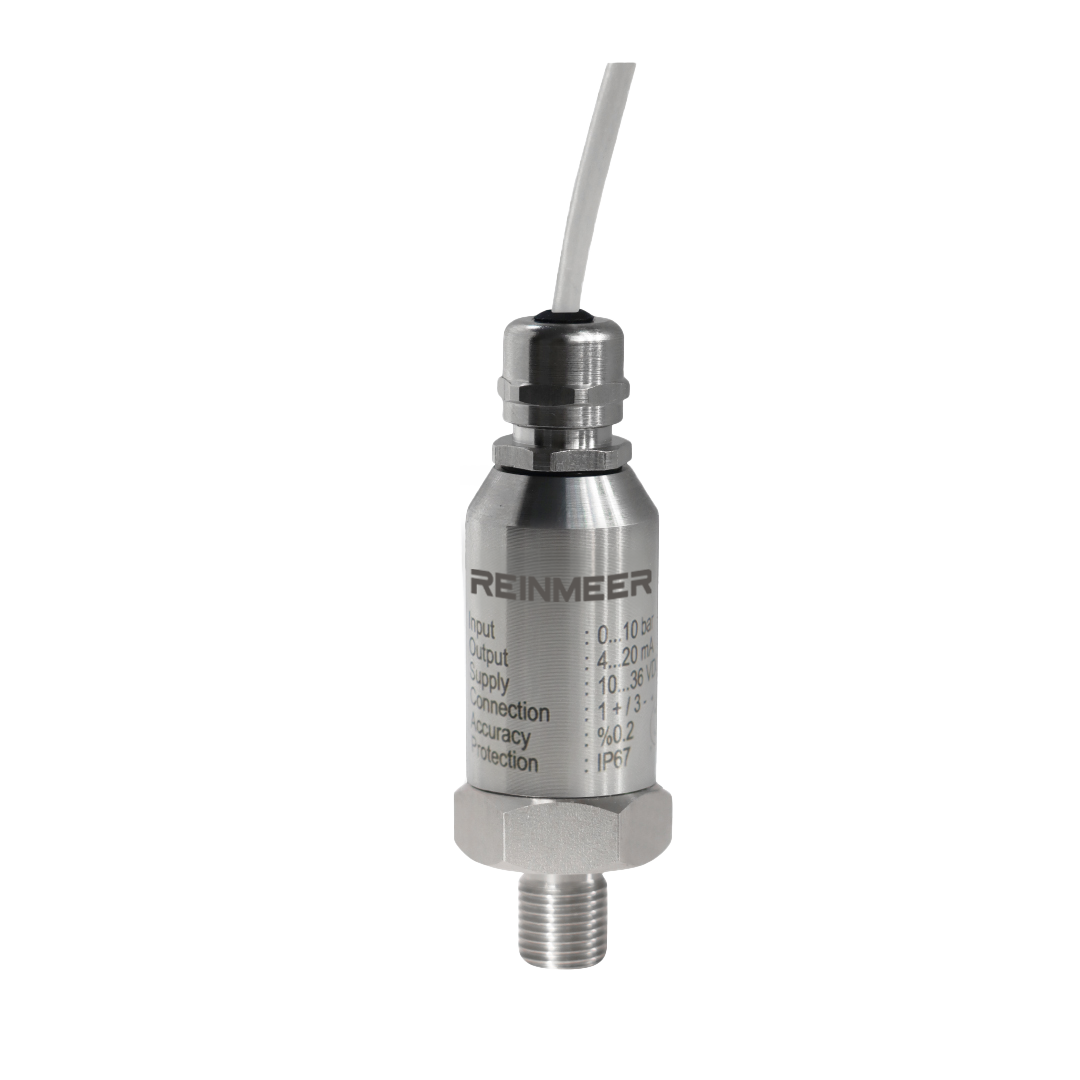

- Stainless Steel Pressure Transmitter Without Gauge
- Pressure Transmitters with and without Gauges
- Flange Stainless Steel Body Pressure Transmitter

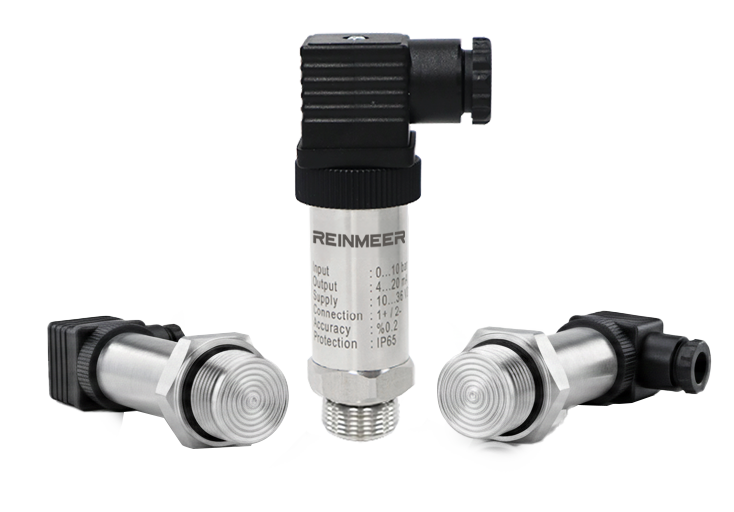

- Flush Diaphragm Pressure Transmitter

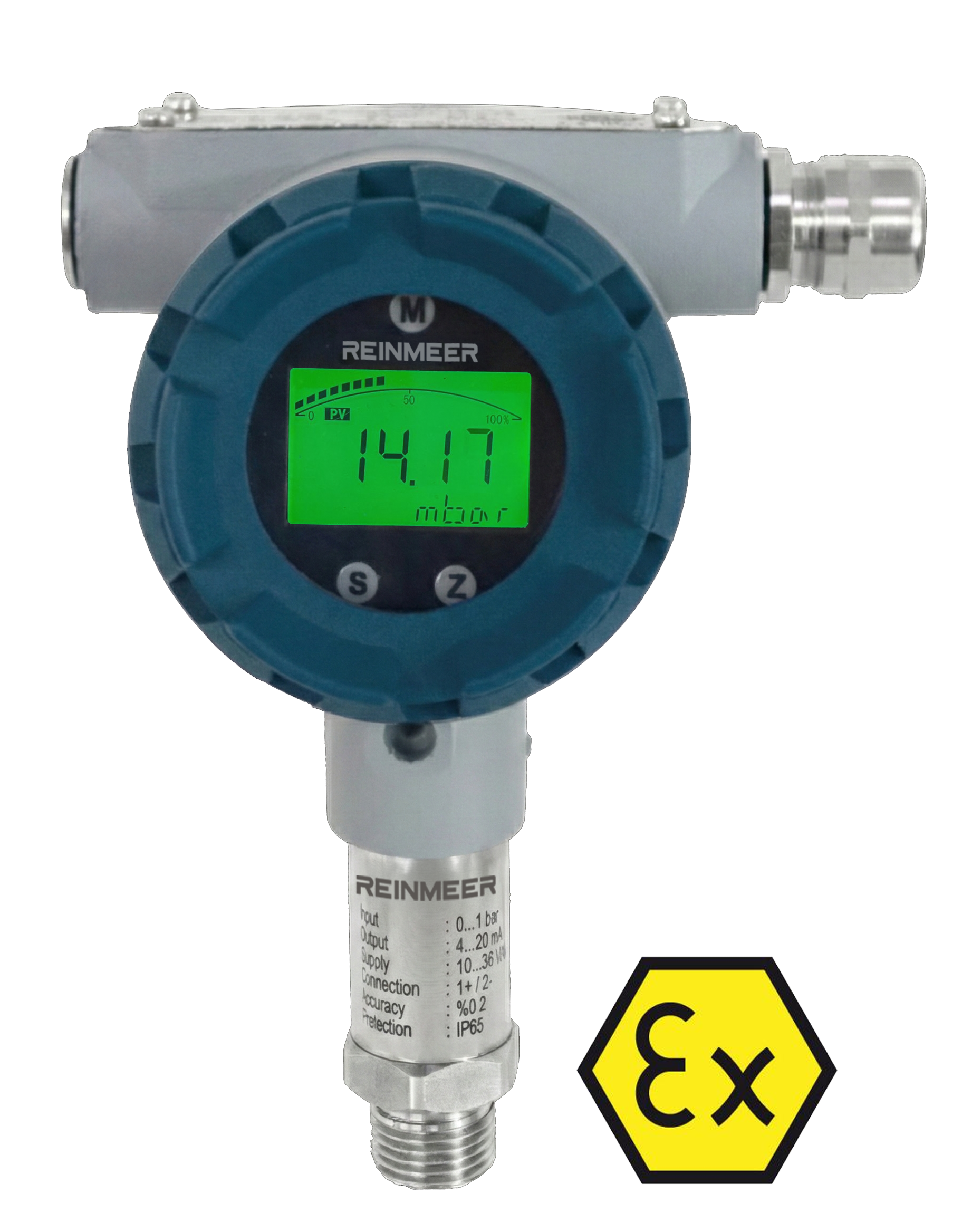

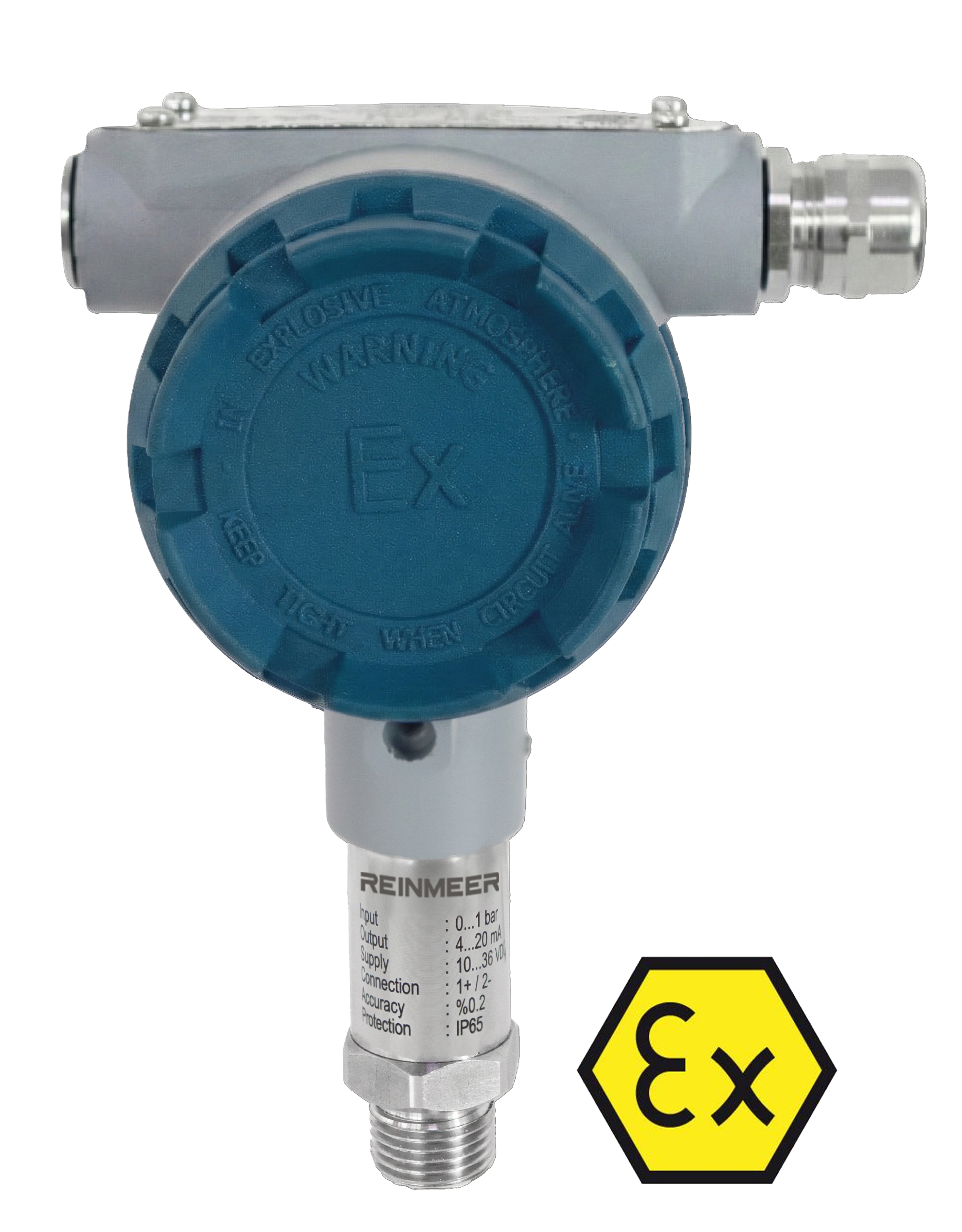

- Ex-Proof Pressure Transmitter
-
LEVEL
-
CONTROLLERS
-
MOISTURE
-
ANALYTICAL
-
TEMPERATURE
Pressure measurement is one of the most important parameters in industrial process control, equipment protection and plant safety. Reinmeer provides pressure transmitters, pressure transducers and pressure measurement instruments designed for applications where reliable monitoring of liquids, gases, steam, hydraulic systems, pneumatic lines, tanks, pipelines and process vessels is required.
In industrial environments, pressure data is used to control pumps and compressors, monitor tanks and pipelines, protect equipment from overload, verify operating conditions and provide measurement input to PLC, SCADA, controller or data acquisition systems. A stable pressure signal helps operators identify process deviations, detect abnormal operating conditions and maintain safer, more predictable operation.
Selecting the correct pressure instrument requires a careful review of both the process conditions and the installation environment. Pressure range, media compatibility, process temperature, pressure peaks, connection type, output signal, diaphragm material, accuracy class, display requirement, environmental protection and hazardous area classification should all be evaluated before choosing a device. A pressure transmitter suitable for clean water may not be suitable for corrosive chemicals, viscous media, high-temperature lines, vacuum applications or explosive atmospheres.
Reinmeer’s pressure portfolio includes standard pressure transmitters, differential pressure transmitters, stainless steel pressure transmitters, pressure transmitters with display, flush diaphragm pressure transmitters, flanged pressure transmitters, hydrostatic level sensors and ex-proof pressure transmitters. This range supports different process requirements, installation conditions and automation infrastructures while keeping the main focus on reliable industrial pressure measurement.
As a technical instrumentation brand, Reinmeer focuses on measurement reliability, practical integration and application-oriented product selection. Whether the requirement is pressure monitoring in a process line, tank-related measurement, differential pressure monitoring, pump protection or safe operation in demanding industrial environments, Reinmeer pressure instruments are developed to support stable measurement and dependable process control.
Pressure Transmitter vs Pressure Transducer
The terms pressure transmitter and pressure transducer are sometimes used interchangeably, but they can refer to different signal and integration concepts. A pressure transducer generally converts pressure into an electrical signal, often a millivolt or voltage signal. A pressure transmitter typically provides a conditioned and standardised output signal, most commonly 4–20 mA, which is suitable for industrial control systems and longer cable distances.
In process automation, pressure transmitters are often preferred because they are designed for stable signal transmission, better noise resistance and easier integration with PLC, SCADA and control systems. Pressure transducers may be used in machinery, test benches, OEM equipment and compact systems where voltage output is acceptable and cable distances are shorter.
The correct choice depends on the required output signal, supply voltage, control system input, accuracy requirement, installation environment and mechanical connection. When replacing an existing device, the new pressure instrument should match both the process connection and the electrical signal expected by the automation system. This avoids scaling errors, wiring issues and commissioning delays.
Choosing the right pressure transmitter starts with defining the pressure type and measurement range. The application may require gauge pressure, absolute pressure, vacuum pressure, compound pressure or differential pressure measurement. Selecting the correct range is important because an oversized range can reduce measurement resolution, while an undersized range can overload the sensor and shorten service life.
Media compatibility is one of the most important selection factors. The wetted parts of the transmitter must be suitable for the process medium, whether it is water, oil, air, gas, steam, chemical fluid, wastewater or a corrosive liquid. Process temperature, pressure peaks, vibration, pulsation, diaphragm material and connection type should also be reviewed before the instrument is selected.
For automation projects, output signal and electrical connection are also important. Many industrial pressure transmitters provide 4–20 mA analogue output, while some applications may require voltage output, digital communication, relay functions or local display. The selected transmitter should match the control panel, PLC input card, cable connection and commissioning requirements.
Installation conditions should also be evaluated. Outdoor locations, washdown areas, high vibration points, narrow pipe sections, hazardous areas or high-temperature lines may require specific housing materials, protection classes, process connections or accessories. Correct selection helps improve measurement stability and reduces the risk of installation problems during commissioning.
Pressure measurement is used across a wide range of industrial systems. In process lines, pressure transmitters help monitor operating conditions and provide feedback for automation and safety functions. In pump and compressor systems, pressure data can be used to protect equipment from overload, dry running, blockage or abnormal operating conditions.
In tanks and vessels, pressure measurement can support process monitoring, level-related measurement and safety supervision. In filter systems, pressure difference can indicate clogging, contamination or reduced flow performance. In hydraulic and pneumatic systems, pressure instruments help verify system performance and support safe operation.
Pressure measurement is also widely used in water treatment, chemical processing, energy systems, HVAC installations, boiler systems, cooling circuits, food and beverage production and general industrial automation. In each application, the measurement objective should be clearly defined: monitoring, control, alarm, protection, reporting or integration with a wider automation system.
Before selecting a pressure transmitter, pressure transducer or pressure measurement instrument, the basic process data should be defined clearly. This includes pressure range, pressure type, media type, process temperature, connection size, output signal, accuracy requirement, installation location and environmental conditions. Without this information, there is a risk of selecting a device that fits mechanically but does not perform correctly in the application.
It is also important to check whether the application requires special features such as local display, stainless steel body, flush diaphragm design, flanged connection, differential pressure measurement, hydrostatic level measurement or hazardous area suitability. For replacement projects, the existing instrument’s signal, thread type, measuring range and electrical connection should be verified before selecting an equivalent product.
A technically correct pressure instrument can reduce commissioning problems, improve measurement reliability and support long-term maintenance planning. Reinmeer supports application-oriented selection by offering different pressure measurement options for general industrial service, demanding process media, level-related pressure measurement, differential pressure monitoring and hazardous area applications.
For detailed information about Reinmeer pressure instruments and application suitability, please visit our contact page and get in touch with our team.
