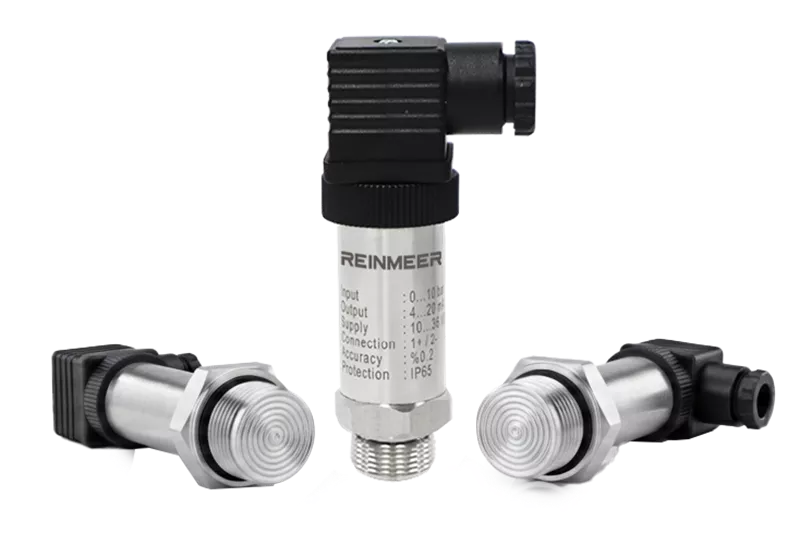

Flush diaphragm pressure transmitter is composed of a ceramic/silicone sensor placed in a stainless steel body or a piezoresistive measurement cell and an electronic card on a stainless steel 316L body.
The sensor design ensures reliability during temperature changes and overload.
| Features | Description |
| High Versatility | Offers over a billion possible configurations with measuring ranges from 0...0.4 to 0...1,600 bar. |
| Housing material | 304 stainless steel |
| Mechanical connection | R 1/2¨ (standard) |
| Robust Protection | Standard IP65 protection class, with optional IP68 and IP6K9K versions available |
| Premium Materials | Constructed with Stainless Steel 316L for the outer box and sensor. |
| Extreme temperatures | -40° to +135°C |
| Output | 4–20 mA / 2-wire |
| Power supply | 12–30 VDC |
| Accuracy | ±0.5% |
