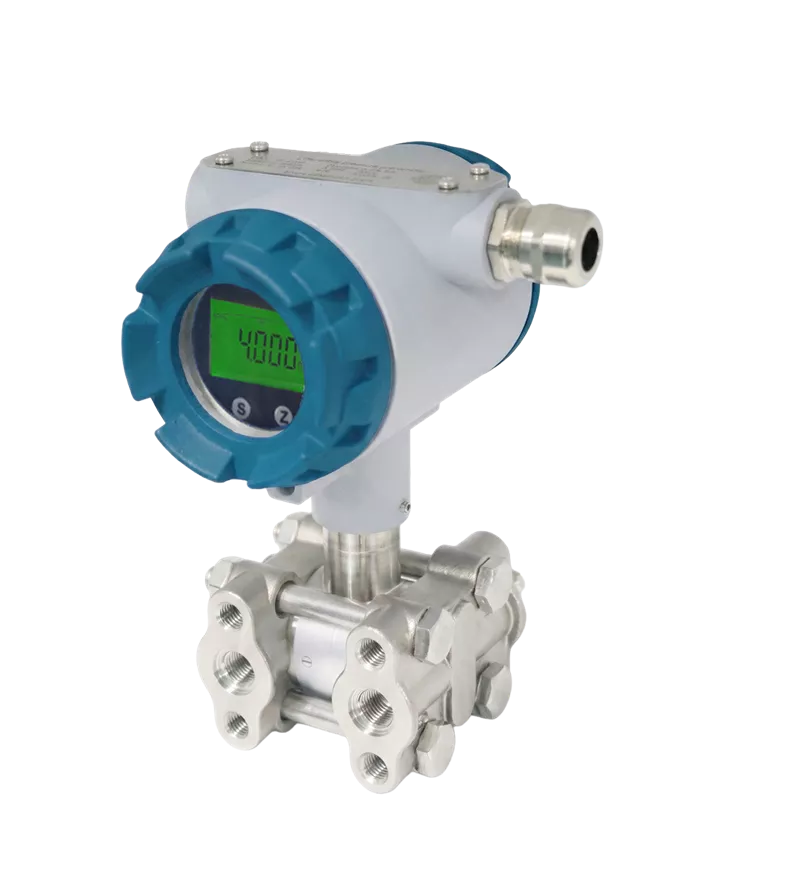

The RM-DP08 Series is a high-performance differential pressure transmitter designed for demanding industrial environments. Engineered for versatility, it offers a wide pressure range up to 400 bar with a remarkable ±0.2% full-scale accuracy.
| Features | Description |
| Pressure Range | -1...+400 bar |
| Accuracy | ±0.2% Full Scale |
| Process Temperature | -40...+80°C (Standard) -40...+250°C (Optional) |
| Process Connection | 1/4" NPT Female |
| Housing Material | 1.4404 (316L) Stainless Steel / Aluminum |
| Power Supply | 10...36 VDC |
| Output | 4..20 mA, 0...10 V |
| Protection Class | IP67 |
| ATEX Class | Zone 0, Zone 1, Zone 2 (II 1G Ex ia IIC T4 Ga) |
