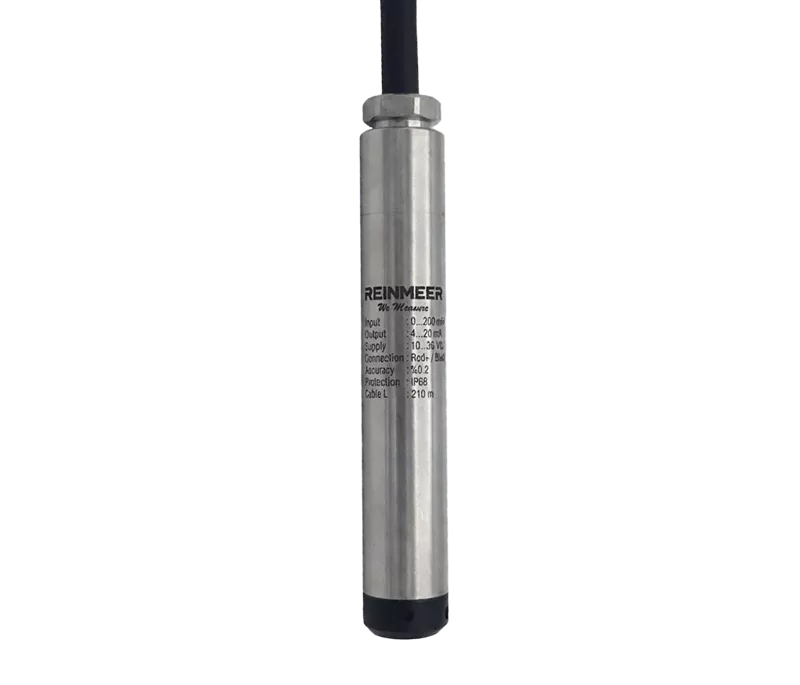

Reinmeer Hydrostatic Level Transmitters are designed to measure liquid levels with absolute accuracy even under the most
demanding industrial conditions. The measurement principle is based on hydrostatic pressure, which varies in direct proportion to the depth of the liquid...
|
Features |
Description |
|---|---|
|
Measurement Range |
0...500 mh20(0...50bar) |
|
Sensor Material |
1.4404 Stainless Steel 316L |
|
Cable Material |
PE /PUR |
|
Process Temperature |
-40°C...+80°C |
|
Sensor Diameter |
Ø 26 mm |
|
Supply Voltage |
10...36 V DC (volts direct current) |
|
Output Signal |
4-20 mA (2 telli) / 0-10 V / Modbus RTU (Options)/(Options) HART |
|
Protection Class |
IP68 |
|
|
|
