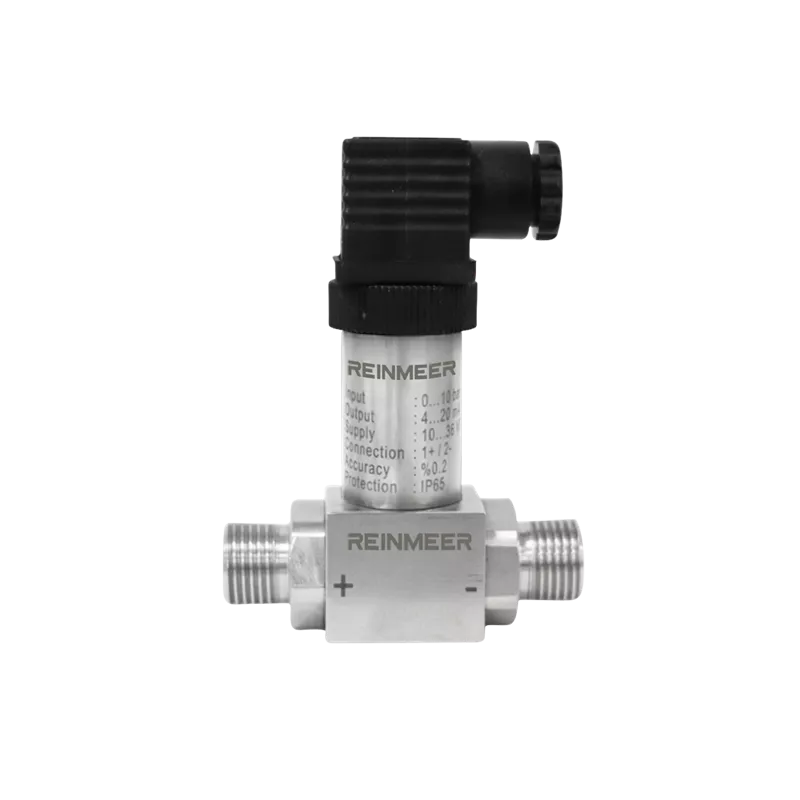

Reinmeer RM-DP01 is a reliable differential pressure transmitter designed to measure the pressure difference between two points in industrial processes with the highest precision...
|
Feature |
Description |
|---|---|
|
Measuring Principle |
Piezoresistive Measuring Cell |
|
Measurement Variables |
Relative and Absolute Pressure |
|
Measuring Range |
Max. 40 BAR |
|
Current Output |
4–20 mA / 4–20 mA + HART / Optional 0–10 V |
|
Load |
(U–10 V) / 0,02 A |
|
Accuracy |
Full Scale %0,2 |
|
Zero Point |
±0,2 mV/V |
|
Zero |
±0,02 % TS/K |
|
Operating Temperature |
-40° ~ 135°C |
| Ambient Temperature | -25° ~ 85°C |
| Protection Class | IP65 |
| Power Supply Voltage | 10…36 VDC |
| Sensor | Stainless Steel 316L, Ceramic |
| Process Connection | Stainless Steel 316L, Hastelloy C, other materials |
| O-Ring | Viton |
| Outer Box | Stainless Steel 316L |
| Terminal | Plastic |
| Process Connections | G1/4", G1/2" |
| Weight | Approximately 0,35 kg |
