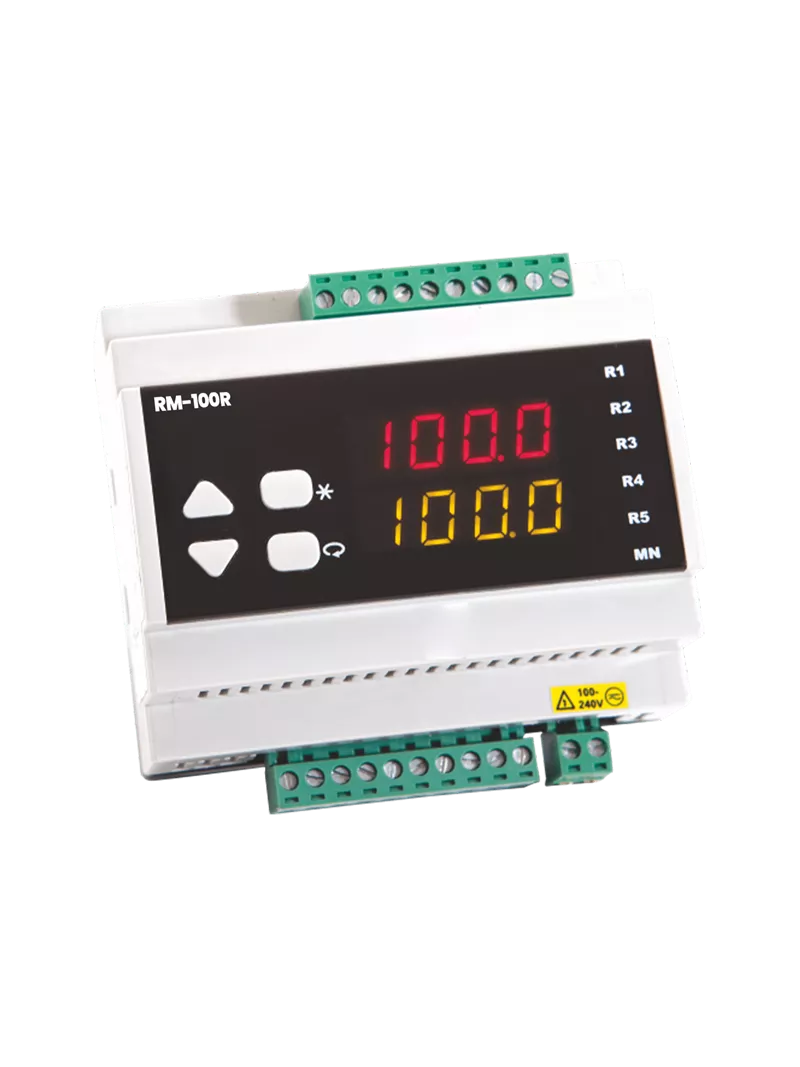

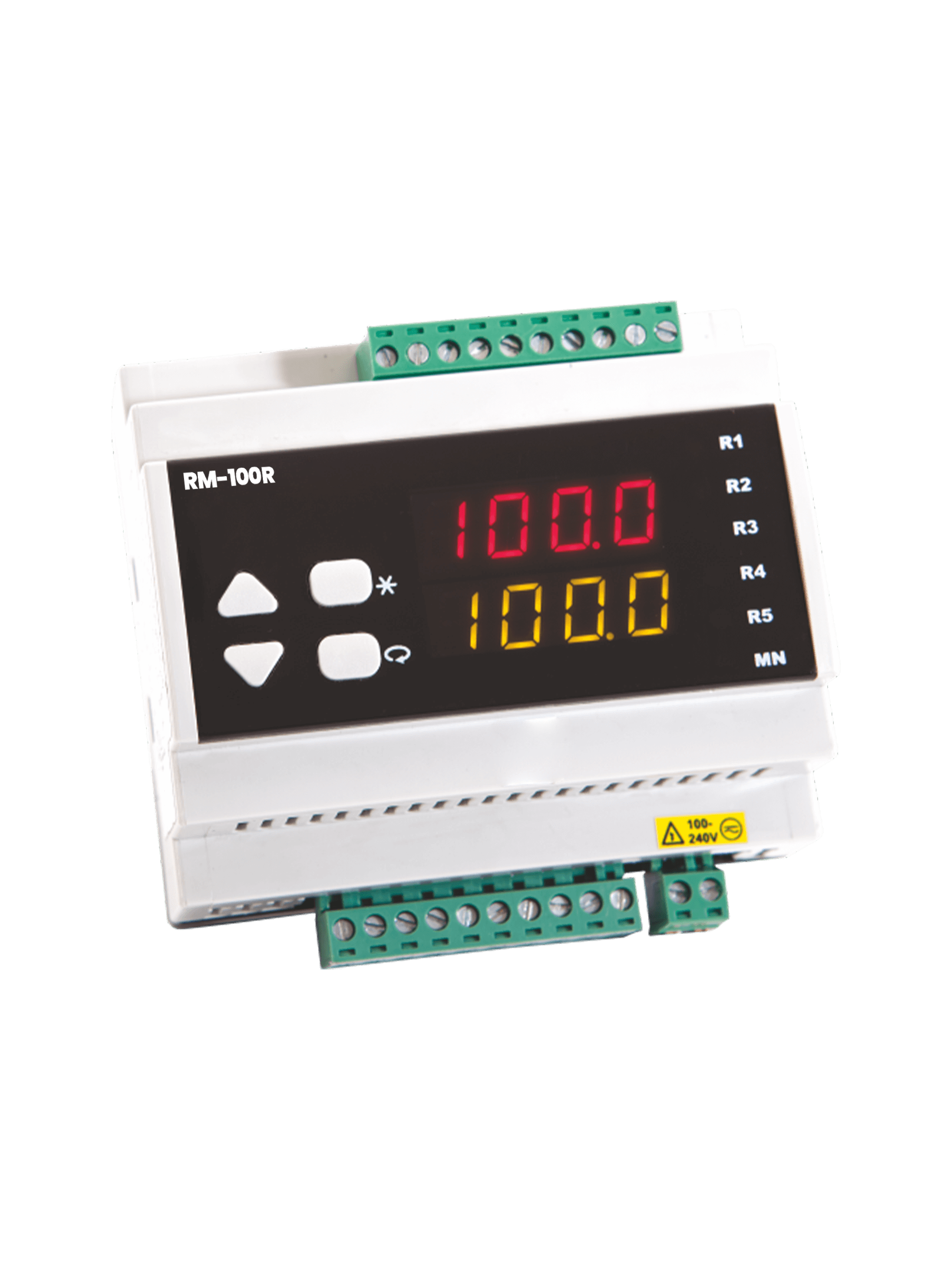

REINMEER RM100R Series controllers are advanced, fully modular process control instruments designed for the measurement, monitoring and control of a wide range of industrial process variables, including temperature, pressure, flow, speed, level, humidity, current, voltage, resistance and other physical parameters.

Thanks to their modular architecture, each module can be configured independently according to specific application requirements. The RM100R Series supports both ON/OFF and PID control, providing flexible and reliable solutions for various industrial automation and process control applications.

Designed in accordance with international standards, the RM100R Series combines high reliability, operational flexibility and user-friendly configuration with an ergonomic design. It is ideally suited for demanding industries such as Food & Beverage, Plastics, Iron & Steel, Chemical, Metallurgy, Cement, Ceramics, Petrochemical, Refineries, Glass Manufacturing and other industrial sectors.

With its robust design and versatile configuration options, the REINMEER RM100R Series delivers precise and dependable process monitoring and control for modern industrial applications.

Category: CONTROLLERS
Stock Code: RM - 100R
  • Product Features
  • Document
Features Description
Power Supply ( PS )

100-240 Vac/dc +10%-15% Universal 24 Vac/dc +10%-20% Universal

Power Consumption

6W / 10VA.
Universal Sensor Input (S1)
  • Thermocouple: B, E, J, K, L, N, R, S, T, U

  • Two-wire transmitter: 4-20mA

  • Resistance thermometer: Pt-100

  • Current: 0/4-20mA

  • Voltage: 0-5mV, 0/2-10V

Transmitter Supply (TX) 24Vdc (Isc = 30mA)
Analog Input Impedance
  • Thermocouple, mV: 10M?

  • Current: 10?

  • Voltage: 1M?

Analog Output (O1)
  • Current: 0/4-20mA (RL ? 500?)

  • Voltage: 0/2-10V (RL ? 1M?)

Relay Outputs (R1, R2, R3,R4)
  • Contact = 250 VAC 10 A
  • Logic Output = 24 Vdc 20 mA
Contact Life
  • No Load = 10,000,000 Switching
    250 V, 10 A Resistive Load = 1,000,000 Switching
Other Specifications
  • Memory: 100 years / 100,000 rewrites

  • Accuracy: ± 0.2%

  • Sampling time: 100 ms

  • Operating temperature: -10…+55°C

  • Storage temperature: -20…+65°C

  • Protection class: Front Panel = IP10
    Trunk = IP10

Dimensions
  • Width = 105 mm
  • Height = 110 mm
  • Depth = 58 mm
Weight 430 g
