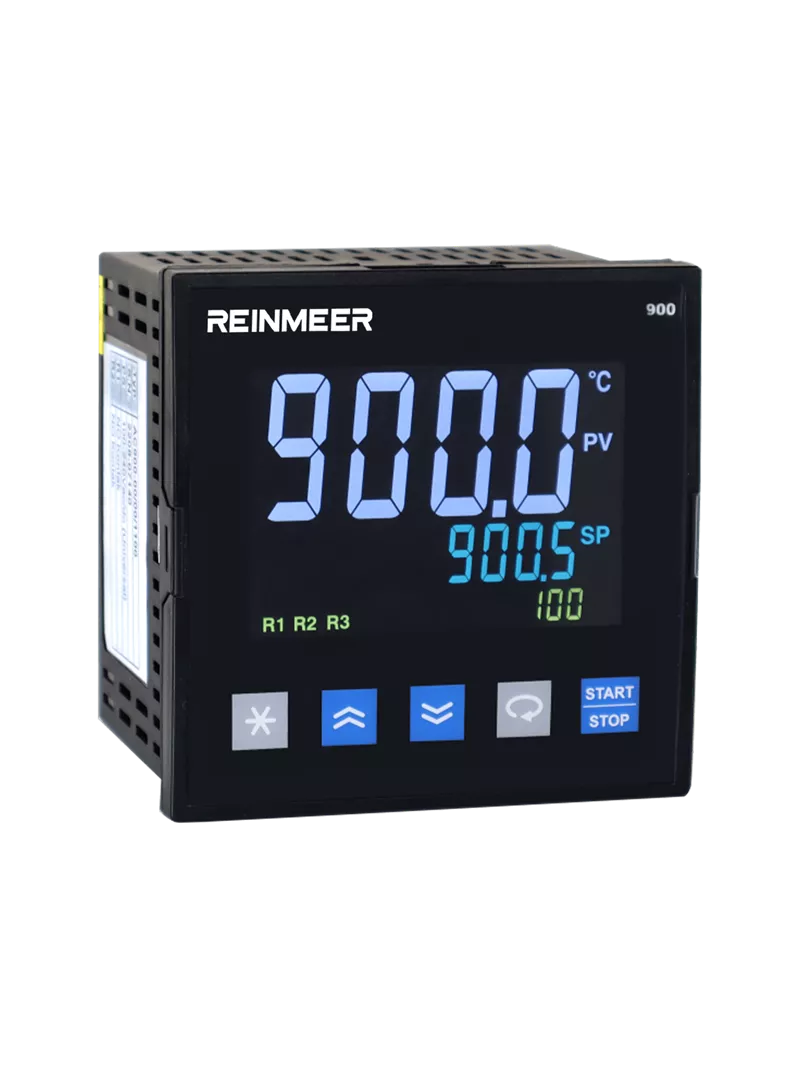

RM - OC901 Single Thermocouple Input Oven Control Devices

RM - OC901 Single Thermocouple Input Oven Control Devices
RM - OC901 Single Thermocouple Input Oven Control Devices

The REINMEER RM-OC901 series consists of 96x96 mm industrial oven control devices designed to manage temperature using a single thermocouple for time-dependent baking processes. These fully modular units feature On/Off or PID temperature control capabilities, automatic or manual steam generation, and alarms that trigger at the end of a specified duration. Furthermore, they operate on a universal power supply of 100-240VAC/DC or 24V and are suitable for various industrial sectors, including food, plastics, and metallurgy

Category: CONTROLLERS
Stock Code: RM -OC901
  • Product Features
  • Document
Features Description
Supply Voltage (PS)

100-240 Vac/dc +10% -15%
24 Vac/dc +10% -20%

Power Consumption

 4W, 6VA
Universal Sensor Input (S1)

  • Thermocouple: B, E, J, K, L, N, R, S, T, U

  • Two-wire transmitter: 4-20mA

  • Resistance thermometer: Pt-100

  • Current: 0/4-20mA

  • Voltage: 0/2-10V (RL  1 M?)
Transmitter Supply (TX) 24Vdc (Isc = 30mA)
Analog Input Impedance

  • Thermocouple, mV: 10M?

  • Current: 10?

  • Voltage: 1M?
Analog Output (O1)

  • Current: 0/4-20mA (RL ? 500?)

  • Voltage: 0/2-10V (RL ? 1M?)
Relay Outputs (R1, R2, R3,R4)
  • Contact ( R1, R2, R3, R4 ) : 250VAC 10A
  • Logic Output = 24Vdc 20mA
Contact Life
  • No load: 10,000,000 operations
  • 250V 10A resistive load: 1,000,000            operations
Other Specifications

  • Memory: 100 years / 100,000 rewrites

  • Accuracy: ± 0.2%

  • Sampling time: 100 ms

  • Operating temperature: -10…+55°C

  • Storage temperature: -20…+65°C

  • Protection class: Front panel IP54 / Rear panel IP20
Dimensions

  • Width: 96 mm

  • Height: 96 mm

  • Depth: 78.2 mm
Panel Cut-Out 92 ± 0.5 mm x 92 ± 0.5 mm
Weight 430 g




RM-OC901 Datasheet
