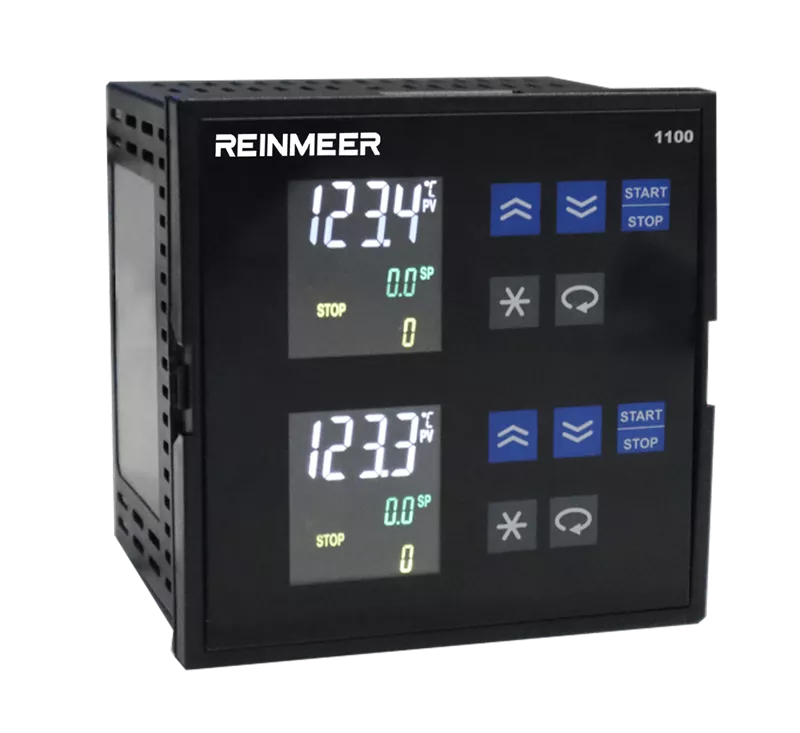

The REINMEER RM-PC1100 is a fully modular, 96x96 mm advanced step controller designed for measuring and controlling various process variables, such as temperature and pressure, in industrial environments. It features two independent LCD displays and two universal sensor inputs, offering comprehensive capabilities like open/closed loop control, PID control, and step programming for up to 100 programs and 800 steps. Operating on a universal 100-240V AC/DC or 24V power supply, these highly adaptable devices are widely used across diverse sectors, including the food, plastics, and metallurgy industries.
| Features | Description |
|---|---|
| Supply Voltage (PS) |
100-240 Vac/dc +10% -15% |
Power Consumption |
6W / 10VA. |
| Universal Sensor Input (S1) |
|
| Transmitter Supply (TX) | 24Vdc (Isc = 30mA) |
| Analog Input Impedance |
|
| Analog Output (O1) |
|
| Relay Outputs (R1, R2, R3,R4) |
|
| Contact Life |
|
| Other Specifications |
|
| Dimensions |
|
| Panel Cut-Out | 92 ± 0,5 mm x 92 ± 0,5 mm |
| Weight | 430 g |
