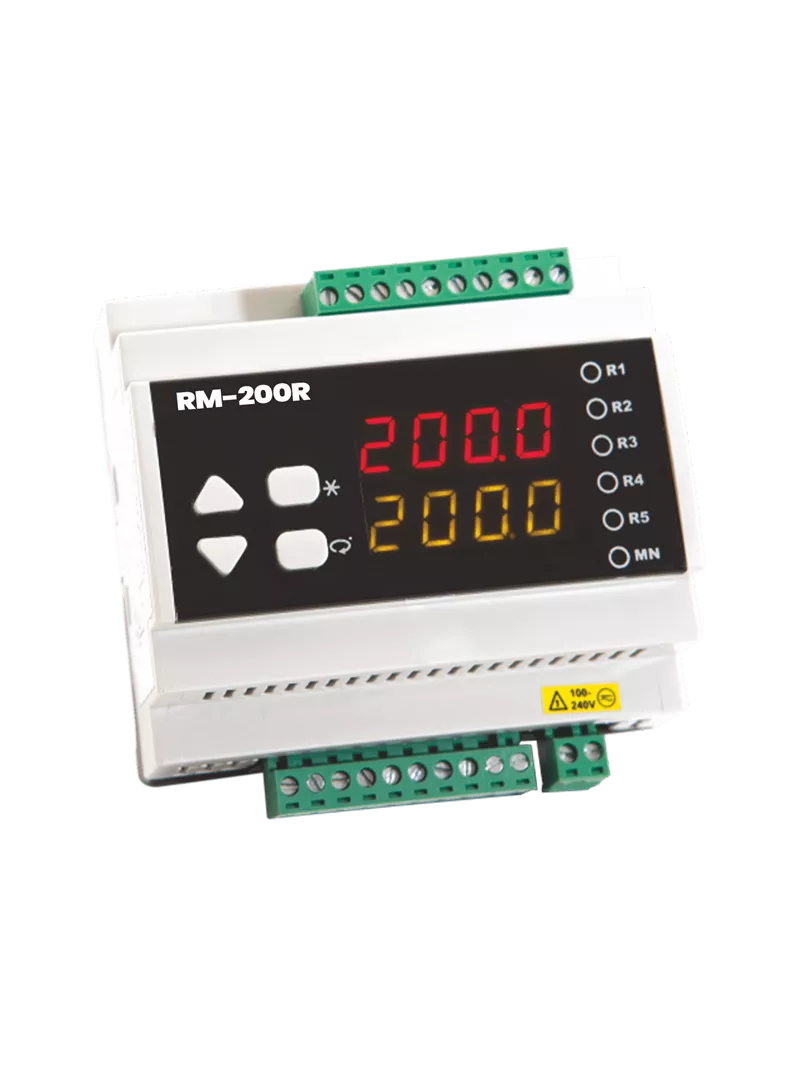

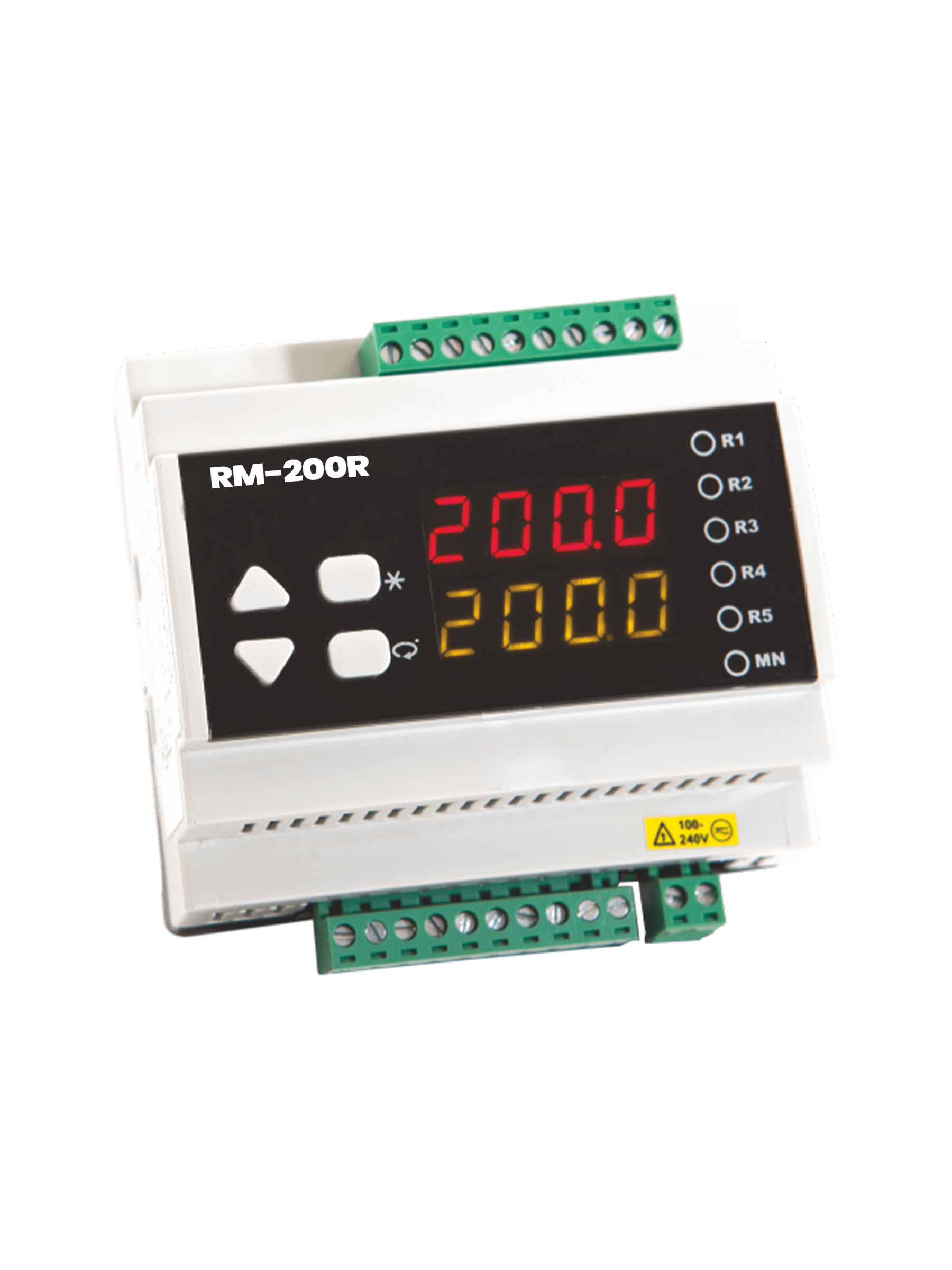

RM -200R Rail Assembly Control Devices

RM -200R Rail Assembly Control Devices
RM -200R Rail Assembly Control Devices

REINMEER RM-200R is carefully engineered to provide reliable and efficient solutions for a wide range of industrial applications. Manufactured in accordance with high quality standards and supported by advanced technology, the RM-200R stands out with its high performance, robust construction, and long-term operational reliability.

Category: CONTROLLERS
Stock Code: RM - 200R
  • Product Features
  • Document
Features Description
Power Supply ( PS )

100-240 Vac/dc +10%-15% Universal 24 Vac/dc +10%-20% Universal

Power Consumption

 6W / 10VA.
Universal Sensor Input (S1)

  • Thermocouple: B, E, J, K, L, N, R, S, T, U

  • Two-wire transmitter: 4-20mA

  • Resistance thermometer: Pt-100

  • Current: 0/4-20mA

  • Voltage: 0-5mV, 0/2-10V
Transmitter Supply (TX) 24Vdc (Isc = 30mA)
Analog Input Impedance

  • Thermocouple, mV: 10M?

  • Current: 10?

  • Voltage: 1M?
Analog Output (O1)

  • Current: 0/4-20mA (RL ? 500?)

  • Voltage: 0/2-10V (RL ? 1M?)
Relay Outputs (R1, R2, R3,R4)
  • Contact = 250 VAC 10 A
  • Logic Output = 24 Vdc 20 mA
Contact Life
  • No Load = 10,000,000 Switching
    250 V, 10 A Resistive Load = 1,000,000 Switching
Other Specifications

  • Memory: 100 years / 100,000 rewrites

  • Accuracy: ± 0.2%

  • Sampling time: 100 ms

  • Operating temperature: -10…+55°C

  • Storage temperature: -20…+65°C

  • Protection class: Front Panel = IP10
    Trunk = IP10
Dimensions
  • Width = 105 mm
  • Height = 110 mm
  • Depth = 58 mm
Weight 430 g




RM-200R Datasheet.EN

RM-200R User Manuel-PDF
