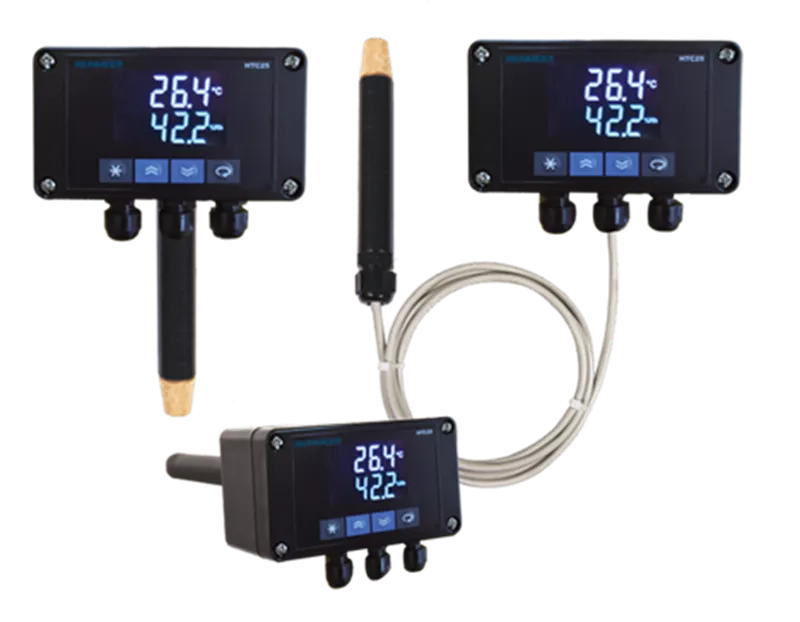

HTC25 Series devices are electronic devices that allow relative humidity and temperature information in industrial environments to be converted into a standard analog signal and sent to another system. During the design phase, compliance with international standards, reliability, and ease of use were prioritized.
|
Features |
|
|---|---|
|
Supply Voltage (PS) |
100-240V AC/DC (+10% / -15%) or |
|
Power Consumption |
-4W, 6VA |
|
Measurement Range |
Temperature: -40...+120°C / |
|
Analog Outputs |
Current: 0/4-20mA (RL > 500 ?) / |
|
Solid-State Relay Outputs |
250Vac, 80mA, NO Contact |
|
Resolution |
Temperature: 0.1°C / Relative Humidity: 0.1%Rh |
|
Accuracy (Temperature) |
+/-1°C (-20°C...+70°C), +/-2°C (-40°C...+120°C) |
|
Accuracy (Relative Humidity) |
+/-2%Rh (10%Rh...90%Rh), |
| Repeatability | Temperature: +/-0.1°C / Relative Humidity: +/-0.1%Rh |
| Sampling Period | 100 ms |
| Ambient Temperature | Device: -10°C...+60°C / Sensor: -40°C...+120°C |
| Storage Temperature | -20°C...+70°C |
| Memory | 100 Years, 1,000,000 Refreshes |
| Weight | 220gr |
|
|
