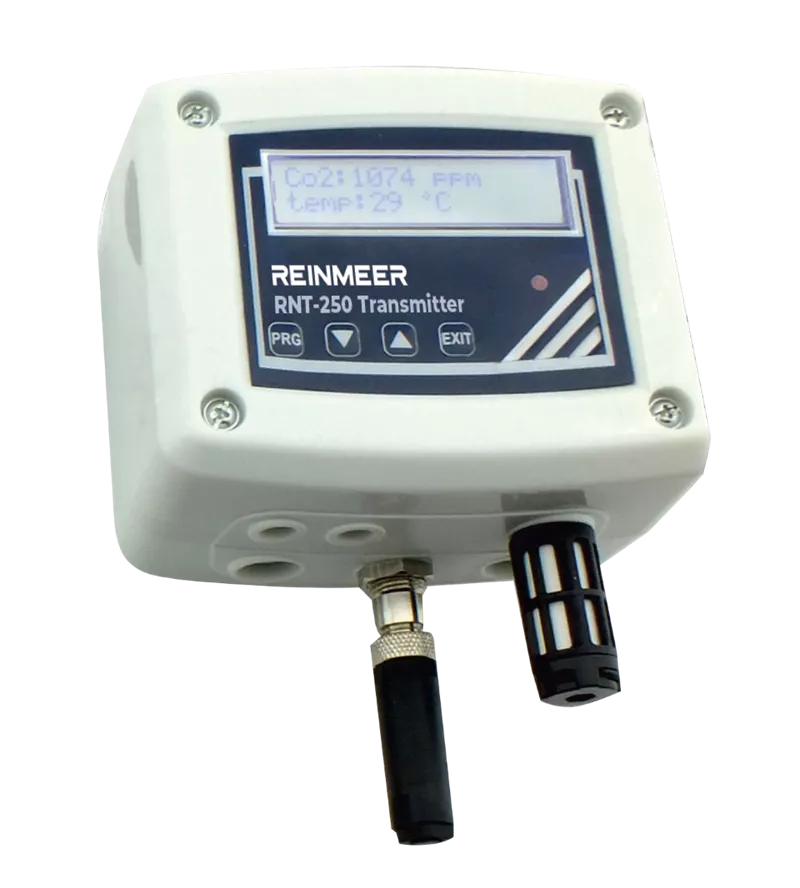

The Reinmeer RM-RNT250 is an advanced, high-precision transmitter specifically engineered to simultaneously monitor ambient temperature, relative humidity, and carbon dioxide (CO2) levels.Equipped with a highly reliable NDIR CO2 module, this device ensures accurate and stable measurements over a 10-year service life, making it ideal for continuous environmental tracking. It seamlessly integrates into existing building automation and industrial control systems through its user-scalable analog outputs and RS485 Modbus RTU communication protocol.
|
Features |
|
|---|---|
|
Carbon Dioxide (CO2) |
NDIR module. 0...5000 ppm range, 1% accuracy, 0.1 ppm resolution, and 10 years of service life. |
|
Temperature Measurement |
-40…+120 °C range, ± 0.3 °C accuracy, ± 0.1 °C resolution. (Can be read in Celsius or Fahrenheit) |
|
Humidity Measurement |
0-100 %rH range, ± 2% accuracy, ± 0.1% resolution |
|
Analog Outputs |
4…20mA / 0…20mA / 0…10V (User-scalable current and voltage). |
|
Communication |
RS485 Modbus RTU (1200-115200 baud rate range). All device parameters can be read via this protoc |
|
Relay and Warning System |
1 unit 220V 3A AC relay. Warnings can be assigned to the desired parameter; includes a built-in |
|
Display and Operation |
2x16 Cog LCD Screen and 4 control buttons for easy device menu management |
|
Power Supply and |
Operates on 10-32V DC or 12-32V AC; maximum power consumption is 2.8W. |
|
|
