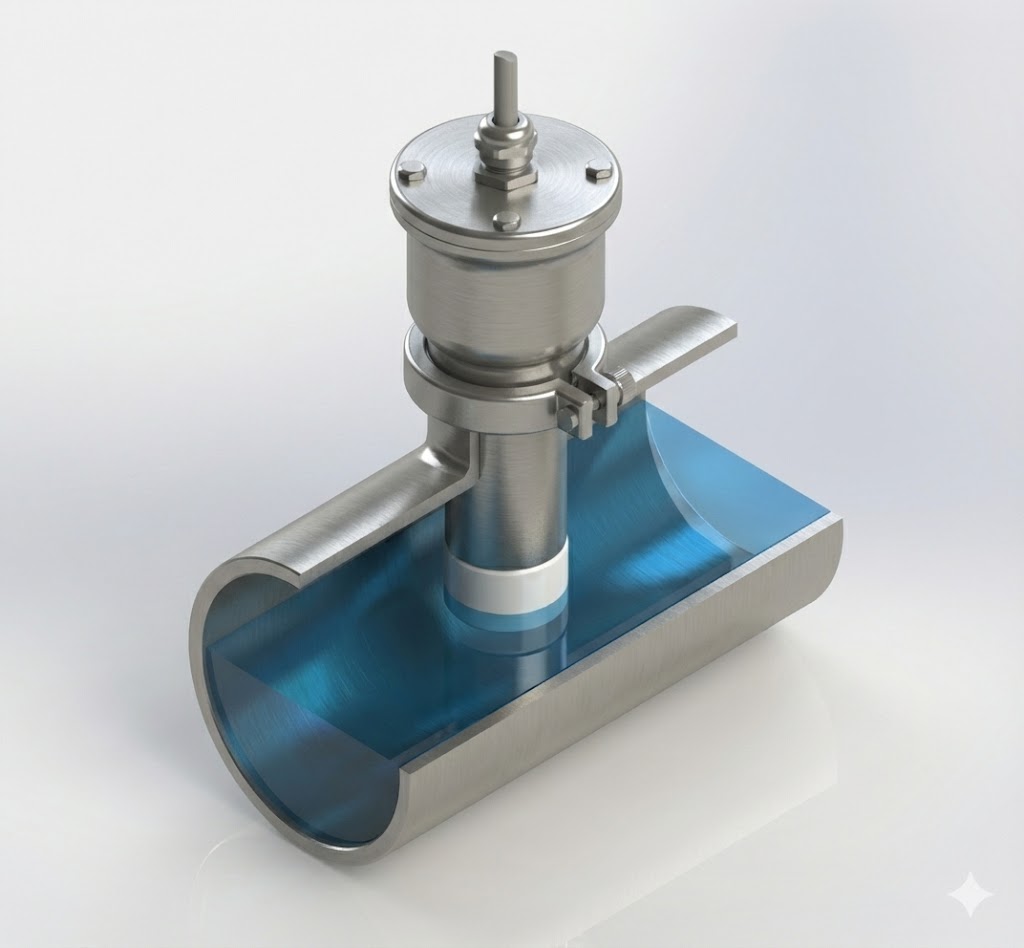

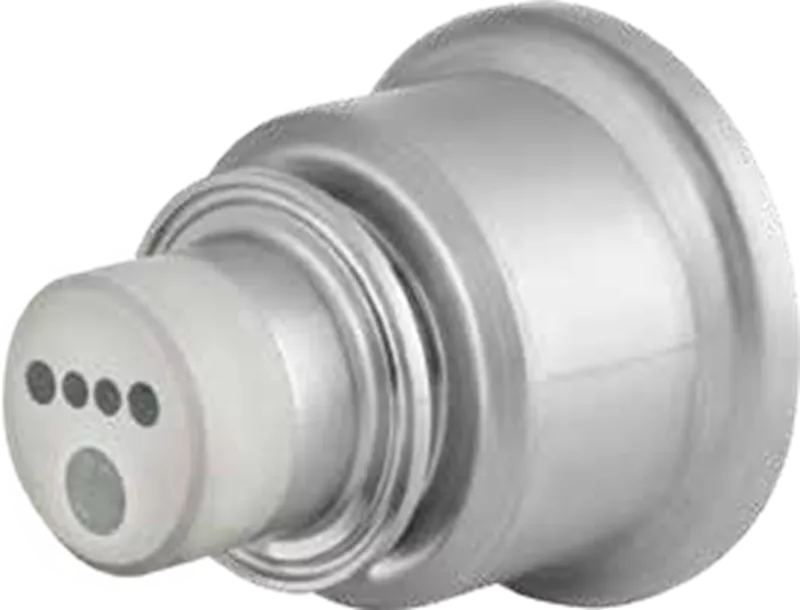

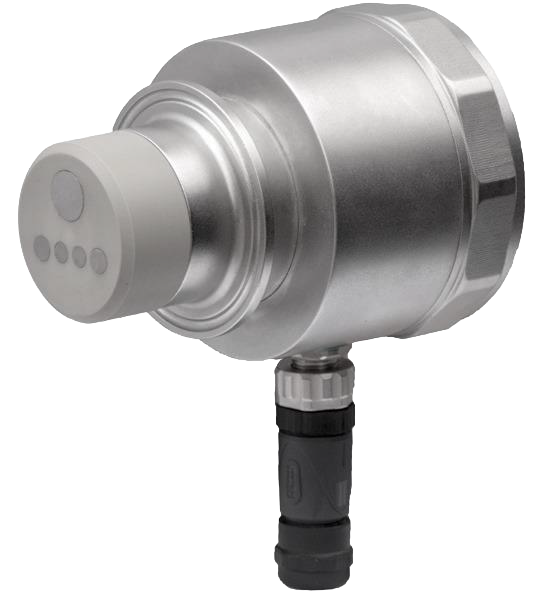

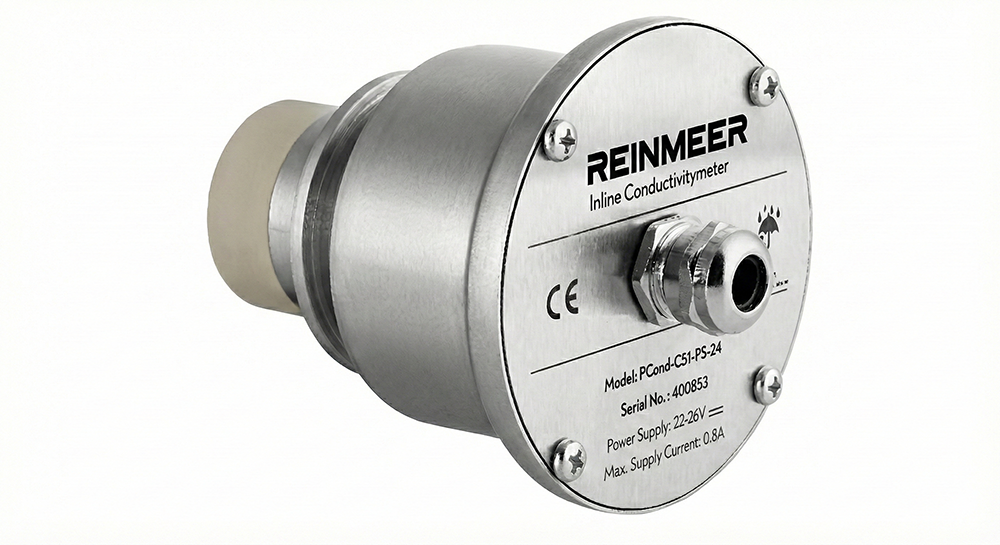

RM-PTCond Inline Conductivity Meter
PTCond is a uniquely designed industrial-grade inline conductivity sensor that offers greatly improved range, accuracy and stability with anti-interference capabilities.
|
Features |
Description |
|
|---|---|---|
|
Measurement Parameters |
Mass Flow / Volumetric Flow |
|
| Tube Structure | Tube Structure | |
|
Tube Material |
Stainless Steel AISI 316L |
|
|
Mass Flow Accuracy |
0.1% |
|
|
Density Accuracy |
±0.00015 gr/cc |
|
| Processor | 32-bit ARM Microcontroller H7 Series, Cortex M7 | |
| Display | 320 * 240 TFT Color LCD | |
| Communication | RS485/Modbus RTU | |
| Digital Output | Two Digital Output (24VDC) | |
| Analog Output | Two Analog current 4-20 mA | |
| Totalizer | Tri Clamp / CI150 Flange / ASME | |
| Sensor Protection | IP67 | |
| Transmitter Protection | IP68 | |
| Operational Temperature | Up to 150°C | |
| Input Power Supply | 24VDC / 500mA | |
Core Product Advantages
High-Temperature Solid-Containing Expert: Optimized for high-temperature solid-containing applications such
as dust-containing white oil, with temperature resistance up to 250°C
Dual-Parameter Output: Simultaneously outputs mass flow, density, and volumetric flow parameters
Wear-Resistant Design: Special materials and flow path design provide abrasion resistance and anti-clogging
protection
Wide Range Measurement: Broad turndown ratio covering 30~166.67L/min flow range
No Moving Parts: Low wear, maintenance-free, suitable for long-term continuous operation
High-Precision Measurement: Accuracy ±0.2%, repeatability 0.1%, ensuring measurement accuracy
Compact Structural Design: Micro-bend tube design occupies less space compared to other tube types,
enabling easier installation
