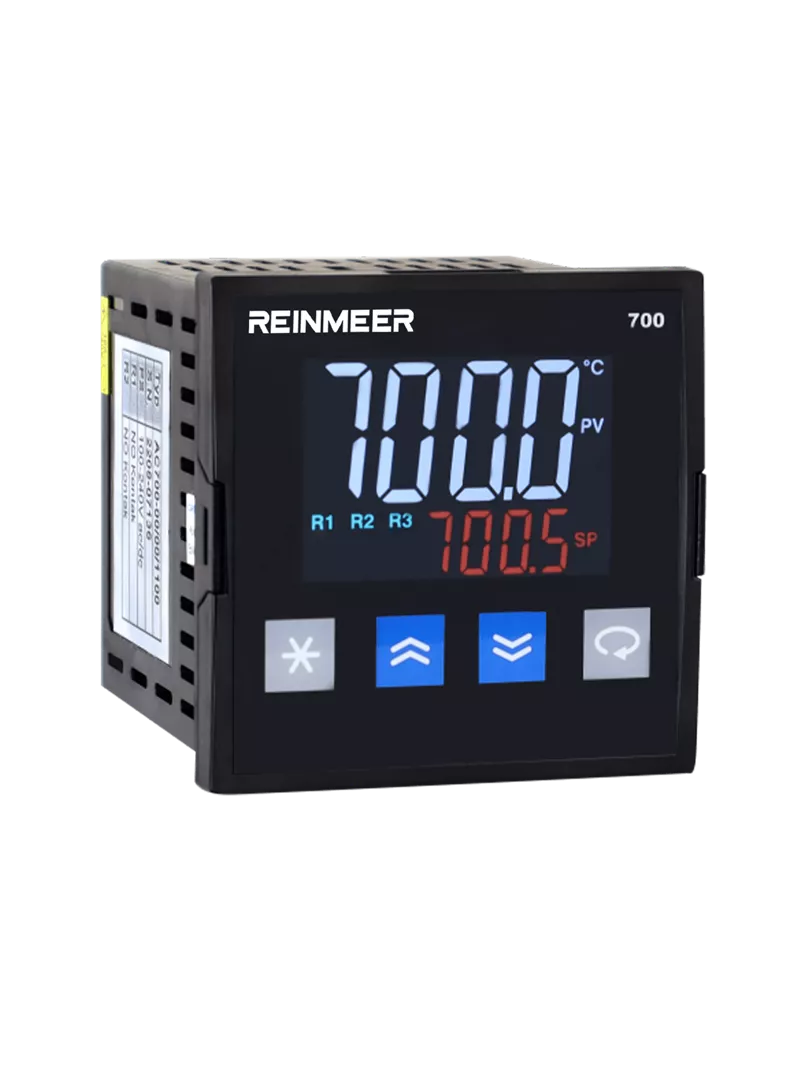

RM - SC700 Industrial Control Device

RM - SC700 Industrial Control Device
RM - SC700 Industrial Control Device

The REINMEER RM-SC700 is a modular industrial control device featuring a compact 72x72 mm design, built to measure and control process variables such as temperature, pressure, and humidity. It supports both ON/OFF and PID control types, offering auto-tuning capabilities alongside standard MODBUS RTU communication. Powered by a universal 100-240V AC/DC or 24V supply, its independently configurable modules make it highly adaptable for various sectors, including the food, plastics, and metallurgy industries.

Category: CONTROLLERS
Stock Code: RM - SC700
  • Product Features
  • Document
Features Description
Supply Voltage (PS)

100-240 Vac/dc +10% -15%
24 Vac/dc +10% -20%

Power Consumption

 5W, 8VA.
Universal Sensor Input (S1)

  • Thermocouple: B, E, J, K, L, N, R, S, T, U

  • Two-wire transmitter: 4-20mA

  • Resistance thermometer: Pt-100

  • Current: 0/4-20mA

  • Voltage: 0-5mV, 0/2-10V
Transmitter Supply (TX) 24Vdc (Isc = 30mA)
Analog Input Impedance

  • Thermocouple, mV: 10M?

  • Current: 10?

  • Voltage: 1M?
Analog Output (O1)

  • Current: 0/4-20mA (RL ? 500?)

  • Voltage: 0/2-10V (RL ? 1M?)
Relay Outputs (R1, R2, R3)
  • Contact (R1, R2, R3): 250VAC 10A
  • Logic Output = 24Vdc 20mA
Contact Life

  • No load: 10,000,000 operations

  • 250V 10A resistive load: 1,000,000 operations
Other Specifications

  • Memory: 100 years / 100,000 rewrites

  • Accuracy: ± 0.2%

  • Sampling time: 100 ms

  • Operating temperature: -10…+55°C

  • Storage temperature: -20…+65°C

  • Protection class: Front panel IP54 / Rear panel IP20
Dimensions

  • Width: 72 mm

  • Height: 72 mm

  • Depth: 78.2 mm
Panel Cut-Out 68 +/- 0.5 mm x 68 +/- 0.5 mm.
Weight 292 g




RM-SC700 Datasheet
