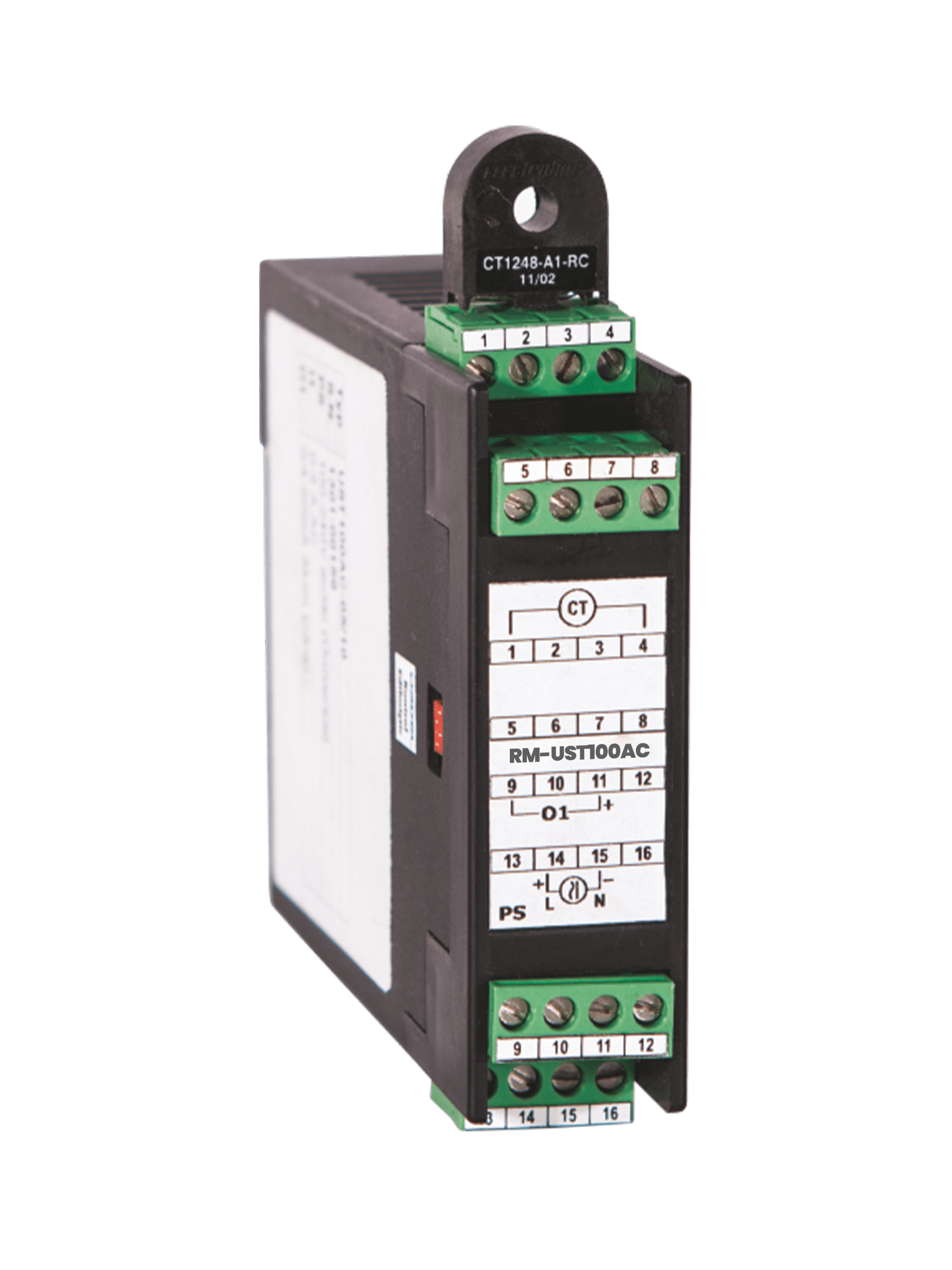

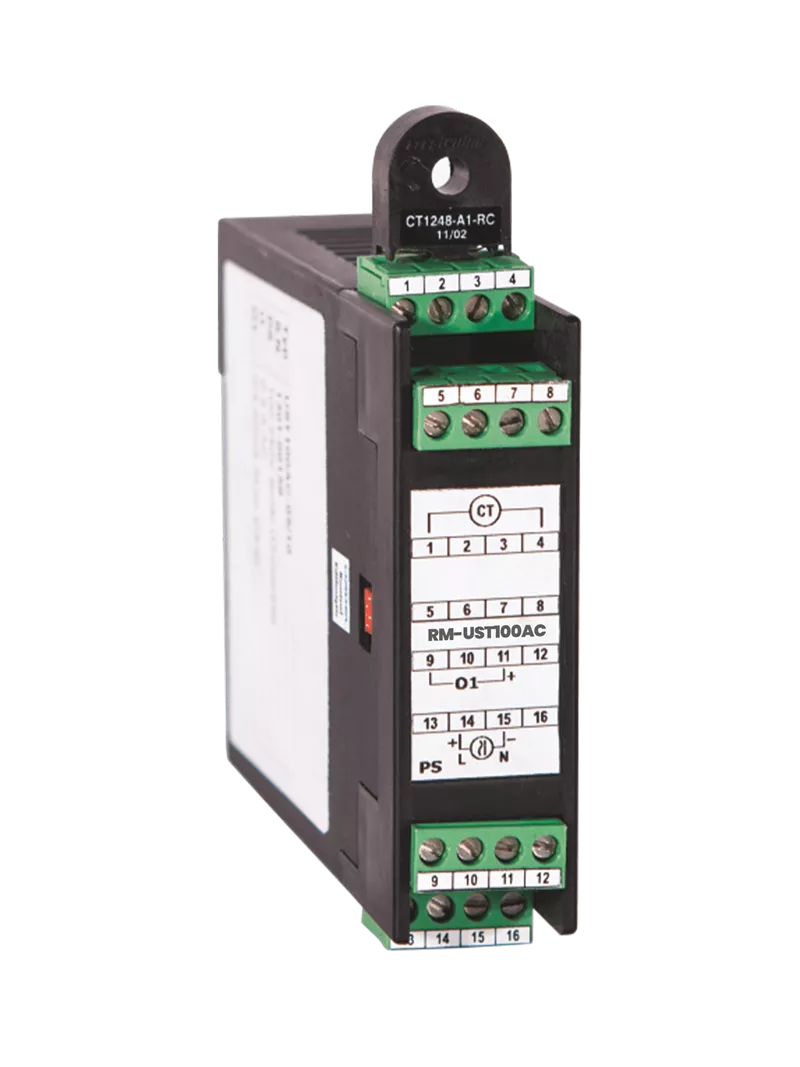

REINMEER RM-UST100AC – AC Signal Converter is designed to provide reliable and accurate conversion of AC electrical signals in a wide range of industrial applications. Manufactured using advanced technology and high-quality standards, the RM-UST100AC delivers stable performance, durability, and long-term operational reliability.With its user-friendly configuration and flexible integration capabilities, the RM-UST100AC can be easily incorporated into industrial automation, monitoring, and control systems. It enables dependable processing and conversion of AC signals, supporting efficient operation and accurate signal transmission throughout industrial processes.
| Technical Specifications | |
|---|---|
| Power Supply ( PS ) | 100-240 Vac/dc +10% -15% 24 Vac/dc +10% -20% |
| Power Consumption | 2W, 3VA |
| Analog Inputs ( I1 ) | 0-1 A ac 0-5 A ac |
| Analog Input Impedance | Current = 10? |
| Analog Output ( O1 ) | Current = 0/4-20mA ( RL?500? ) Voltage = 0/2-10V ( RL?1M? ) |
| Memory | 100 Years, 100.000 Renewals |
| Accuracy | +/- 0,2% |
| Sampling Time | 400 ms |
| Environment Temperature | Working = -10...+55°C Storage = -20...+65°C |
| Dimensions | Width = 25 mm Height = 91 mm Depth = 113 mm |
| Weight | 134 gr |
