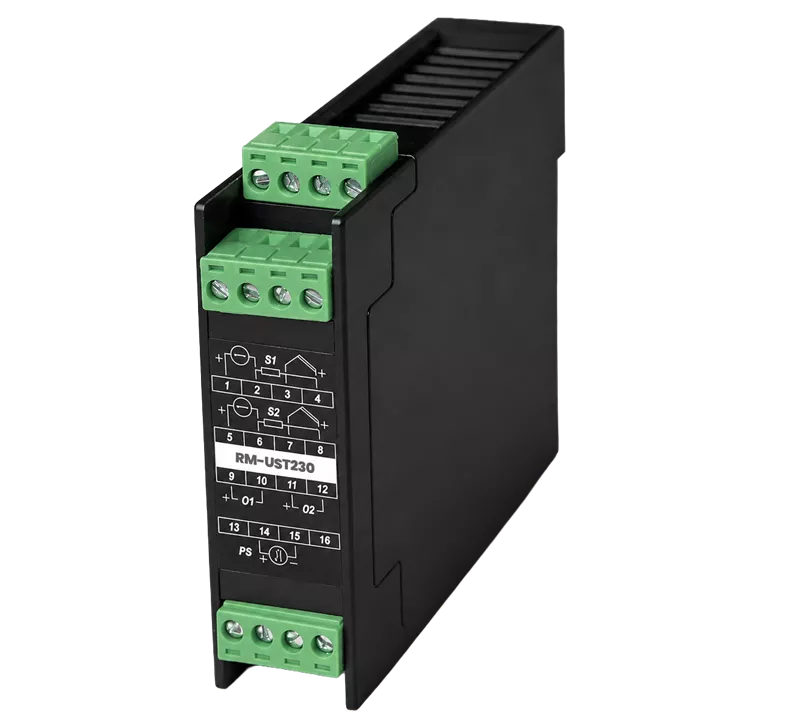

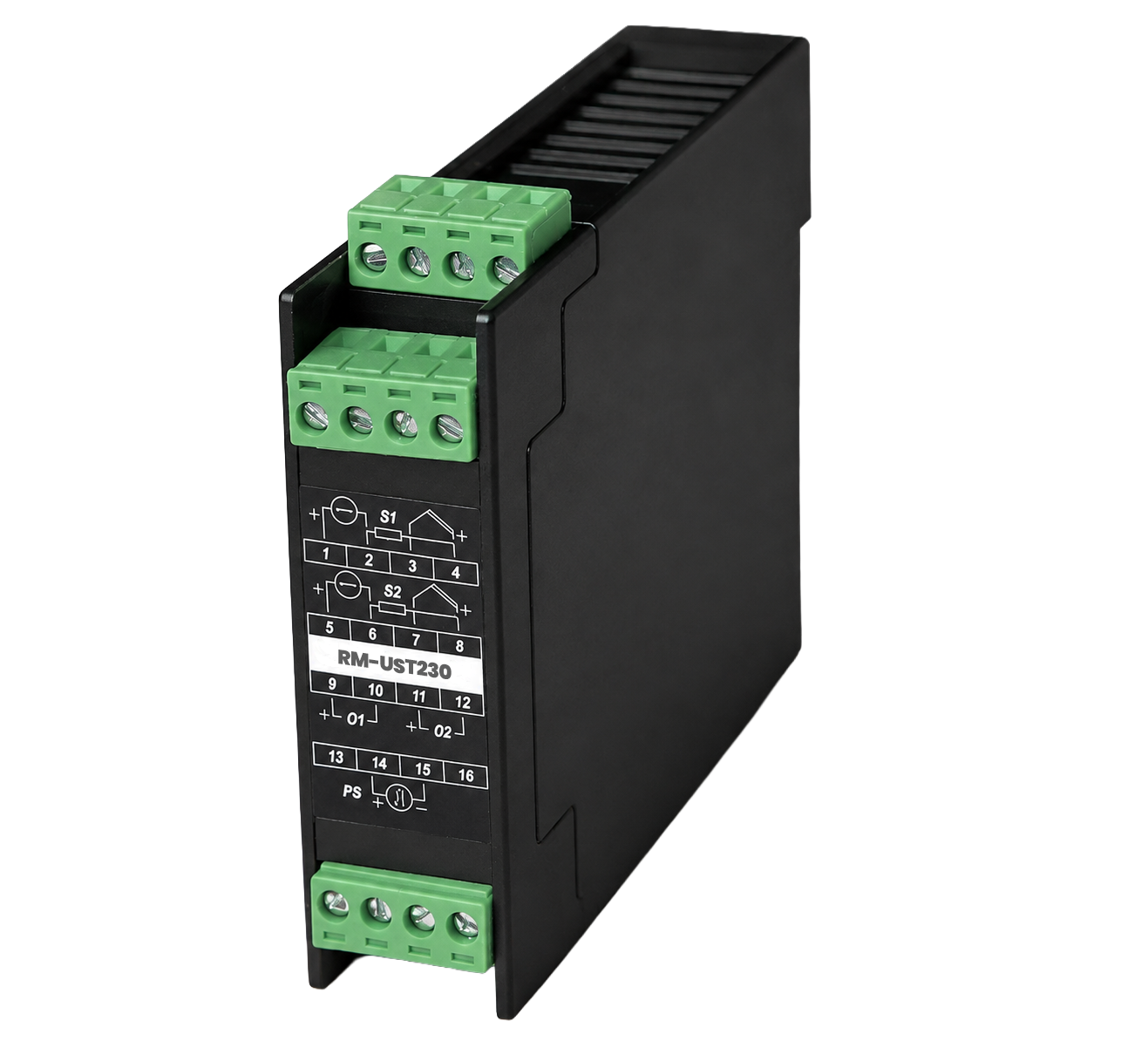

REINMEER RM-UST230 – Universal Analog Signal Converter is a microcontroller-based device designed to convert various industrial analog signals into standard analog outputs and perform arithmetic operations between signals. It features two universal analog inputs and two analog outputs, with all inputs and outputs galvanically isolated from the power supply and from each other. The RM-UST230 can be easily configured via computer using a compatible USB/UART converter, providing a flexible and reliable solution for industrial signal conversion and automation applications.
| RM-UST230 Technical Specifications | |
|---|---|
| Power Supply (PS) | 100–240 VAC/DC (+10% / -15%) 24 VAC/DC (+10% / -20%) |
| Power Consumption | 2 W, 3 VA |
| Analog Inputs (I1, I2) | Thermocouple: B, E, J, K, L, N, R, S, T, U Resistance Thermometer: Pt100 Current: 0/4–20 mA Voltage (mV): 0–50 mV |
| Input Type Options | TC, RT, mV, mA TC, RT, mV, V |
| Analog Input Impedance | Thermocouple / mV: 10 M? Current: 10 ? |
| Analog Outputs (O1, O2) | Current: 0/4–20 mA (RL ? 500 ?) Voltage: 0/2–10 V (RL ? 1 M?) |
| Sampling Time | 400 ms |
| Accuracy | ±0.2% |
| Memory | 100 Years, 100,000 Rewrites |
| Operating Temperature | -10...+55°C |
| Storage Temperature | -20...+65°C |
| Protection Class | IP20 |
| Dimensions | Width: 25 mm Height: 91 mm Depth: 113 mm |
| Weight | 134 g |
