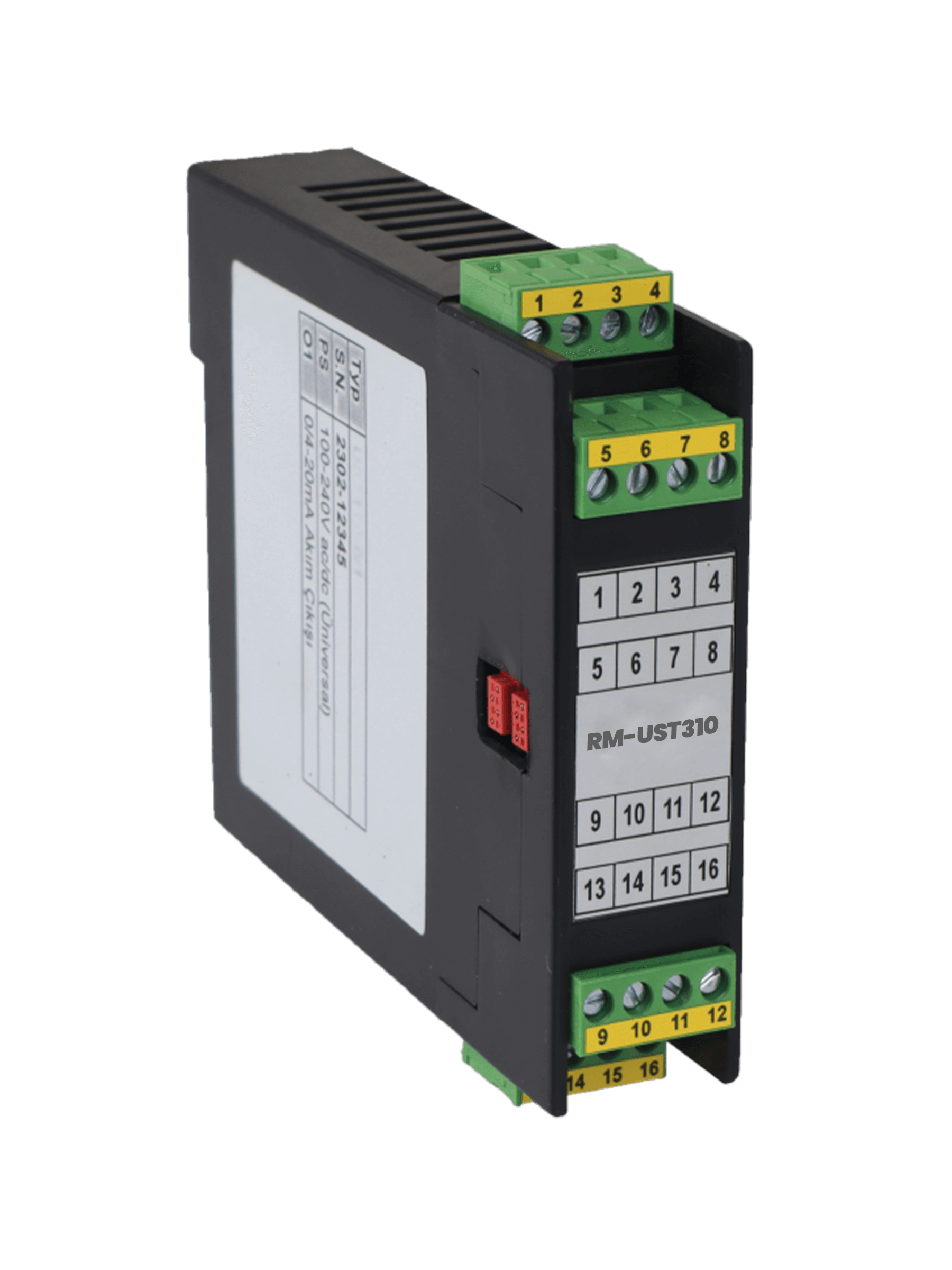

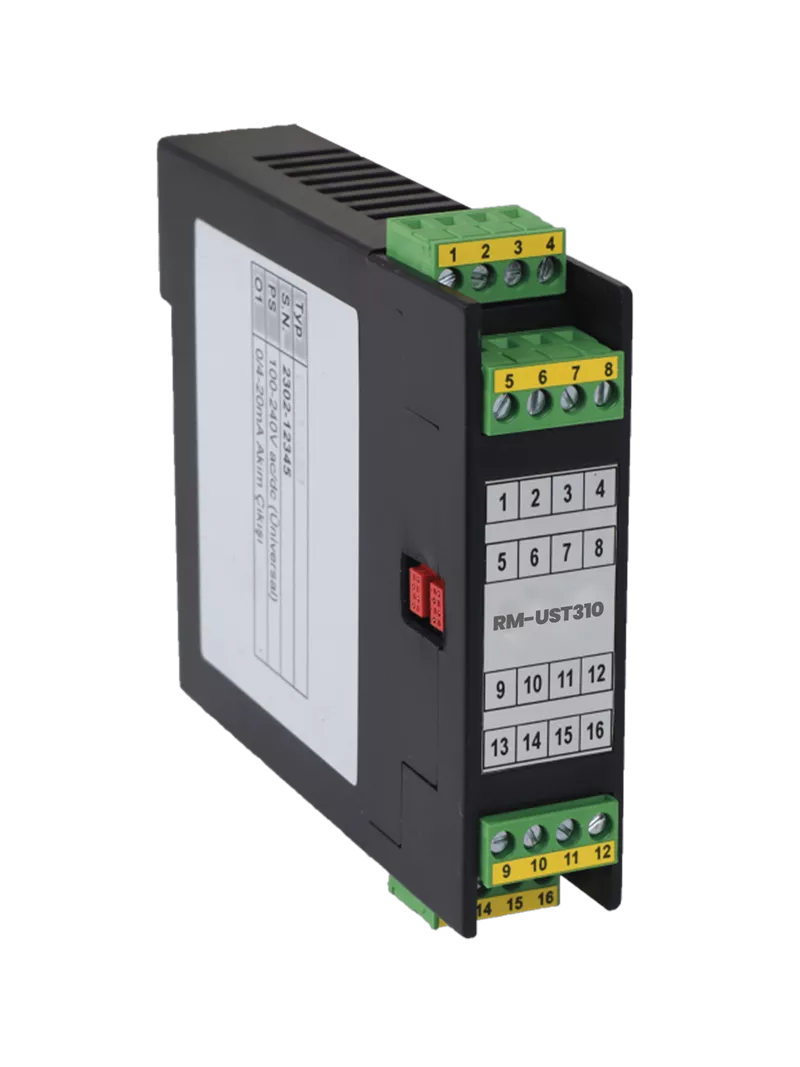

REINMEER RM-UST310 – Universal Signal Converter is designed to provide reliable and versatile signal conversion solutions for a wide range of industrial applications. Manufactured using advanced technology and high-quality standards, the RM-UST310 delivers stable performance, durability, and long-term operational reliability.
| Features | Description |
|---|---|
| Power Supply (PS) | 100–240 Vac/dc: +10% / -15% 15–32 Vac/dc: +10% / -20% |
| Power Consumption | 2W, 3VA |
| Universal Analog Input (I1) | Thermocouple: B, E, J, K, L, N, R, S, T, U Resistance Thermometer: PT100 Current: 0/4–20mA Voltage: 0–50mV, 0/2–10V |
| Analog Input Impedance | Thermocouple, mV: 10M? Current: 10? |
| Analog Output (O1) | Current: 0/4–20mA (RL ? 500?) Voltage: 0/2–10V (RL ? 1M?) |
| Memory | 100 Years, 100,000 Renewals |
| Accuracy | ±0.2% |
| Sampling Time | 400ms |
| Environment Temperature | Working: -10...+55°C Storage: -20...+65°C |
| Protection Class | IP20 |
| Dimensions | Width: 25mm Height: 91mm Depth: 113mm |
| Weight | 134gr |
