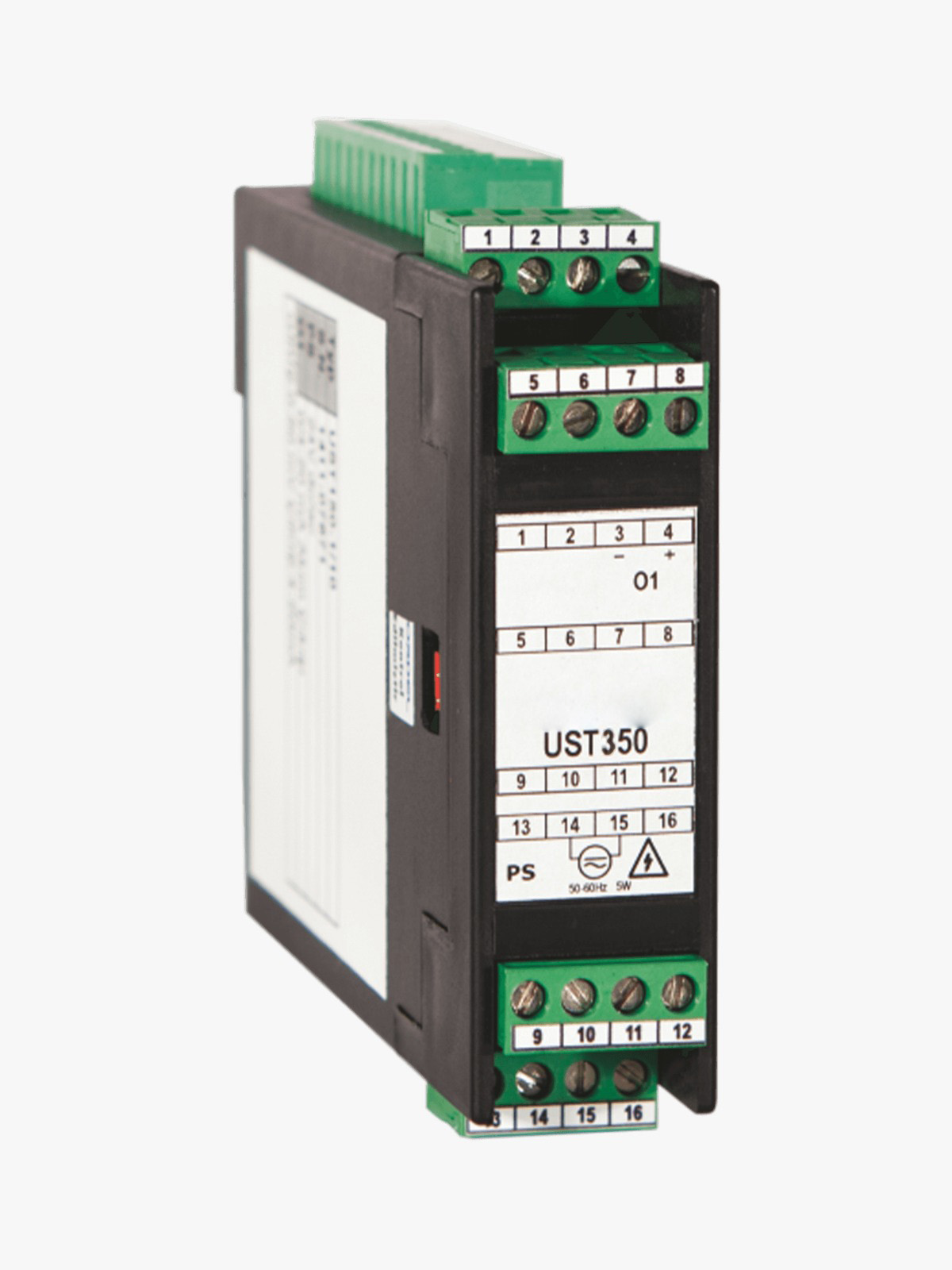

REINMEER RM-UST350 – Universal Signal Converter is designed to provide reliable and versatile signal conversion solutions for a wide range of industrial applications. Manufactured using advanced technology and high-quality standards, the RM-UST350 delivers stable performance, durability, and long-term operational reliability.
Technical Specifications
| Supply Voltage (PS) | 100-240 Vac/dc +10% -15% 24 Vac/dc +10% -20% |
| Power Consumption | 5W, 8VA |
| Analog Inputs (I1) | Thermocouple: B, E, J, K, L, N, R, S, T, U Resistance Thermometer: Pt-50, Pt-100, Pt-1000, Ni-100, Ni-120, Ni-200, Ni-1000, NiFe-604, NiFe-507 Current: 0/4-20mA Voltage: 0-50mV, 0/2-10V |
| Input Impedances | Thermocouple, mV: 10M? Current: 10? |
| Analog Output (O1) | Current: 0/4-20mA (RL ? 500?) Voltage: 0/2-10V (RL ? 1M?) |
| Memory | 100 Years, 100,000 Write Cycles |
| Accuracy | +/- 0.2% |
| Sampling Time | 100 ms |
| Ambient Temperature | Operation: -10...+55°C Storage: -20...+65°C |
| Device Dimensions | 113 x 112 x 25 mm |
