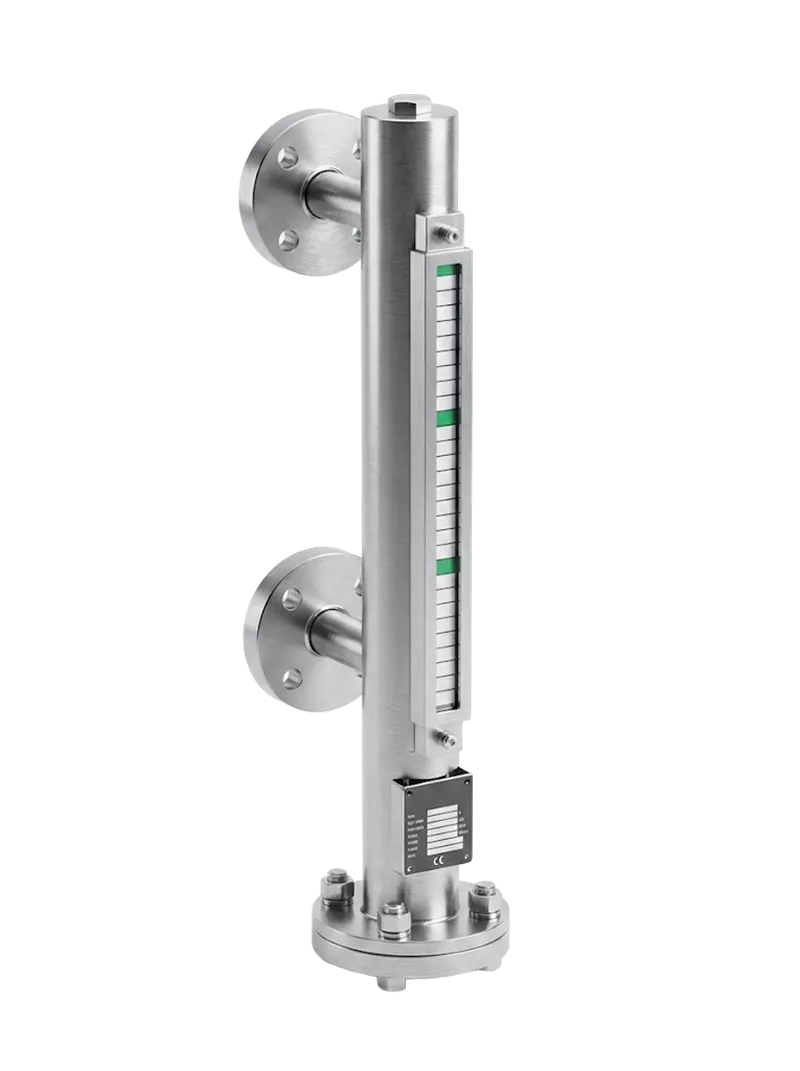

Magnetic Level Indicator
The Magnetic Level Indicator is a reliable and maintenance-free solution for continuous level indication in tanks containing liquids. It operates on the principle of magnetic coupling between a float inside the chamber and an external indicator, ensuring clear and accurate level visualization without direct contact with the process fluid.
|
Features |
Description |
|---|---|
|
Magnetic Display |
It is composed of sequential array of magnet sensitive flaps in the aluminium profile. |
| Top / Bottom / Side Flange |
DN 32 / PN 16, 304 St.St. Opt.316 St.St. , PVDF Ø 140 / PN 40 , 304 St.St. Opt.316 St.St. , PVDF Ø 195 / PN 100 , 304 St.St. Opt.316 St.St., PVDF |
| Body Material |
Ø 60.3 x 1,5 / 2 / 3 / 3,5 mm 304 St.St. Opt.316 St. St. Ø 63 x 3 mm, PVC, PVDF Ø 63 x 2 mm, Titanium |
| Seal Material | Klingrid Opt. PTFE and graphite |
| Side Pipe Material |
3/4" 304 Stainless Steel Opt.316 Stainless Steel / PVC, PVDF |
| Connection Flange |
DN 20 / PN 16, Carbon Steel Opt. 304 / 316 Stainless Steel / PVC / Titanium, PVDF |
| Drain Screw Material | 1/2" BSP |
| Bolt / Nut / Washer |
304 Stainless Steel / 316 Stainless Steel M12 x 45 mm / M16 x 70mm 304 St.St. |
| Optional |
Magnetic Contact Analog Output Scale Drain Valve Liquid Level Relay Local Digital Display Heating Jacket Special Design |
SAMPLE MODELS : RM- GLGp
| Models | RM- GLGp |
| Body | Ø 60.3 x 1.5 mm, 304 Stainless Steel |
| Display | Standard display RM- GLGp |
| Bottom Flange | DN 32, PN 16, 304 Stainless Steel |
| Process Connection | DN 20, PN 16, Coated Carbon Steel |
| Pressure | Max. 16 bar, Opt. 25 bar |
| Temperature | Max. 180 °C, Opt. 350 °C |
| Float Type |
M51, 1.10 g/cm³ |
