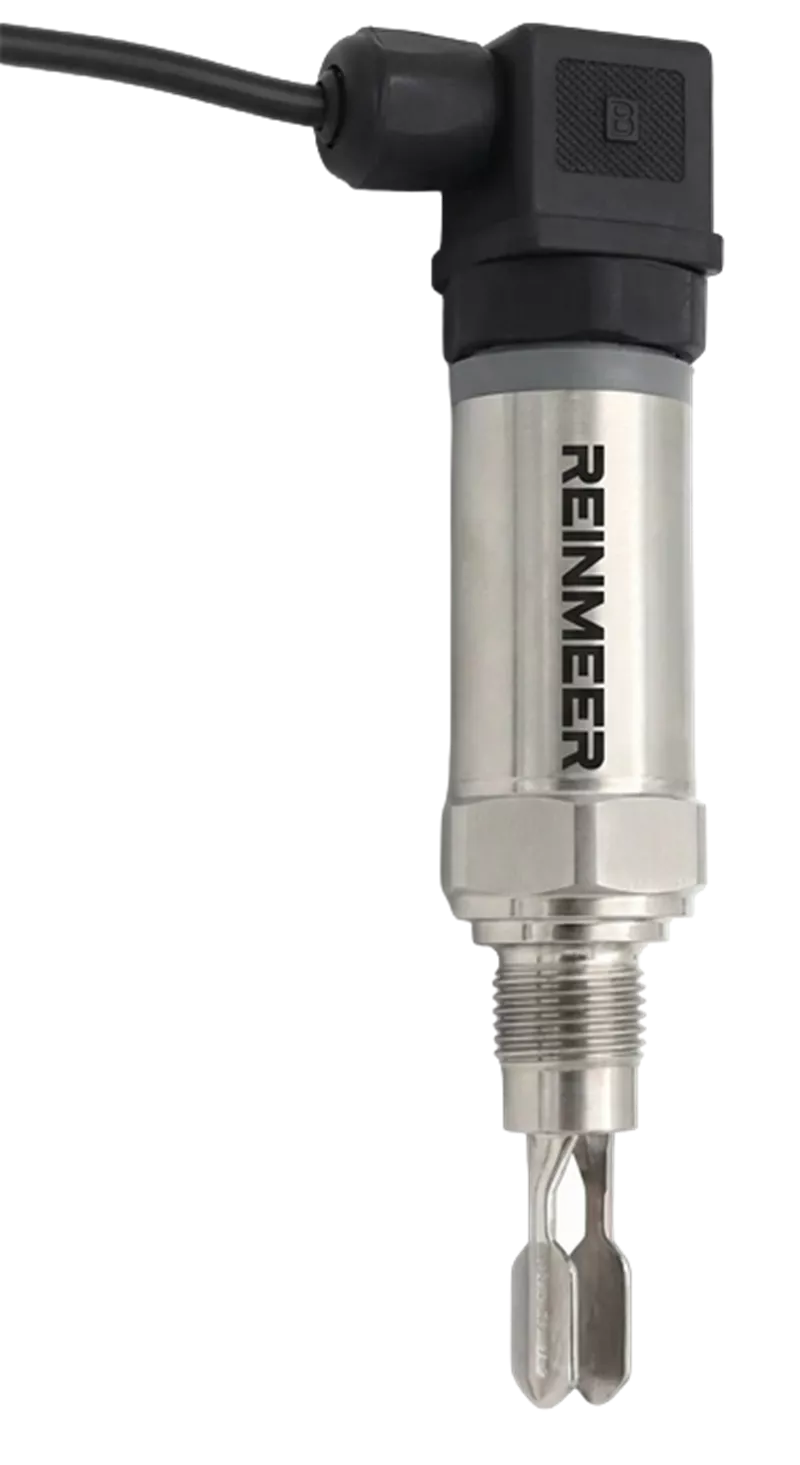

RM-PNP VIBRATING LEVEL SWITCH L:50MM, PNP
All liquids with a free-flowing viscosity up to 10,000 cP. Suitable for Horizontal and Vertical mounting. Minimum and maximum fail-safe area can be selected. Flow / No Flow Detection in pipelines.
|
Features |
Description |
|---|---|
|
Usage |
Solid and Liquid |
| Supply | 12-60 Vdc |
| Output | PNP DC |
| Output Limit | 250mA Max. Short Circuit Protected |
| Max. Viscosity | 10,000 cStokes |
| Ambient Temperature | -20...+60°C |
| Operating Temperature | -20...+80°C |
| Working Pressure | 15 Bar |
| Wet Parts | 316 Stainless Steel |
| Mechanical Connection | 1/2" BSP |
| LED | Green LED; Energy Indicator Red |
| LED | Alarm Indicator |
| Probe Length | 50mm |
