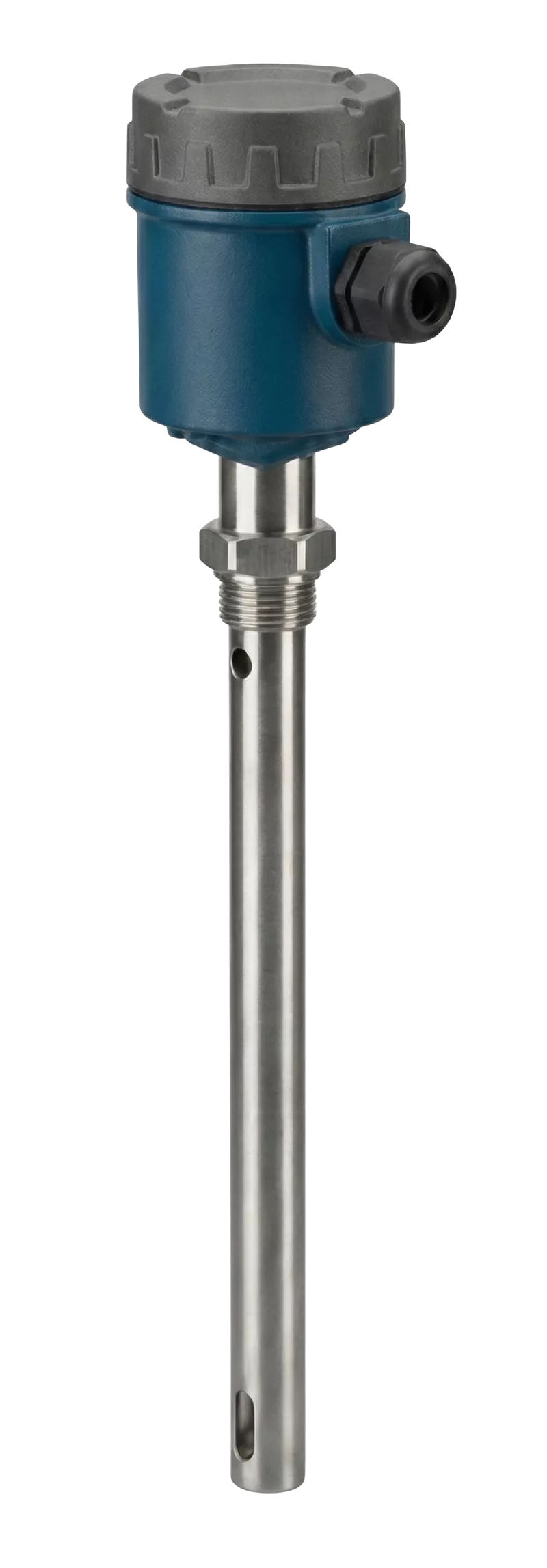

CAPACITIVE LEVEL TRANSMITTER
EGCAP level transmitters are capacitive level sensors used for level measurement in conductive liquids, low-conductivity liquids, liquids containing solid particles and powders, as well as adhesive and acidic/basic liquids.
|
Features |
Description |
|---|---|
|
Measured Material |
Conductive liquids / Low conductivity liquids / Solid particulate materials / Sticky and acidic/basic liquids |
|
Supply |
9-36 VDC |
|
Measurement Range |
Level 0...10 m, Velocity 0...12 m/s, Conductivity 0...200,000 µS/cm |
|
Output |
4-20 mA two-wire Std. 0-20 mA - 4-20 mA, 0-10 V three-wire Opt. |
|
Accuracy |
± % 0.5, ± % 0.8, ± % 1 |
|
Linearity |
% 0.5 |
|
Capacitance Measurement Range |
1pF...3nF |
|
Min. Dielectric Constant |
1.6 |
| Connection Material | 304 Stainless Steel (Opt. 316 Stainless Steel) |
| Insulation Material | PFA Std. (Opt. PEEK, PTFE, Rubber, FKM) |
| Housing Material | PBT Std., (Opt. Aluminum, Stainless Steel) |
| Operating Pressure | (-) 1 bar...100 bar (Depends on model) |
| Operating Temperature |
(-) 40 °C / (+) 150 °C (Depends on model) Up to 200 °C with cooling apparatus / (-) 196 °C for Cryogenic Tank For Rubber Coated: (-) 50 °C...(+) 80 °C For KM: (-) 30 °C ...(+) 200 °C / For Ceramic: max. 400 °C |
| Ambient Temperature | (-) 20 °C / (+) 60 °C |
| Indicator | With Power and adjustment LEDs |
| Isolation | Max. 500 V |
| Power Consumption | Max. 50 mW |
| Electrical Connection | Terminal Block (Klemens) |
| Protection Class (En60529) | PBT - IP 66, Aluminum, Stainless Steel IP 65 |
| Test | EMC, Low Voltage |
| Max Force on Probe | Max. 40 Nm |
| Weight | 295 g (for GCAP 101 250 mm) |
