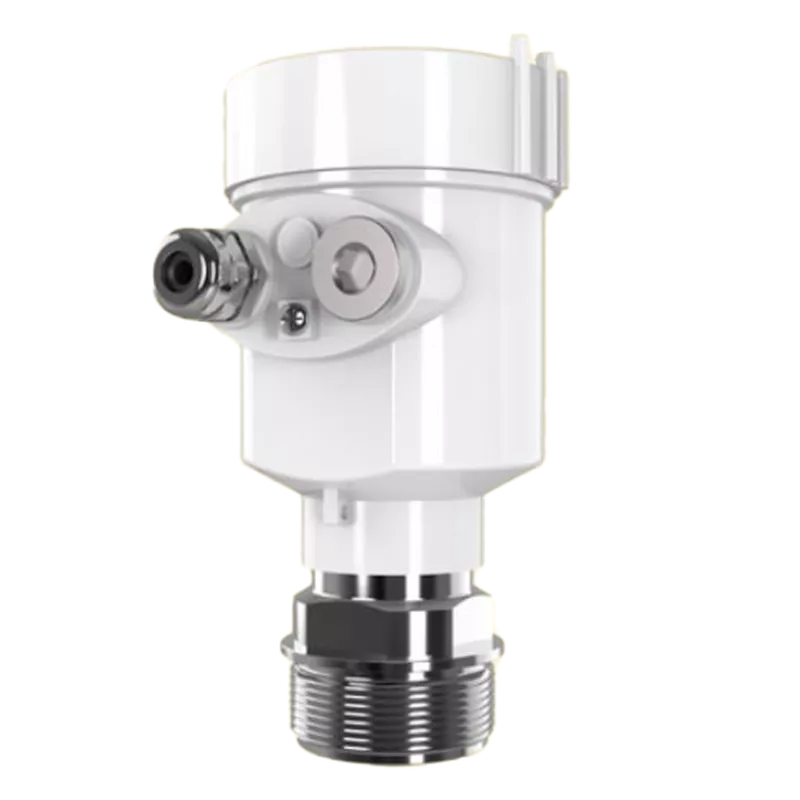

The RM-R800NS Series is the ideal sensor for non-contact level measurement in simple applications. It is particularly suitable for open channel application: exp water/wastewater field, sewage, rain basins, flume, dam level monitoring, pumping stations and rain overflow basins, level monitoring and for many other industrial applications.
|
Features |
Description |
|---|---|
|
Product Type |
FMCW Radar Level Transmitter |
| Application | *Bulk solids *Storage Tanks *Silos, barns *Stockpiles *Large wastewater storage tanks |
| Frequency | 77GHz-81GHz |
| Measurement Range | 10M 20M 30M 50M 60M |
| Accuracy | ±2mm (Blind Zone>0.3m, damping=50) |
| Beam Angle | ±2.9° (G2”) |
| Antenna Material | SS 304/Sealed PTFE |
| Process Connection | Default G2” Thread; Thread and flange customization can be fulfilled |
| Process Temperature | -30°C to 80°C |
| Process Pressure | Normal atmospheric pressure |
| Signal output | 4-20mA/RS485(Mod-bus - RTU)/Hart |
| Power | Two-wire DC 24V (22V~30V) |
| Protection | IP67 |
| Explosion-proof | Exd II CT6Gb |
| Sizes | 97mmx201mm / : |
| Net weight | 2kgs. |
