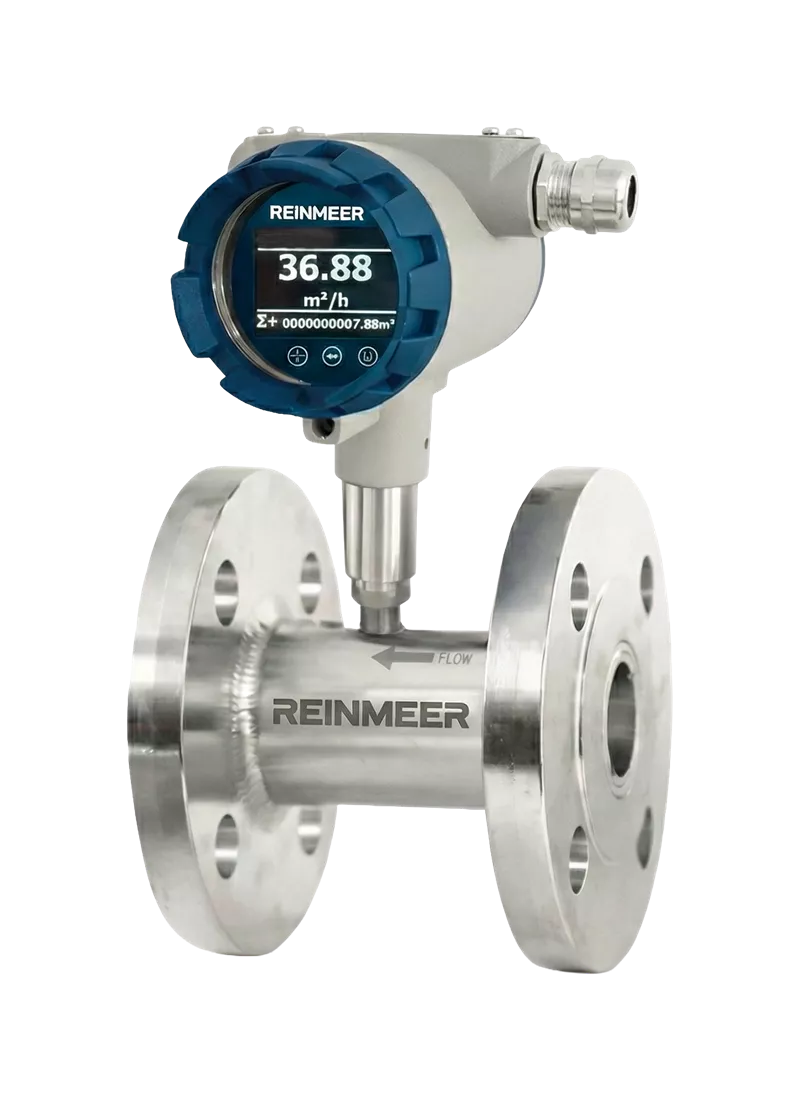

RM-TD Series

Stainless steel turbine flowmeters are durable and reliable devices used for precise measurement of many low-viscosity fluids. Thanks to their SS316 stainless steel housing and mechanical parts, they offer long-lasting performance in demanding processes.

These flowmeters provide the ability to monitor instantaneous and total flow rate information, and increase the efficiency of industrial processes by transferring data to automation systems or digital memory media.

Ex-Proof Turbine Flowmeters with Displays: Turbine flowmeters with displays allow users to see the flow rate measurement in real-time. These models are ideal for applications requiring visual monitoring and offer easy tracking of the process's instantaneous status. Furthermore, Ex-proof turbine flowmeters with displays, resistant to explosive atmospheres, are specifically designed to meet the safe measurement needs of hazardous environments.

Category: FLOW
Stock Code: RM-TD
  • Product Features
  • Document

Features

Description

Measurement Range

Liquids with viscosity below 20 cSt

Diameter

DN02...DN50 (Male threaded) DN15...DN300 (Flange)

Measurement Range

0.036...1.400 m³/h

Accuracy

±0.5% of M.V. (Standard), ±0.2% (Optional)

Process Temperature

-20°C ... 120°C

Process Pressure

Up to 63 Bar

Power Supply

5...24 VDC, 3.6 V Lithium Battery

Protection Class

IP65, IP67 (Depending on electronics)

ATEX Clas

Ex d IIC T6 Gb

Output

Pulse, 4...20 mA, 0...10 V, RS485 (selectable)

Options

Local Display OLED
