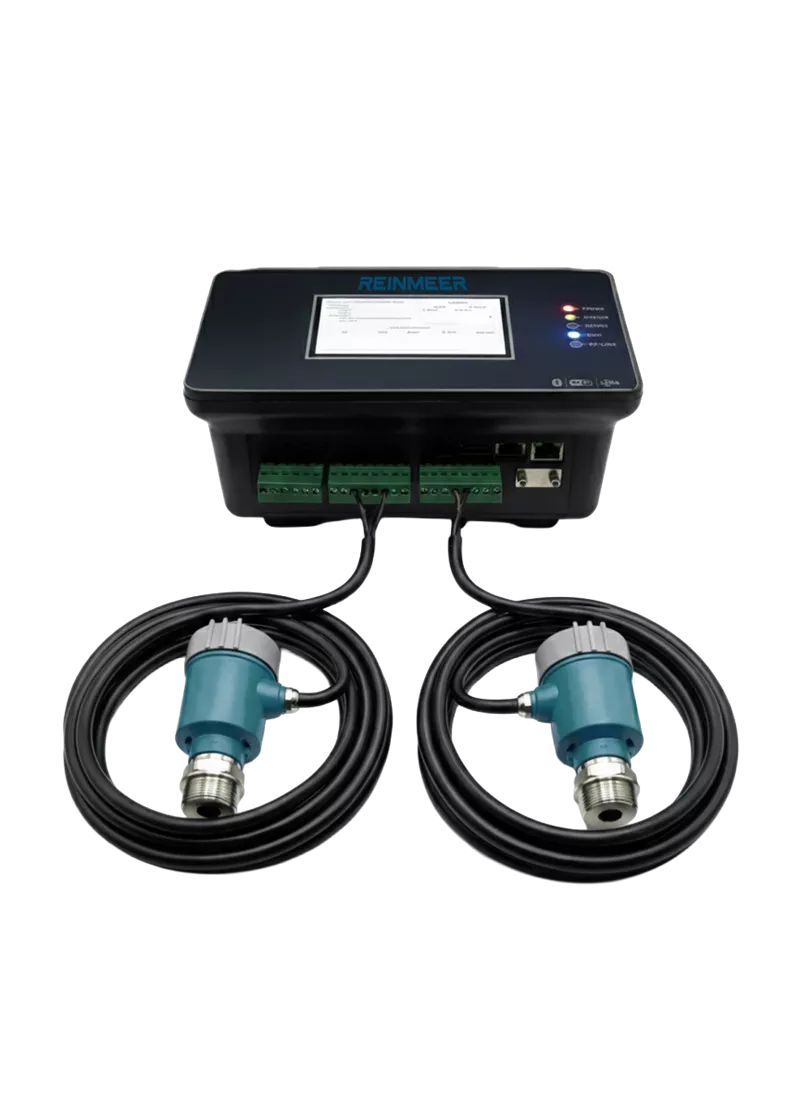

RM-ULBS Series
The RM-ULBS ultrasonic flow measurement set measures instantaneous and total flow rate in channels with weir structures, based on the fluid level. It can be reliably used in various weir types such as rectangular weirs, U-weirs, Parshall weirs, V-Notch weirs, and Cipoletti weirs.
This system, consisting of a radar or ultrasonic level sensor, flow control and recording device, provides accurate and reliable measurements.
Open Channel Flowmeter Indicator Technical Specifications
|
Features |
Description |
|---|---|
|
Supply Voltage |
24V DC ± %30 / 4,5W Max |
|
Analog Output |
4...20mA, RS485 |
|
Digital Output |
RS485 PC Ayarlama Programı da Verilecektir. |
|
Maximum Operating Temperature |
M24x1,5 |
|
Probe Protection Class |
IP68 |
|
Resolution |
1 mm Maksimum |
|
Linearity |
Better than 0.5% |
|
Maximum Measurement |
4 m (For the water surface) |
| Minimum Measurement | 0,1 m |
| Sensor Frequency |
50Khz |
| Sound Cone |
10 Degrees |
| Narrowest Silo Diameter | 40 cm |
| Compensation |
The effect of ambient temperature change on sound propagation speed. |
