RM-RDR Series

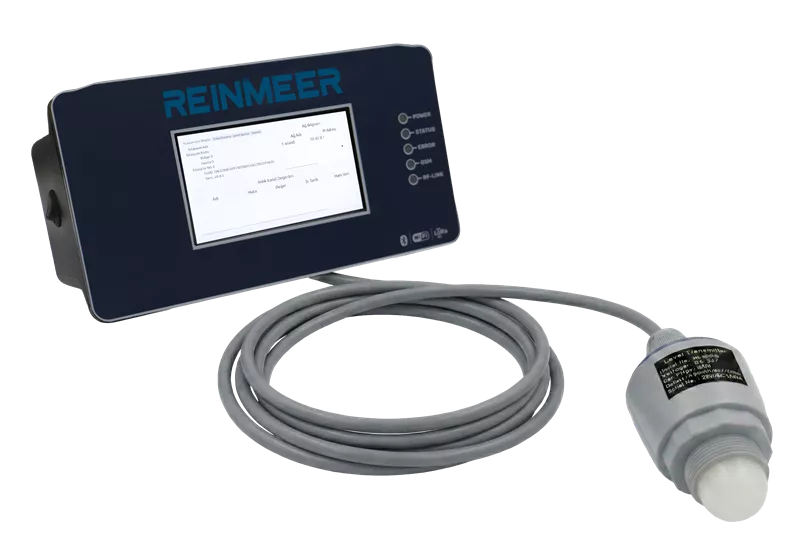

An open-channel ultrasonic flow measurement set performs instantaneous and total flow measurement by referencing the liquid level in channels with weir structures. It can be safely used with various weir types such as rectangular weirs, U-weirs, Parshall flumes, V-notch, and Cipolletti weirs.This system consists of a radar or ultrasonic level sensor together with a flow control and recording unit, providing precise and reliable measurements
Open Channel Flowmeter Indicator Technical Specifications
|
Features |
Description |
|---|---|
|
Measurement Range |
01...30 m (Liquids and Solids) |
|
Accuracy/Beam Angle |
±3 mm / 6° |
|
Process Temperature |
-40... +85°C |
|
Process Connection |
M24x1,5 |
|
Material |
Plastic |
|
Power Supply |
12...30 VDC |
|
Output |
RS485 MODBUS, Bluetooth, LORA ve 4G (Opsiyonel) |
|
Protection Class |
IP67 |
