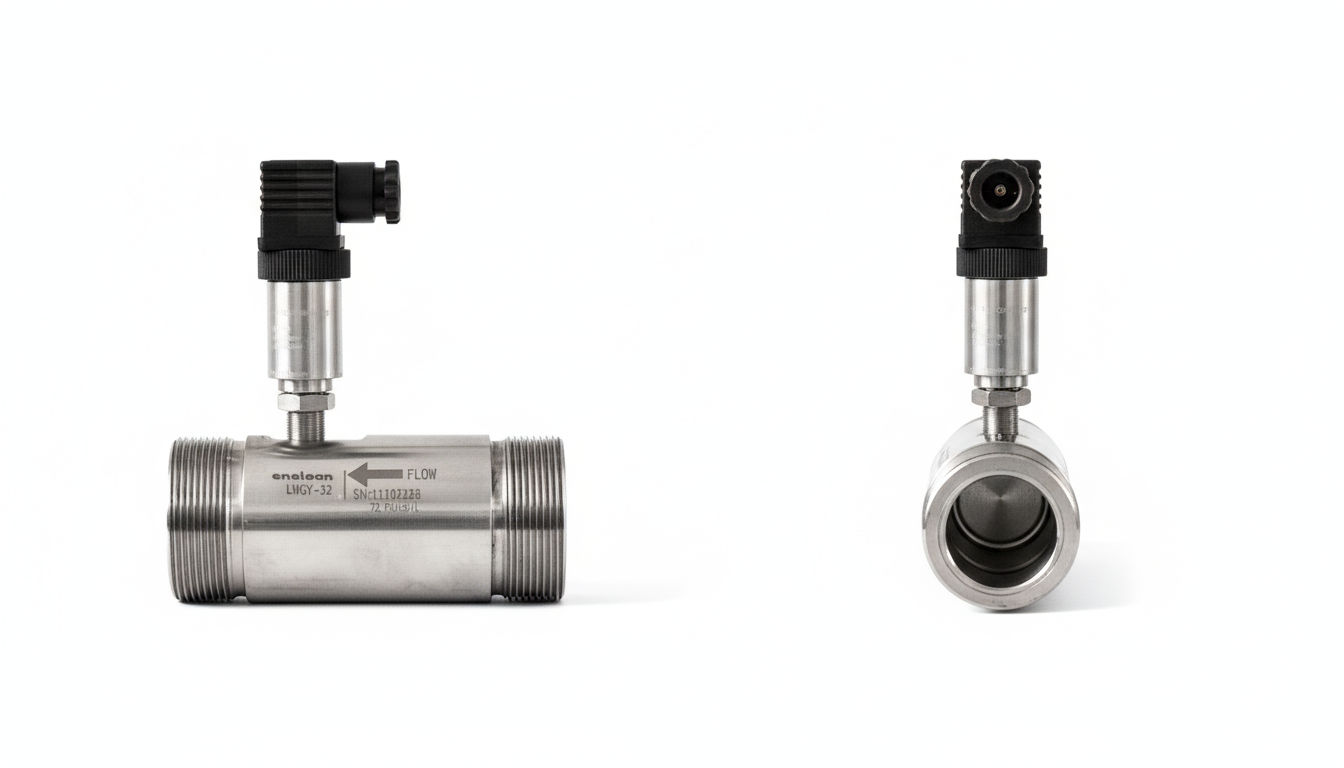

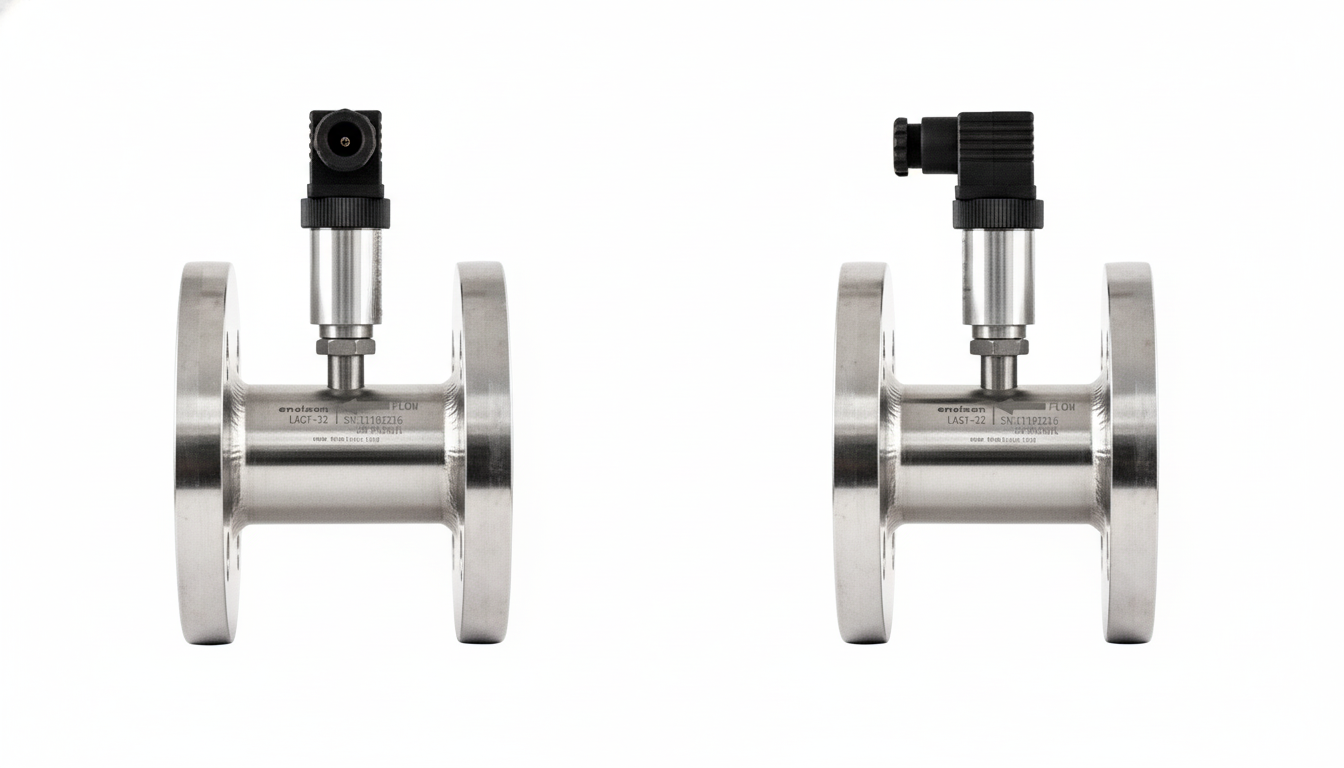

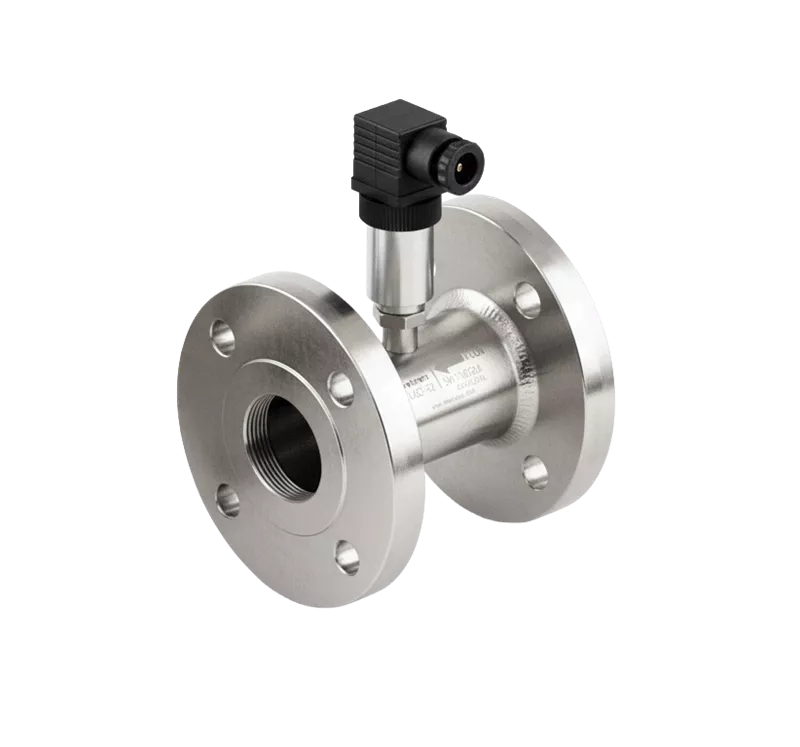

RM-TD-F Series
Stainless steel turbine flowmeters are durable and reliable devices used for precise measurement of many low-viscosity fluids. Thanks to their SS316 stainless steel housing and mechanical parts, they offer long-lasting performance in demanding processes.
These flowmeters provide the ability to monitor instantaneous and total flow rate information, and increase the efficiency of industrial processes by transferring data to automation systems or digital memory media.
|
Features |
Description |
|---|---|
|
Measurement Range |
Liquids with viscosity below 20 cSt |
|
Diameter |
DN02...DN50 (Male threaded) DN15...DN300 (Flange) |
|
Measurement Range |
0.036...1.400 m³/h |
|
Accuracy |
±0.5% of M.V. (Standard), ±0.2% (Optional) |
|
Process Temperature |
-20°C ... 120°C |
|
Process Pressure |
Up to 63 Bar |
|
Power Supply |
5...24 VDC, 3.6 V Lithium Battery |
|
Protection Class |
IP65, IP67 (Depending on electronics) |
|
ATEX Clas |
Ex d IIC T6 Gb |
| Output |
Pulse, 4...20 mA, 0...10 V, RS485 (selectable) |
| Options |
Local Display OLED |
