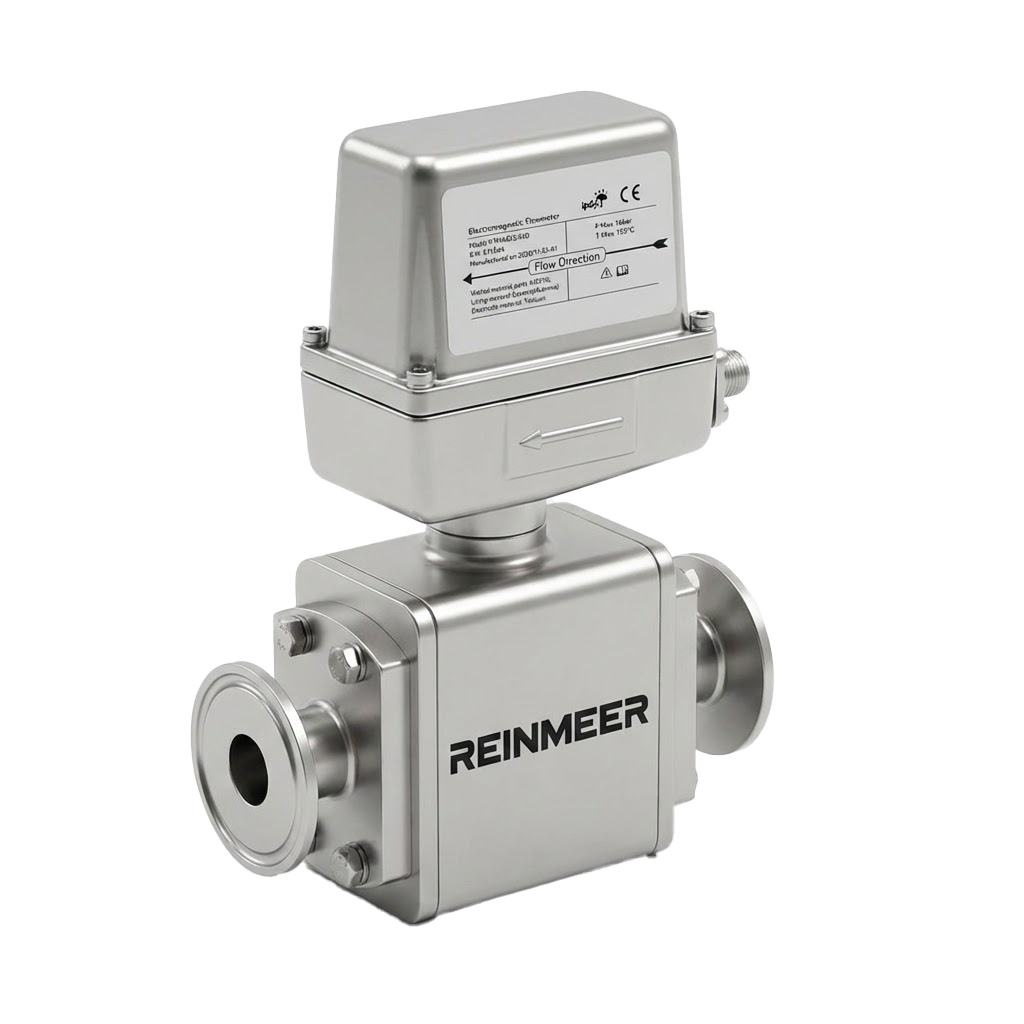

C8

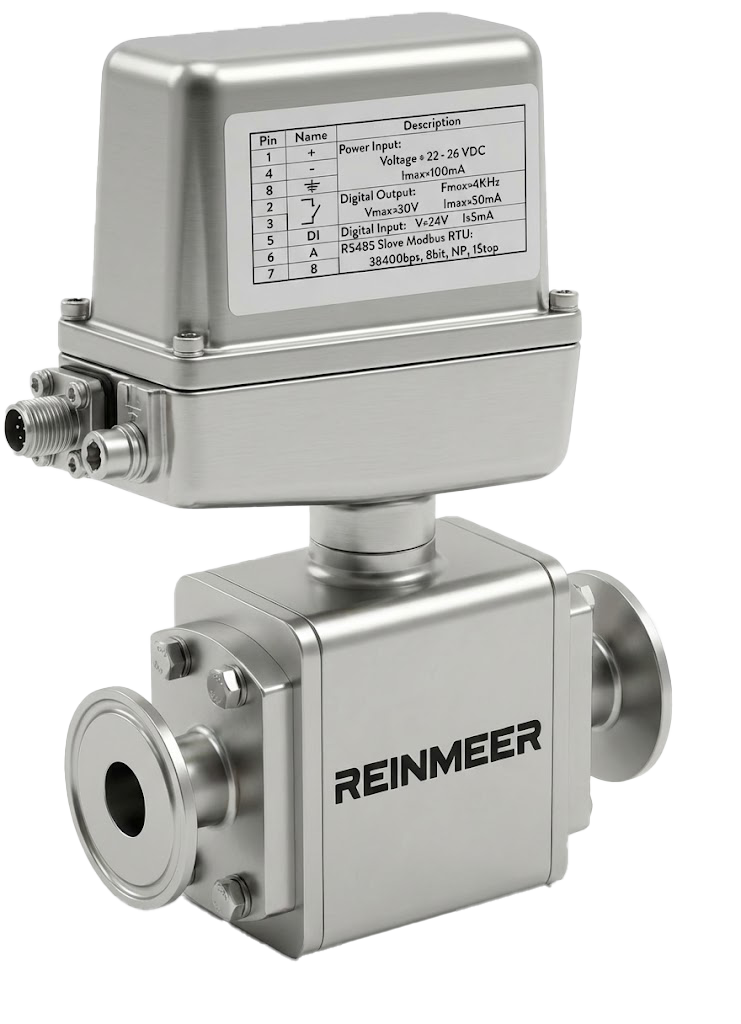

C8a

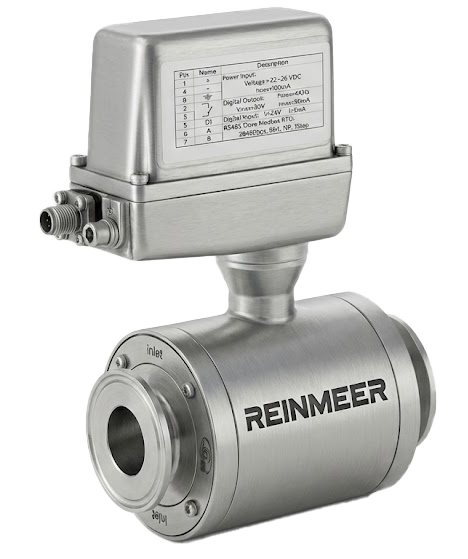

C9c
RM-REMFIL ELECTROMAGNETIC FLOWMETER
C8
C8a
C9c

RM-REMFIL Series ELECTROMAGNETIC FLOWMETER

"The RemFil Stainless Steel Electromagnetic Flowmeter is an ideal solution, particularly for industrial liquid filling systems that require high precision and speed. Holding critical importance in the food, beverage, pharmaceutical, and chemical sectors, this device provides excellent repeatability in bottling lines, packaging units, and precision dosing processes. Thanks to its compact size options ranging from 6 mm to 25 mm and its fast response time, it can be easily integrated into modern linear and rotary filling machines, maximizing efficiency in mass production.

Category: FLOW
Stock Code: RM-REMFIL
  • Features
  • Document

Features

Description

Mass Flow Accuracy

± 0.2%

Mass Flow Repeatability

± 1/2 × zero calibration stability / flow range × 100%



Density Measuring Rang

0.2 g/cm³ – 3.5 g/cm³

Density Accuracy

± 0.002 g/cm³

Temperature Range

-60 °C to +200 °C

Temperature Accuracy

Flow and Temperature: 4-20 mA Analog Output, Output impedance (Vs-12) / 0.02 Ohm

Current Output

4 – 20 mA

Frequency / Pulse Output

0 – 10 kHz
Batch Control Relay Contact Rating 24 V / 0.1 A
Contact Type Normally Open (NO)
Ambient Temperature Range 0 °C to +40 °C
Ambient Humidity Resistance < 90% RH (non-condensing)
Atmospheric Pressure Range 86 kPa – 106 kPa
Power Supply 24 VDC ±10% or 220 VAC ±10%
Power Consumption < 15 W




Reinmeer REMFIL datasheet-EN
