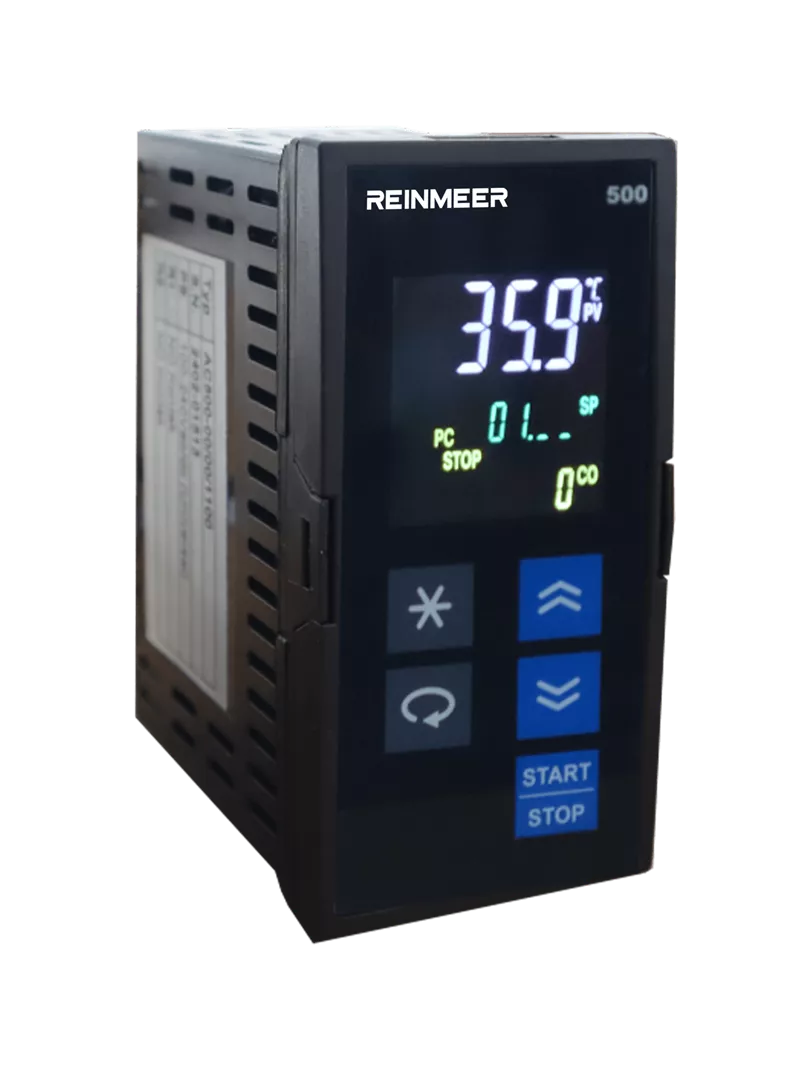

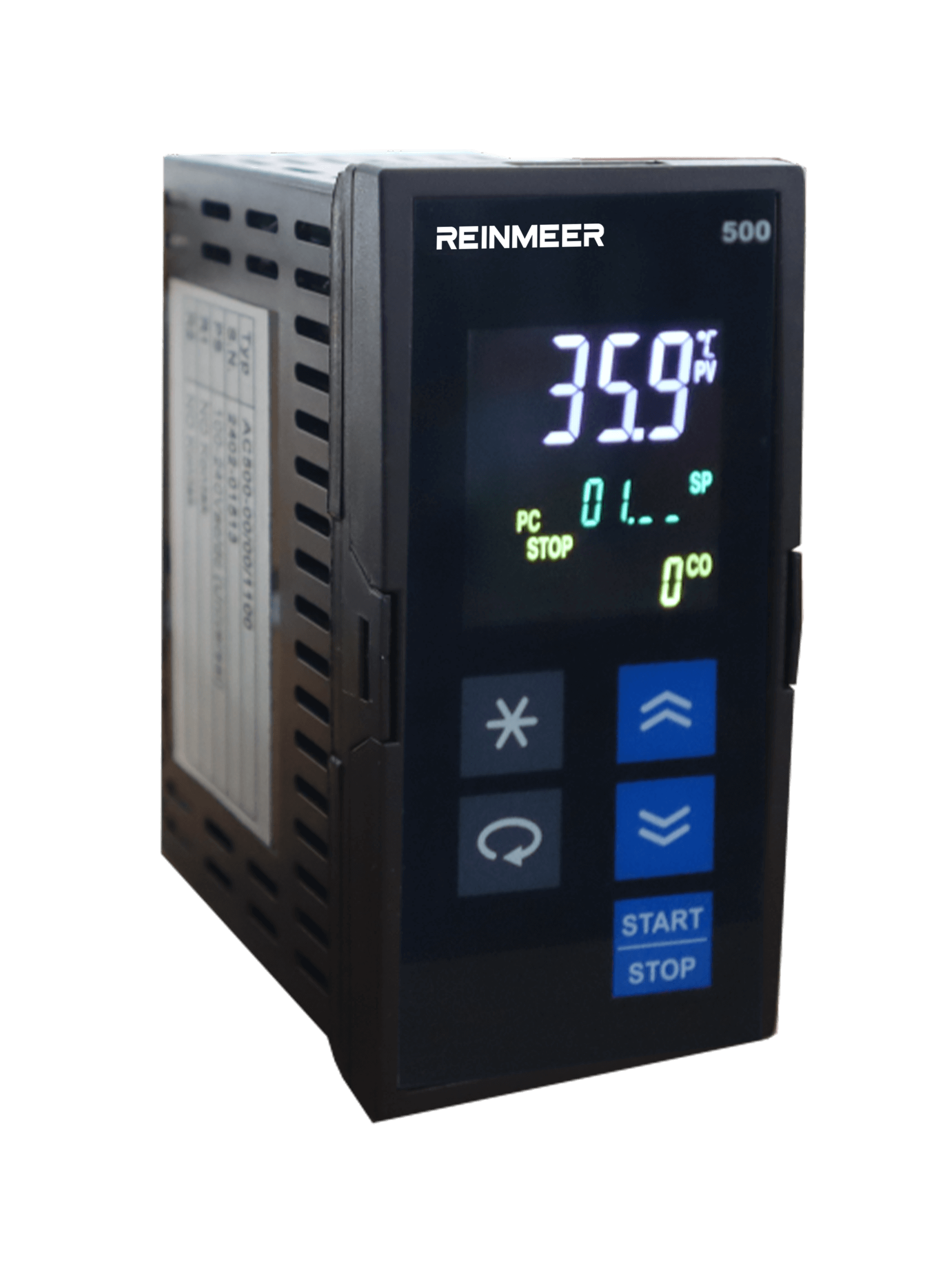

The REINMEER RM-PC500 is an advanced, 48x96 mm industrial step controller designed to measure and control various process variables such as temperature, pressure, and humidity. This fully modular instrument features extensive programming capabilities, supporting 100 programs with a total of 800 steps, alongside versatile control types including ON/OFF and PID. Powered by a universal 100-240V AC/DC or 24V supply, it is widely utilized across multiple industrial sectors, including food, plastics, metallurgy, and ceramics.
| Features | Description |
|---|---|
| Supply Voltage (PS) | 100-240 Vac/dc +10% -15% 24 Vac/dc +10% -20% |
Power Consumption | 6W, 10VA |
| Universal Sensor Input (S1) |
|
| Auxiliary Analog Input | 0/4-20mA |
| Potentiometer Input | 100–1500Ω |
| Transmitter Supply (TX) | 24Vdc (Isc = 30mA) |
| Analog Input Impedance |
|
| Analog Output (O1) |
|
| Relay Outputs (R1, R2, R3, R4) |
|
| Contact Life |
|
| Other Specifications |
|
| Dimensions |
|
| Panel Cut-Out | 45,5± 0.5 mm x 92 ± 0.5 mm |
| Weight | 430 g |
