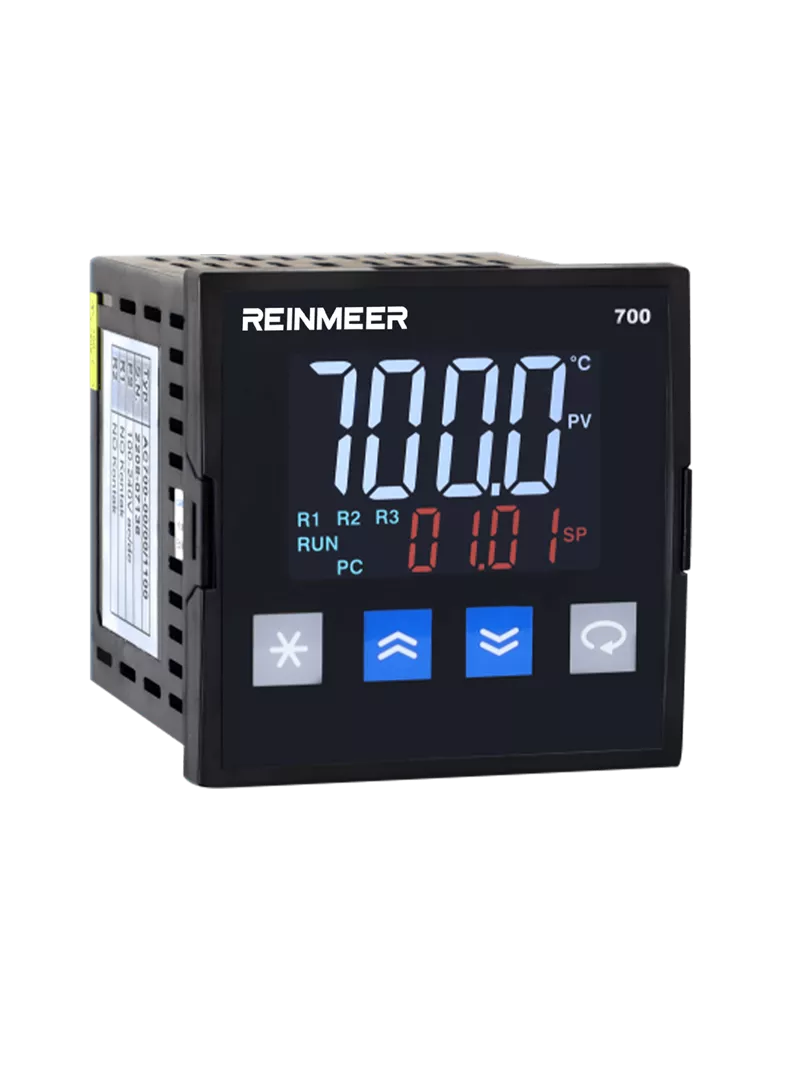

The REINMEER RM-PC700 is a fully modular, 72x72 mm industrial step controller designed for the measurement and PID control of various process variables such as temperature, pressure, and humidity. It features extensive programming capabilities with 100 programs and up to 800 steps, alongside advanced functions like auto-tuning, proportional valve control, and PID heating and cooling. Operating on a universal 100-240V AC/DC or 24V power supply, these highly adaptable devices are utilized across numerous sectors, including the food, plastics, and metallurgy industries.
| Features | Description |
|---|---|
| Supply Voltage (PS) |
100-240 Vac/dc +10% -15% |
Power Consumption |
5W, 8VA. |
| Universal Sensor Input (S1) |
|
| Transmitter Supply (TX) | 24Vdc (Isc = 30mA) |
| Analog Input Impedance |
|
| Analog Output (O1) |
|
| Relay Outputs (R1, R2, R3) |
|
| Contact Life |
|
| Other Specifications |
|
| Dimensions |
|
| Panel Cut-Out | 68 +/- 0.5 mm x 68 +/- 0.5 mm. |
| Weight | 292 g |
