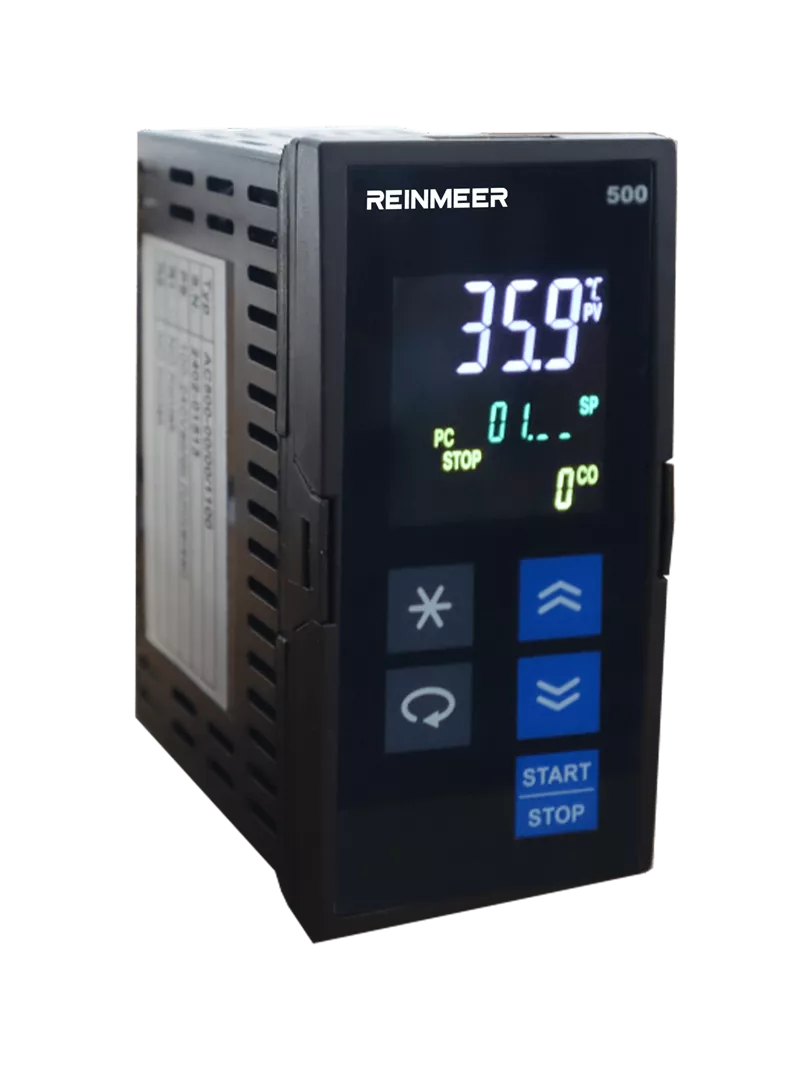

RM - AC500 ADVANCED CONTROL DEVICES

RM - AC500 ADVANCED CONTROL DEVICES
RM - AC500 ADVANCED CONTROL DEVICES

RM-AC500 model devices are designed in 48 x 96 mm dimensions for measuring many industrial process variables (temperature, pressure, speed, level, humidity, current, voltage, resistance, etc.) and for ON/OFF and PID control. They are fully modular devices, and each module can be configured independently.

Category: CONTROLLERS
Stock Code: RM - AC500
  • Product Features
  • Document
Features Description
Supply Voltage (PS)

100-240 Vac/dc +10% -15%

24 Vac/dc +10% -20%

Power Consumption

 6W, 10VA
Universal Sensor Input (S1)

  • Thermocouple: B, E, J, K, L, N, R, S, T, U

  • Two-wire transmitter: 4-20mA

  • Resistance thermometer: Pt-100

  • Current: 0/4-20mA

  • Voltage: 0-5mV, 0/2-10V
Auxiliary Analog Input  0/4-20mA
Potentiometer Input 100–1500?
Transmitter Supply (TX) 24Vdc (Isc = 30mA)
Analog Input Impedance

  • Thermocouple, mV: 10M?

  • Current: 10?

  • Voltage: 1M?
Analog Output (O1)

  • Current: 0/4-20mA (RL ? 500?)

  • Voltage: 0/2-10V (RL ? 1M?)
Relay Outputs (R1, R2, R3, R4)

  • Contact rating: 250VAC 10A

  • Logic output: 24Vdc 20mA
Contact Life

  • No load: 10,000,000 operations

  • 250V 10A resistive load: 1,000,000 operations
Other Specifications

  • Memory: 100 years / 100,000 rewrites

  • Accuracy: ± 0.2%

  • Sampling time: 100 ms

  • Operating temperature: -10…+55°C

  • Storage temperature: -20…+65°C

  • Protection class: Front panel IP54 / Rear panel IP20
Dimensions

  • Width: 48 mm

  • Height: 96 mm

  • Depth: 78.2 mm
Panel Cut-Out 92 ± 0.5 mm x 92 ± 0.5 mm
Weight 430 g




RM-AC500 Datasheet
