RM - AC700 Advanced Control Devices

RM - AC700 Advanced Control Devices
RM - AC700 Advanced Control Devices

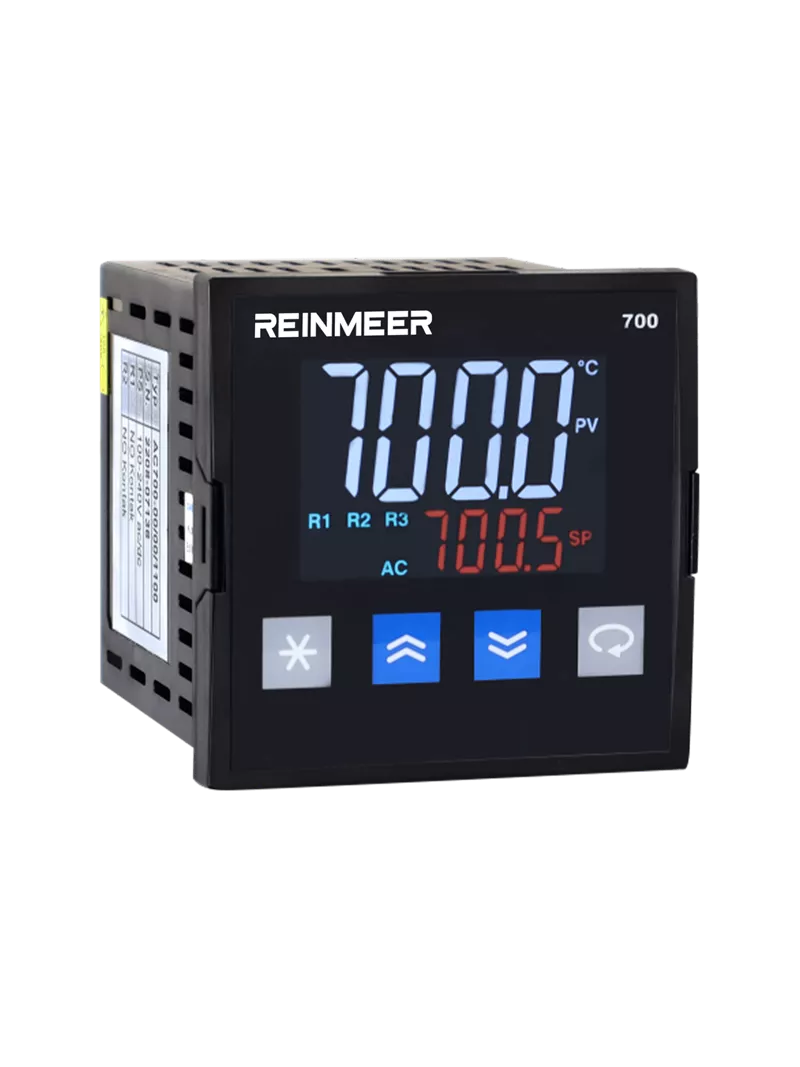

The REINMEER RM-AC700 is an advanced, modular control device designed in 72x72 mm dimensions to measure various industrial process variables, such as temperature, pressure, and speed, while providing ON/OFF and PID control capabilities. It features a universal sensor input, multiple relay and analog outputs, a dual 4-digit LCD display, and supports the standard MODBUS RTU communication protocol. Built for reliability and ease of use, this versatile unit is widely utilized across diverse sectors, including food, plastic, petrochemical, and glass manufacturing.

Category: CONTROLLERS
Stock Code: RM - AC700
  • Product Features
  • Document
Features Description
Supply Voltage (PS)

100-240 Vac/dc +10% -15%
24 Vac/dc +10% -20%

Power Consumption

 5W, 8VA.
Universal Sensor Input (S1)

  • Thermocouple: B, E, J, K, L, N, R, S, T, U

  • Two-wire transmitter: 4-20mA

  • Resistance thermometer: Pt-100

  • Current: 0/4-20mA

  • Voltage: 0-5mV, 0/2-10V
Transmitter Supply (TX) 24Vdc (Isc = 30mA)
Analog Input Impedance

  • Thermocouple, mV: 10M?

  • Current: 10?

  • Voltage: 1M?
Analog Output (O1)

  • Current: 0/4-20mA (RL ? 500?)

  • Voltage: 0/2-10V (RL ? 1M?)
Relay Outputs (R1, R2, R3)
  • Contact (R1, R2, R3): 250VAC 10A
  • Logic Output = 24Vdc 20mA
Contact Life

  • No load: 10,000,000 operations

  • 250V 10A resistive load: 1,000,000 operations
Other Specifications

  • Memory: 100 years / 100,000 rewrites

  • Accuracy: ± 0.2%

  • Sampling time: 100 ms

  • Operating temperature: -10…+55°C

  • Storage temperature: -20…+65°C

  • Protection class: Front panel IP54 / Rear panel IP20
Dimensions

  • Width: 72 mm

  • Height: 72 mm

  • Depth: 78.2 mm
Panel Cut-Out 68 +/- 0.5 mm x 68 +/- 0.5 mm.
Weight 292 g




RM-AC700 Datasheet
