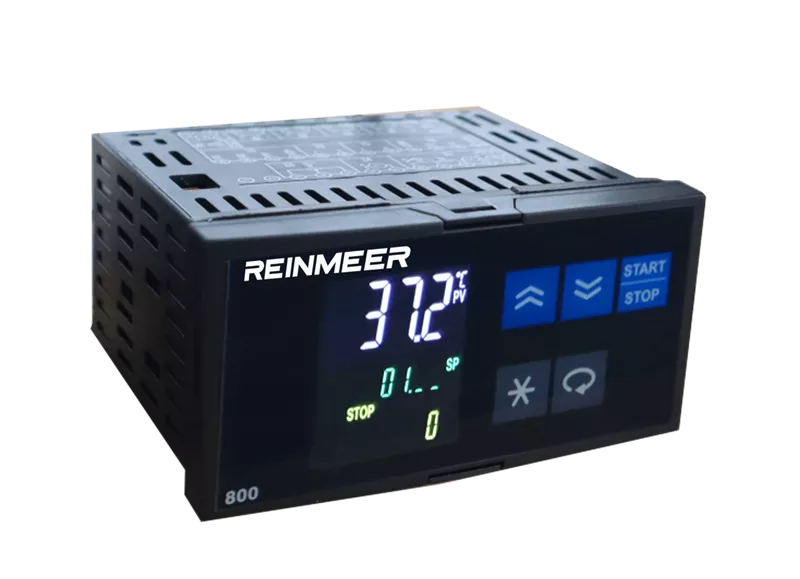

RM - AC800 Advanced Control Devices

RM - AC800 Advanced Control Devices
RM - AC800 Advanced Control Devices

The REINMEER RM-AC800 series consists of fully modular industrial devices that are designed for measuring and controlling process variables such as temperature, pressure, and speed. These controllers support standard MODBUS RTU communication via an RS485 unit and feature a universal sensor input alongside multiple analog and relay outputs. Furthermore, they are suitable for both On/Off and PID control applications across various sectors, including the food, plastic, and metallurgy industries.

Category: CONTROLLERS
Stock Code: RM - AC800
  • Product Features
  • Document
Features Description
Supply Voltage (PS)

100-240 Vac/dc +10% -15%
24 Vac/dc +10% -20%

Power Consumption

 6W / 10VA.
Universal Sensor Input (S1)

  • Thermocouple: B, E, J, K, L, N, R, S, T, U

  • Two-wire transmitter: 4-20mA

  • Resistance thermometer: Pt-100

  • Current: 0/4-20mA

  • Voltage: 0-5mV, 0/2-10V
Transmitter Supply (TX) 24Vdc (Isc = 30mA)
Analog Input Impedance

  • Thermocouple, mV: 10M?

  • Current: 10?

  • Voltage: 1M?
Analog Output (O1)

  • Current: 0/4-20mA (RL ? 500?)

  • Voltage: 0/2-10V (RL ? 1M?)
Relay Outputs (R1, R2, R3,R4)
  • Contact ( R1, R2, R3, R4 ) : 250VAC 10A
  • Logic Output = 24Vdc 20mA
Contact Life
  • No load: 10,000,000 operations
  • 250V 10A resistive load: 1,000,000            operations
Other Specifications

  • Memory: 100 years / 100,000 rewrites

  • Accuracy: ± 0.2%

  • Sampling time: 100 ms

  • Operating temperature: -10…+55°C

  • Storage temperature: -20…+65°C

  • Protection class: Front panel IP54 / Rear panel IP20
Dimensions

  • Width: 96 mm

  • Height: 48 mm

  • Depth: 78.2 mm
Panel Cut-Out 92 +/- 0,5 mm x 45,5 +/- 0,5 mm
Weight 430 g




RM-AC800 Datasheet
