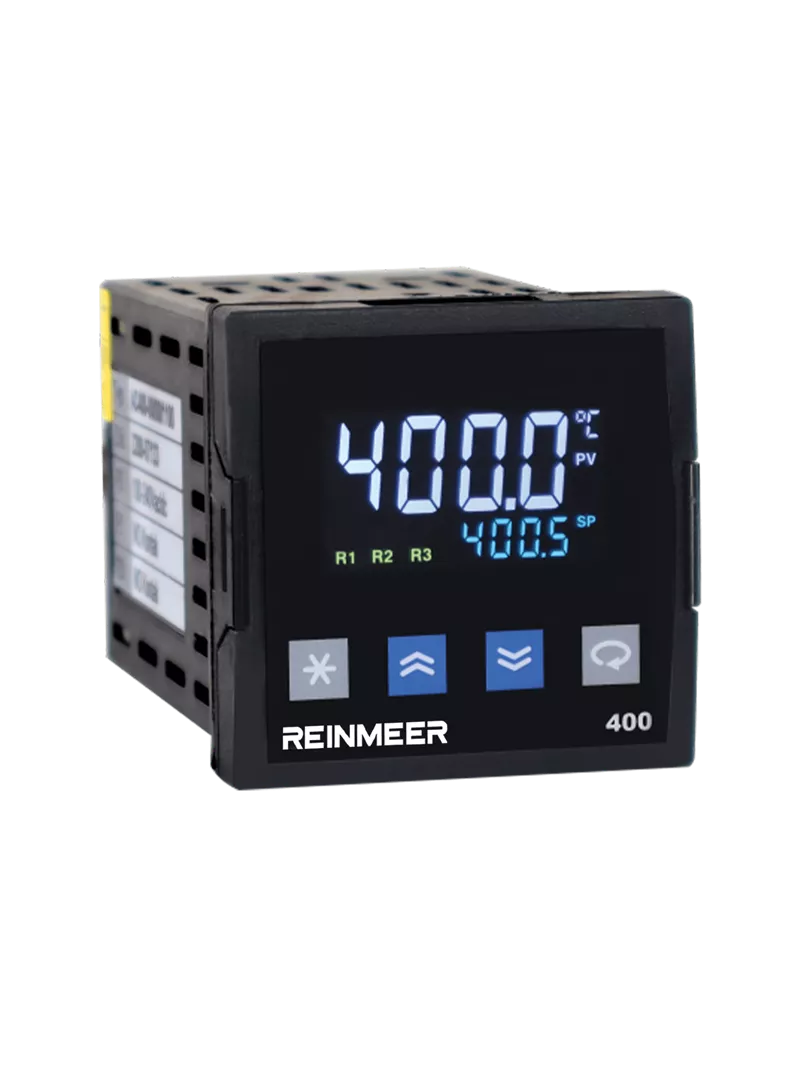

The REINMEER RM-SC400 is a fully modular, 48x48 mm standard industrial controller designed for the measurement and PID control of process variables such as temperature, pressure, and humidity. It operates on a universal 100-240V AC/DC or 24V supply and features a universal sensor input alongside auto-tuning capabilities for optimizing control parameters. These highly adaptable devices are utilized across diverse sectors like the food, plastics, and metallurgy industries, though it is important to note that the RS-485 communication module and the 4-20mA analog output cannot be used at the same time.
| Features | Description |
|---|---|
| Power Supply (PS) |
100-240 Vac/dc (+10% / -15%) Universal 24 Vac/dc (+10% / -20%) |
Power Consumption |
4W, 6VA |
| Universal Sensor Input (S1) |
|
| Transmitter Supply (TX) | 24Vdc (Isc = 30mA) |
| Analog Input Impedance |
|
| Analog Output (O1) |
|
| Relay Outputs (R1, R2, R3) |
|
| Contact Life |
|
| Other Specifications |
|
| Ambient Temperature |
|
| Protection Class |
|
| Dimensions |
|
| Panel Cut-Out | 45 ±0.5 mm x 45 ±0.5 mm |
| Weight | 154 g |
