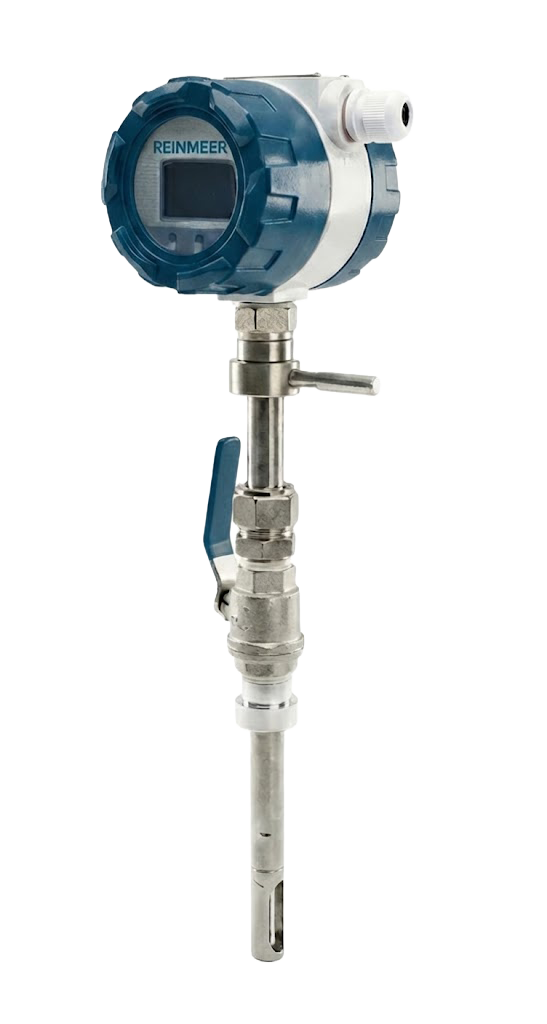

IMMERSION TYPE THERMAL MASS FLOWMETER

IMMERSION TYPE THERMAL MASS FLOWMETER
IMMERSION TYPE THERMAL MASS FLOWMETER

RM-ITT Series Thermal Mass Flowmeter

Thermal mass flowmeters are designed to directly and accurately measure the mass of gaseous fluids. Unlike standard flowmeters, they do not require pressure and temperature compensation; they directly calculate the mass flow rate.

  • No Moving Parts: Low maintenance costs and long service life.
  • Wide Measurement Range: Precise measurement from speeds as low as 0.2 m/s.
  • Low Pressure Loss: Continuous and efficient flow monitoring.
  • High Reliability: Precise temperature compensation with platinum RTD sensors.
  • Flexible Application: Applicable to a wide range of pipe diameters from DN20 to DN100.
Category: FLOW
Stock Code: RM-ITT
  • Features
  • Document

Features

Description

Measurement Range

0 - 60 m/s velocity (at 20°C Temperature and 1.0133 Mpa Pressure)

Temperature Range

Main Display: -40°C - +85°C / Sensor: -10°C - +350°C

Accuracy

0.5% of Reading

Maximum Probe Length

500 mm

Probe Mounting

Pipe Diameter / 2 ± 25 mm

Output

Flow and Temperature: 4-20 mA Analog Output, Output impedance (Vs-12) / 0.02 Ohm

Material

AISI 316 Stainless Steel

Alarm Output

Photo-isolator Output 50V / 150 mADC
Temperature Coefficient 0.05% / 10°C
Pressure Effect Negligible / None
Response Time 1 sec
Power Supply 24 VDC ± 10% or 220 VAC ± 10%
Working Pressure 1.6 Mpa (Pressure values above this limit must be notified during the production stage.)
Communication Interface RS232 or RS485 (Changeable via user interface.)
User Menu Flow Range, Alarm Values, Calibration parameters, Temperature Range are adjustable.
Protection Class dIICT4 Ex-proof Protection (Except Acetylene)
