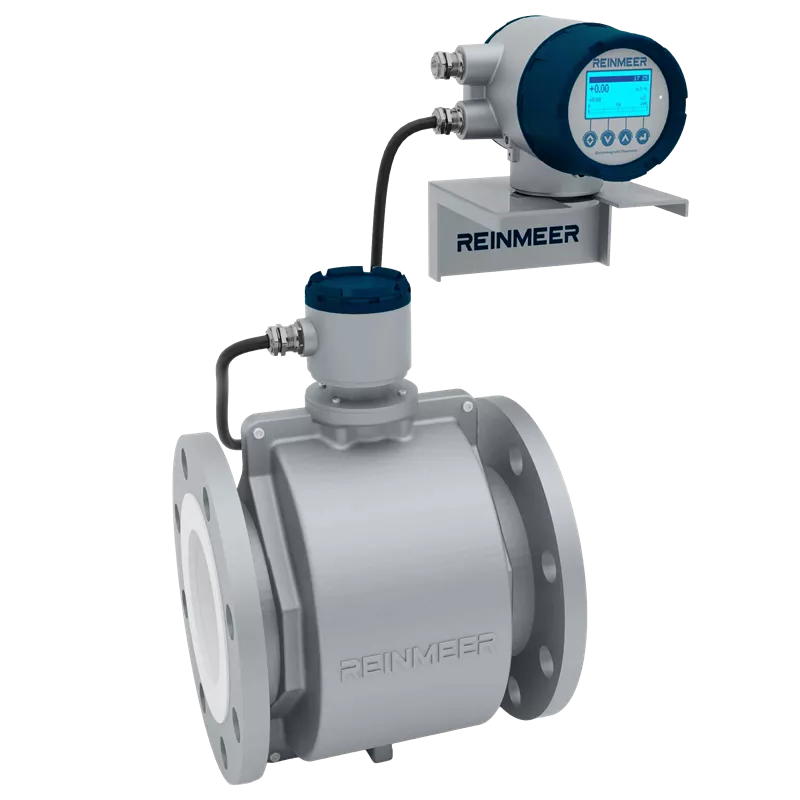

Reinmeer RM-MHRSeries electromagnetic flowmeters can be easily used for volumetric flow measurements of water and wastewater applications, as well as any water-based or conductive liquids.
| Pipe Sizes |
DN10...DN3000 |
| Measuring Range |
0,2 ... 12 m/s |
| Accuracy |
±0.50% or ±0.2% (of Measured Value) |
| Process Temperature |
Ebonite -10°C...+60°C / Teflon(PTFE) -20°C...+150°C |
| Process Conductivity |
>5 µS/cm (>20 µS/cm for demineralised water) |
| Process Pressure |
PN10, PN16, PN25, PN40, PN100 (depend on pipe size) |
| Power Supply |
85-265 VAC 50-60 Hz, 24 VDC, Battery Operated |
| Straight Pipe Distance |
5x DN front 3x DN behind of the flowmeter |
| Special Options |
Stainless Steel Body, Loose Flange, Wafer Type |
| Output |
Standard (4-20 mA, 0-10V, Frequency, Pulse) |
| Communications |
RS485 MODBUS, Wifi, Bluetooth (Standard) HART,PROFIBUS, LoraWAN,4G (Optional) |
| Alarms |
1x passive pulse (12-36VDC, 100 mA, 1.5 k? ) (selectable one of Empty Pipe, Sensor Error, Over Limit) |
| Digital Input |
Flow reading start/stop / Clear errors / Reset total flow |
| Data Logging |
Datalogger with 65,000 data memory |
| Indicator |
3 Line 30 digit with 4 push buttons LCD |
| Protection Class |
IP67 (Compact Model) / IP68 (Remote Model) |
|
|
|
