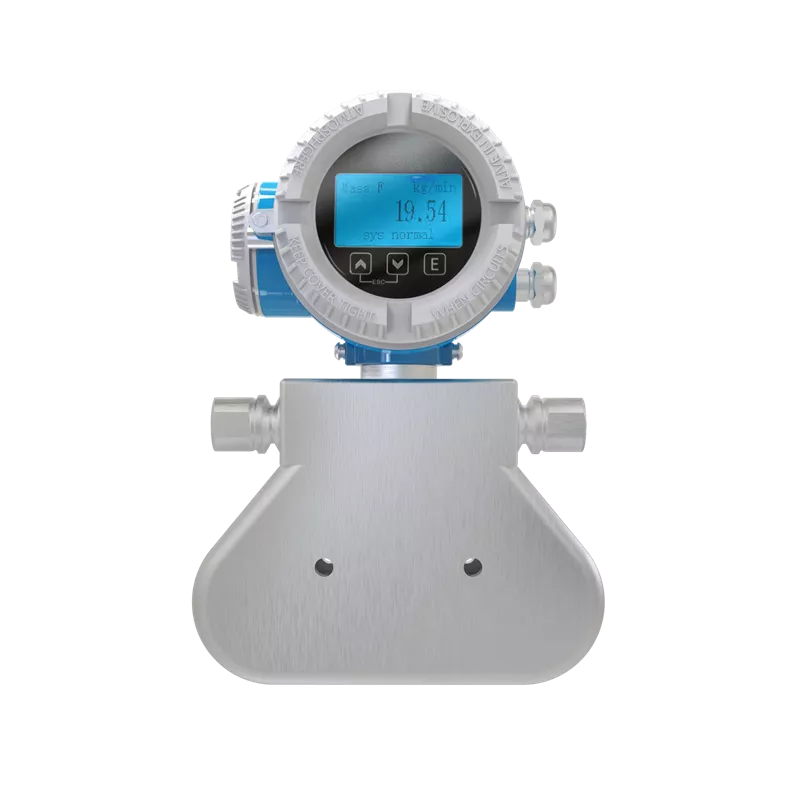

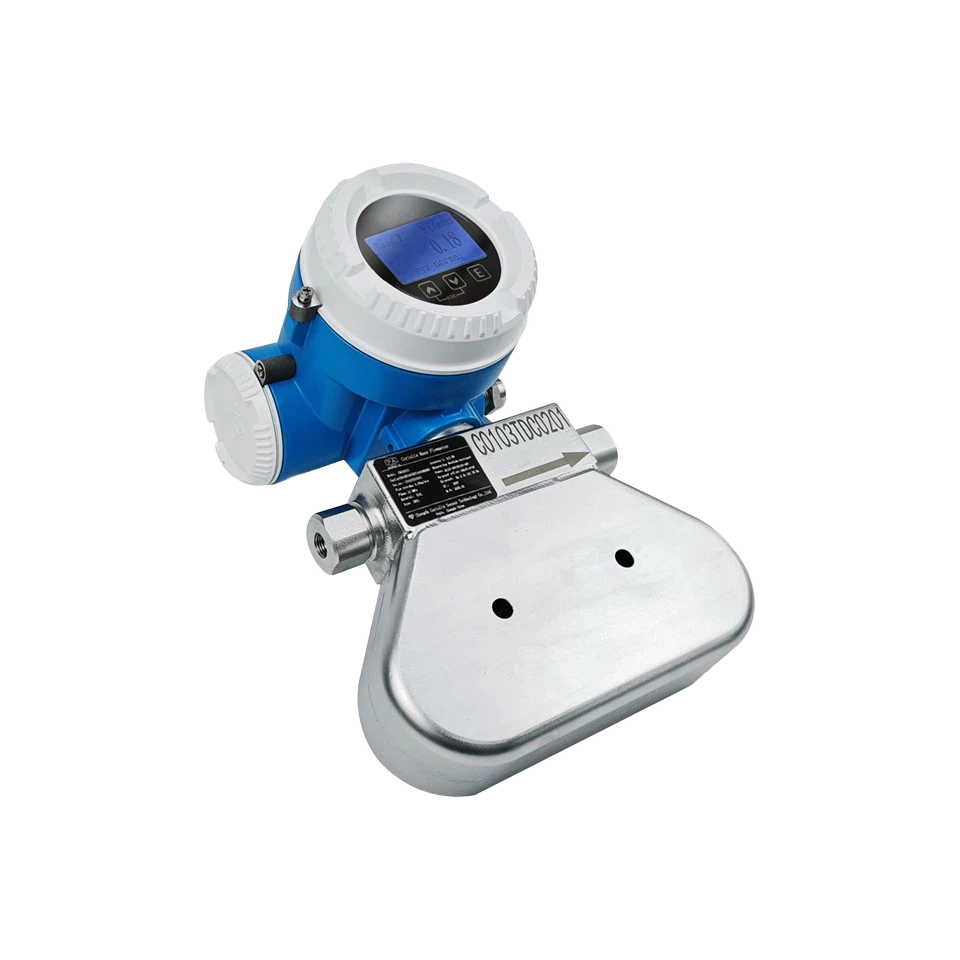

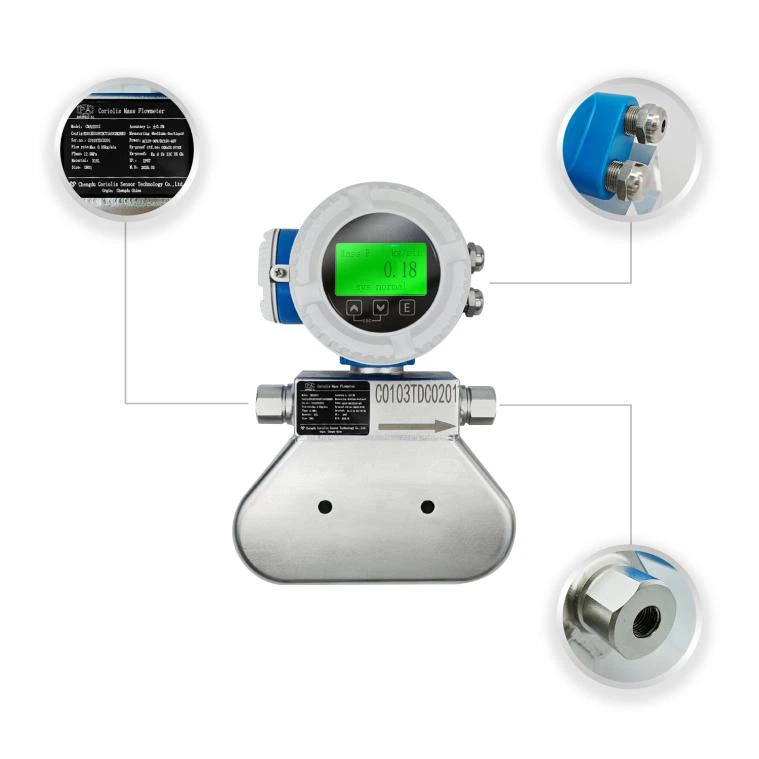

RM-CMASS001/CMASS002 Corrosion Inhibitor Coriolis mass flowmeter
P-High pressure Series
Precision micro-flow measurement for optimized chemical injection and corrosion protection.
|
Features |
Description |
|
|---|---|---|
|
MODEL |
CMASS001 |
|
| Nominal diameter | inch 1/12" | |
| mm DN01 | ||
| Medium temp. | -500°C~+150°C | |
| Max.W.P | < 45MPa | |
| Max. flow-rate | kg/min 0.2 | |
| Lb/min 0.44 | ||
|
Power Supply |
220VAC/24VDC Self-adaption |
|
|
Output signal |
Modbus RTU/RS-485, Pulse,4-20mA Current loop |
|
|
Display;Operate |
3-line backlight; Touch key control |
|
|
Protection grade |
IP67 | |
| Housing material | 304 stainless steel, ZL401 (Transmitter) | |
| Electrical connection | 4-20mA Current loop | |
| Measuring Tube Material; Wetted Parts Surface Finish |
316L (default), titanium/Ha C alloy/ tantalum (optional); polishable. |
|
| Process connection | Thread | |
| Accuracy class | ±0.1%,±0.15%, ±0.2%, ±0.5 %, ±1.0% | |
| Transmitter software | CLS100 (default), optional CLS200, CLS300 | |
| Other certifications | Explosion proof certificate, SIL, CCS, 3-A, EAC |
Product Core Value
• Precise Measurement:Solves the challenge of measuring ultra-low flows as low as 1 L/h, ensuring
injection accuracy.
• Cost Optimization: Offers the most cost-effective choice while meeting operational requirements.
• Stability and Reliability: Direct mass measurement is unaffected by property changes, and the
absence of moving parts eliminates maintenance needs.
• Intelligent Management: Supports remote data transmission, enabling automation and digitization
of processes.
