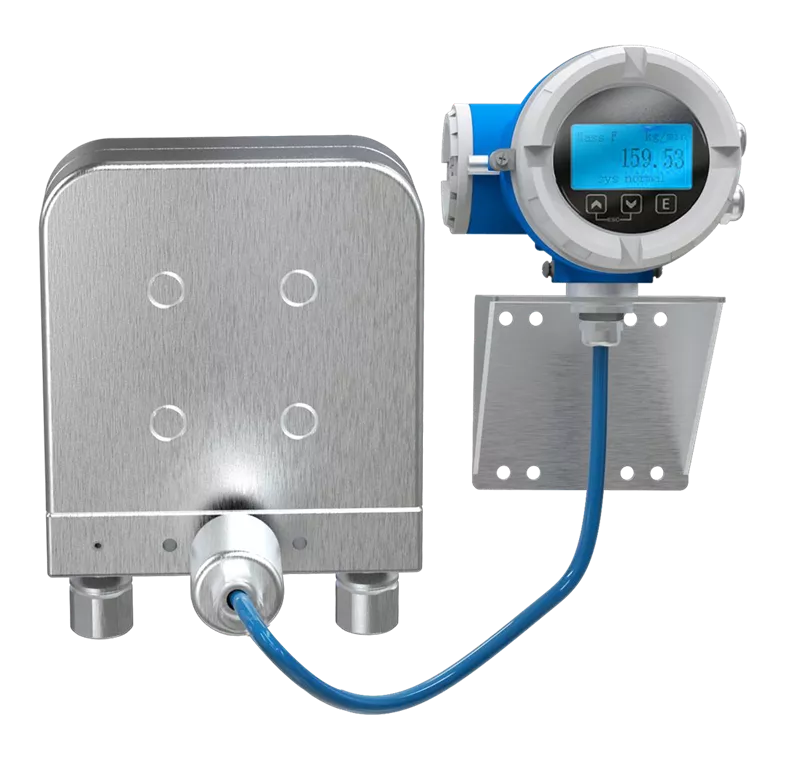

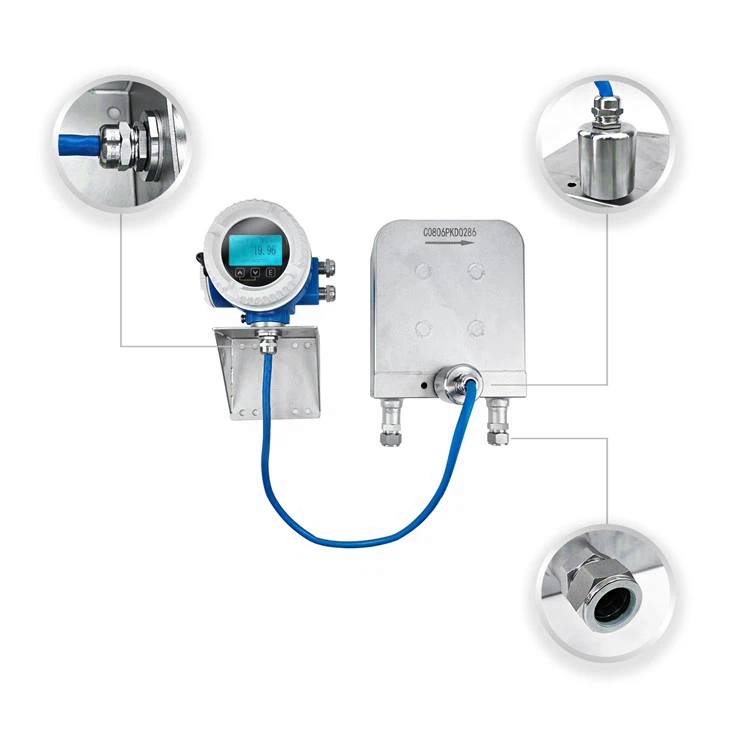

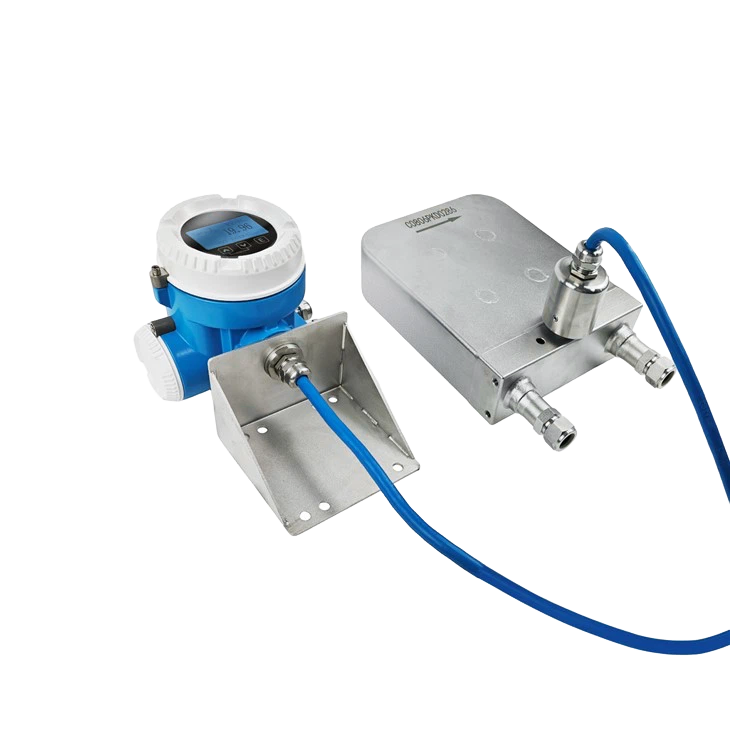

RM-CMASS003-4-8-15 High Pressure Mass Flow Meter
P-High pressure Series
At Reinmeer, we are committed to delivering cutting-edge industrial
solutions that ensure operational excellence and safety. In collaboration
|
Features |
Description |
|
|---|---|---|
|
MODEL |
RM-CMASS003 / RM-CMASS004/ RM-CMASS008 /RM-CMASS015 |
|
|
Power Supply |
220VAC/24VDC Self-adaption |
|
|
Output signal |
Modbus RTU/RS-485, Pulse,4-20mA Current loop |
|
|
Display;Operate |
3-line backlight; Touch key control |
|
|
Protection grade |
IP67 | |
| Housing material | 304 stainless steel, ZL401 (Transmitter) | |
| Electrical connection | 4-20mA Current loop | |
| Measuring Tube Material; Wetted Parts Surface Finish |
316L (default), titanium/Ha C alloy/ tantalum (optional); polishable. |
|
| Process connection | Thread | |
| Accuracy class | ±0.1%,±0.15%, ±0.2%, ±0.5 %, ±1.0% | |
| Transmitter software | CLS100 (default), optional CLS200, CLS300 | |
| Other certifications | Explosion proof certificate, SIL, CCS, 3-A, EAC |
In fields such as hydrogen energy, CNG, and other high-pressure gas applications, precise, safe,
and reliable flow measurement is the core of operations. Our high-pressure Coriolis mass flow
meter series is specifically designed to handle extreme pressure conditions, offering you flawless
metering solutions.
Wide Application Fields
This series of flow meters is the ideal choice for the following high-pressure gas metering scenarios:
Hydrogen Energy Industry: Hydrogen refueling stations (H70/H35), hydrogen production plants,
hydrogen fuel cell testing platforms, hydrogen storage system metering.
CNG (Compressed Natural Gas) Field: CNG refueling stations, mother/child station trade transfer
metering, compressor outlet flow measurement.
High-Pressure Industrial Gases: Various high-pressure cylinder refilling (such as helium, oxygen,
argon), special gas metering, purge gas flow control.
Research & Testing Platforms: Laboratory R&D, engine testing stands, valve and pipe testing
systems requiring precise high-pressure gas metering.

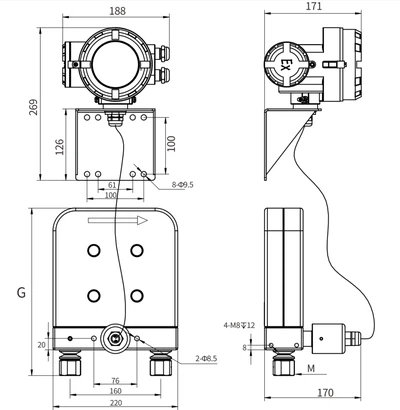

Overall Dimension (unit:mm)
FLOW
