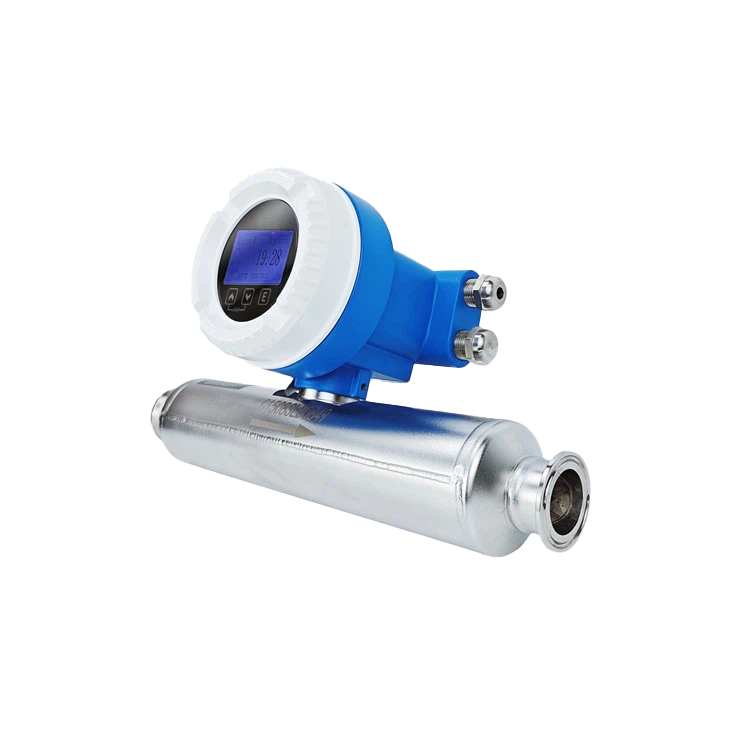

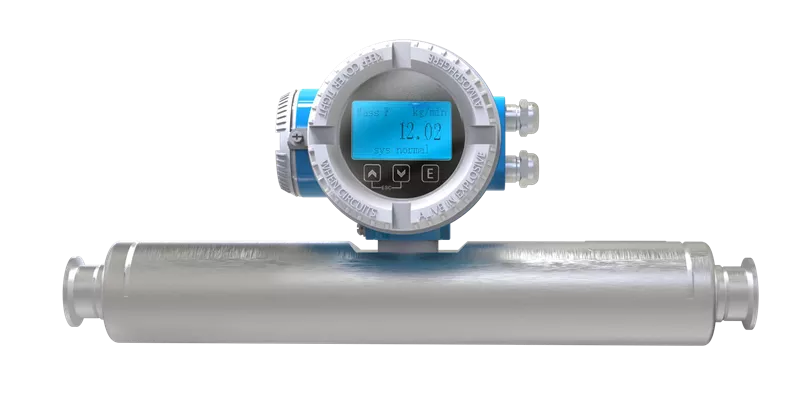

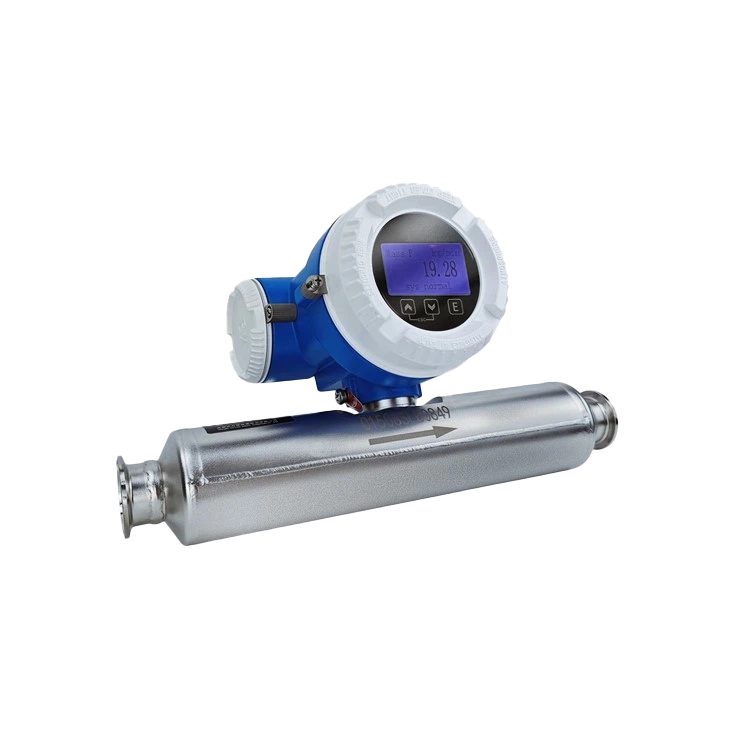

L-Straight tube Series Sanitary and Hygienic Coriolis Flow Meter
RM-CMASS008
The Reinmeer Sanitary Coriolis Mass Flow Meter is engineered specifically to meet the rigorous hygiene and precision standards of the food, beverage, and pharmaceutical industries.
|
Features |
Description |
|
|---|---|---|
|
MODEL |
RM-CMASS08 / RM-CMASS15 /RM-CMASS25/RM-CMASS40/RM-CMASS50 |
|
| Nominal Diameter (DN) | DN04, DN08, DN15, DN20, DN25, DN32, DN40, DN50,DN65, DN80, DN100 | |
|
Power Supply |
220VAC/24VDC Self-adaption |
|
|
Output signal |
Modbus RTU/RS-485, Pulse,4-20mA Current loop |
|
|
Display;Operate |
3-line backlight; Touch key control |
|
|
Protection grade |
IP67 | |
| Housing material | 304 stainless steel, ZL401 (Transmitter) | |
| Electrical connection | 4-20mA Current loop | |
| Measuring Tube Material; Wetted Parts Surface Finish |
316L (default), titanium/Ha C alloy/ tantalum (optional); polishable. |
|
| Process connection | Thread | |
| Accuracy class | 0.15 level, 0.2 level, 0.5 level (default), 1.0 level | |
| Transmitter software | CLS100 (default), optional CLS200, CLS300 | |
| Other certifications | Explosion proof certificate, SIL, CCS, 3-A, EAC |
As a high-precision flow measurement device based on the Coriolis effect, the Coriolis mass flow
meter, with its characteristic of directly measuring mass flow, is widely used in numerous industrial
fields such as petrochemicals, pharmaceuticals, food and beverage, and semiconductors.
