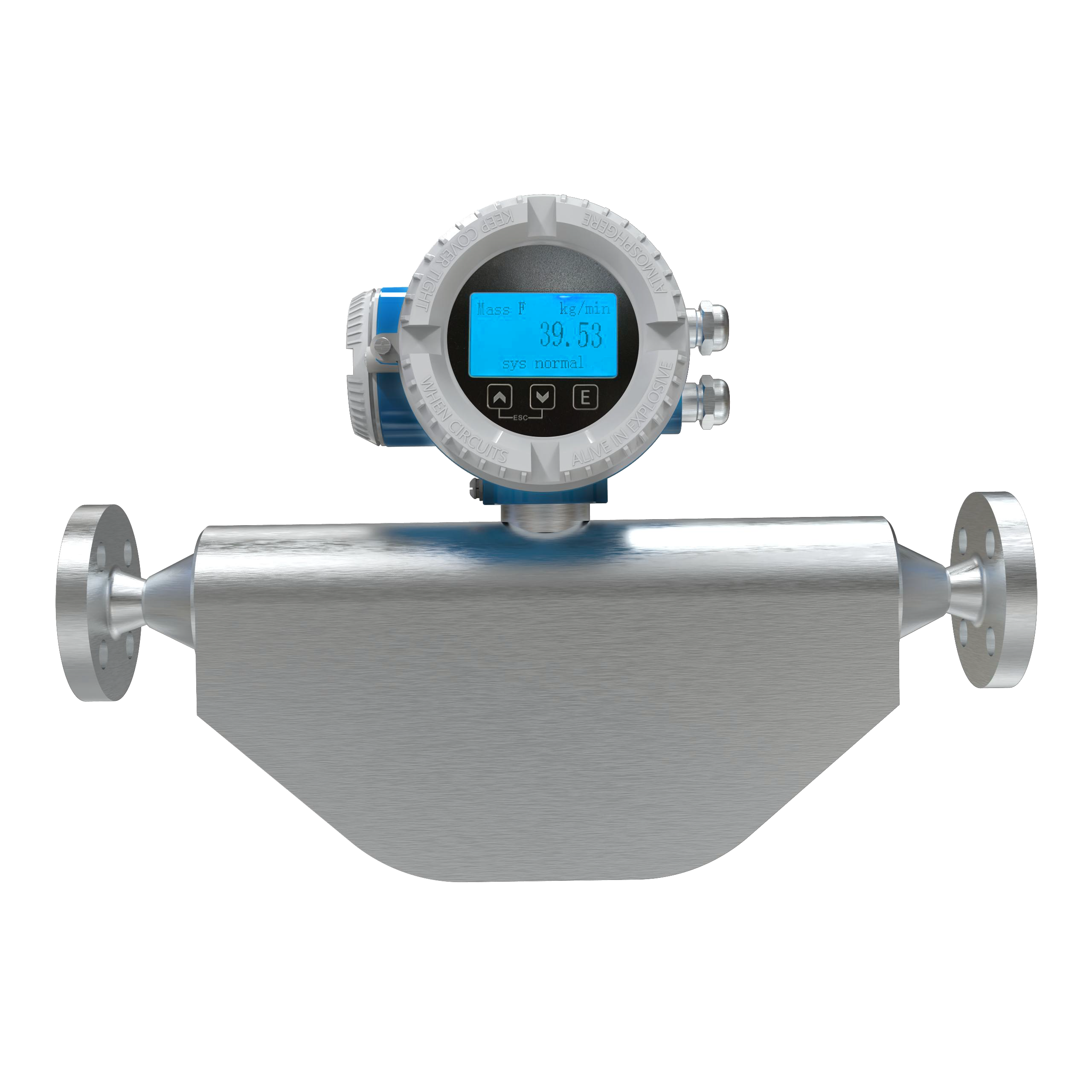

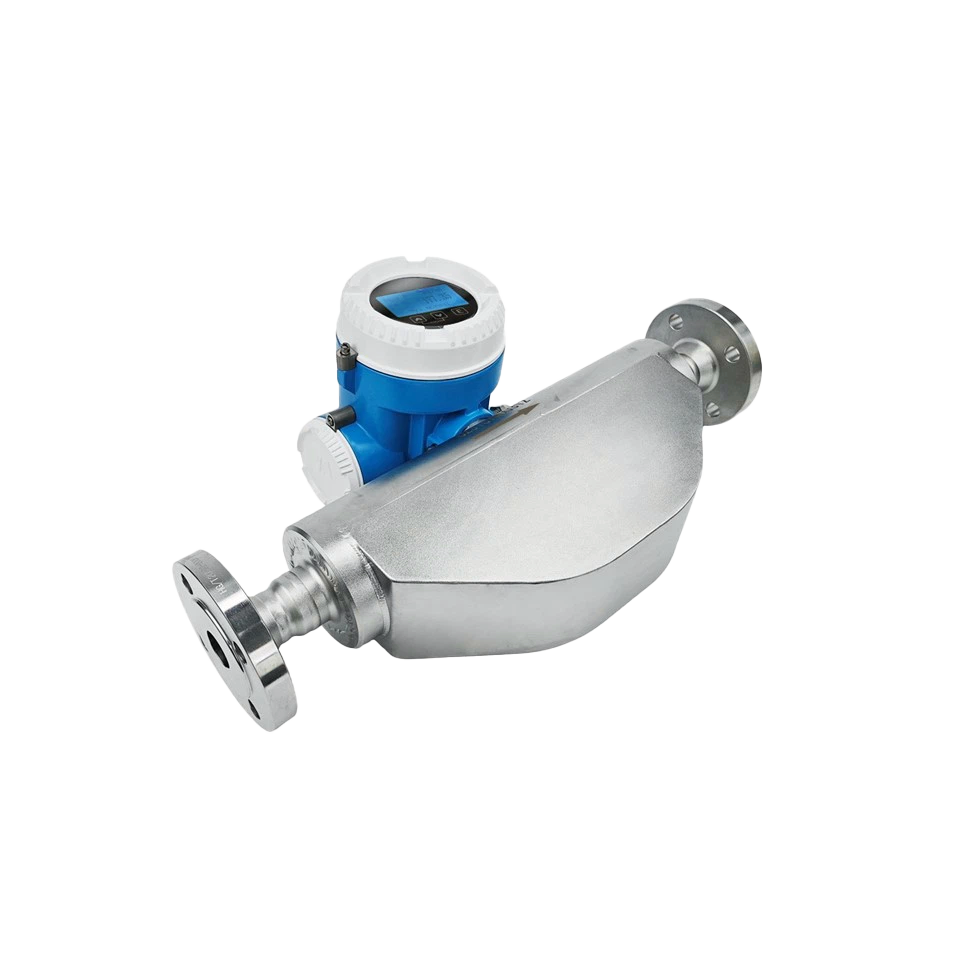

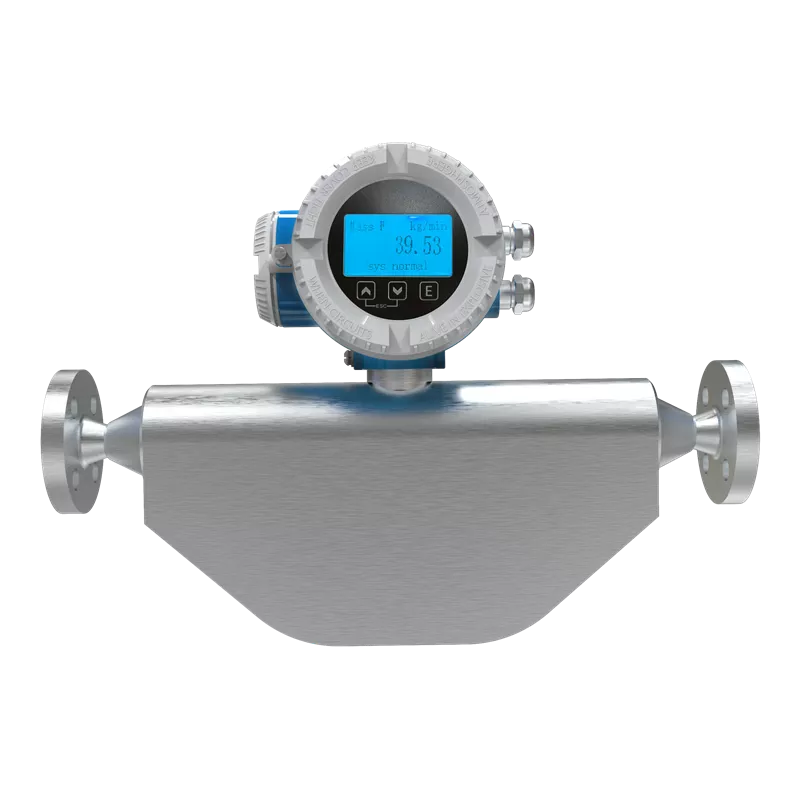

RM-CMASS025GW Dust-laden White Oil Coriolis Mass Flowmeter
W-Micro bend tube Series
High-Temperature Stability & Solid-Liquid Expert: Precision Measurement for Dust-Laden Media.
|
Features |
Description |
|
|---|---|---|
|
MODEL |
CMASS008 /CMASS015 / CMASS025 / CMASS040/ CMASS050 / CMASS080 / CMASS0100 |
|
| Certification: Transmitter & Sensor Assembly | CCS Certification, CPA, Explosion proof certificate(ex) | |
|
Power Supply |
220VAC/24VDC Self-adaption |
|
|
Output signal |
Hart,4 to 20mA current loop active,Modbus RTU/RS-485, |
|
|
Display;Operate |
3-line backlight; Touch key control |
|
|
Protection grade |
IP66,IP67 | |
| Housing material | 304 stainless steel, ZL401 (Transmitter) | |
| Electrical connection | 1/2 NPT,M20*1.5 | |
| Measuring Tube Material; Wetted Parts Surface Finish |
316L (default), titanium/Ha C alloy/ tantalum (optional); polishable. |
|
| Process connection | Thread,Flange,Sanitary high-speed interface | |
| Accuracy class | ±0.1%,±0.15%, ±0.2%, ±0.5 %, ±1.0% | |
| Transmitter software | CLS100 (default), optional CLS200, CLS300 | |
| Other certifications | Explosion proof certificate, SIL, CCS, 3-A, EAC |
Core Product Advantages
High-Temperature Solid-Containing Expert: Optimized for high-temperature solid-containing applications such
as dust-containing white oil, with temperature resistance up to 250°C
Dual-Parameter Output: Simultaneously outputs mass flow, density, and volumetric flow parameters
Wear-Resistant Design: Special materials and flow path design provide abrasion resistance and anti-clogging
protection
Wide Range Measurement: Broad turndown ratio covering 30~166.67L/min flow range
No Moving Parts: Low wear, maintenance-free, suitable for long-term continuous operation
High-Precision Measurement: Accuracy ±0.2%, repeatability 0.1%, ensuring measurement accuracy
Compact Structural Design: Micro-bend tube design occupies less space compared to other tube types,
enabling easier installation
