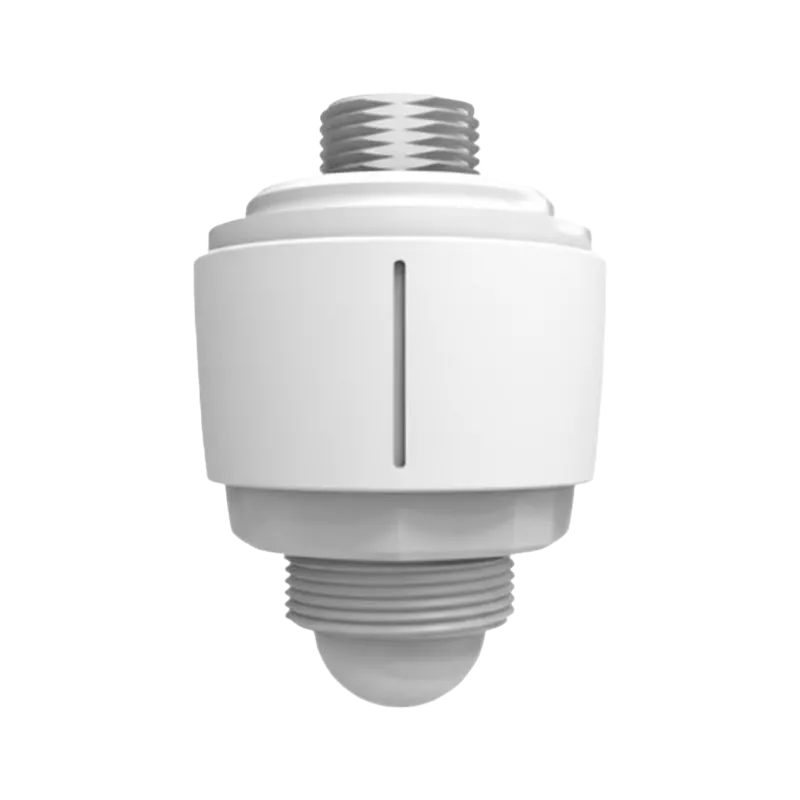

RM-R800E 80 GHz Series Radar level Transmitter

RM-R800E 80 GHz Series Radar level Transmitter
RM-R800E 80 GHz-1
1
2
3
4
RM-R800E 80 GHz Series Radar level Transmitter

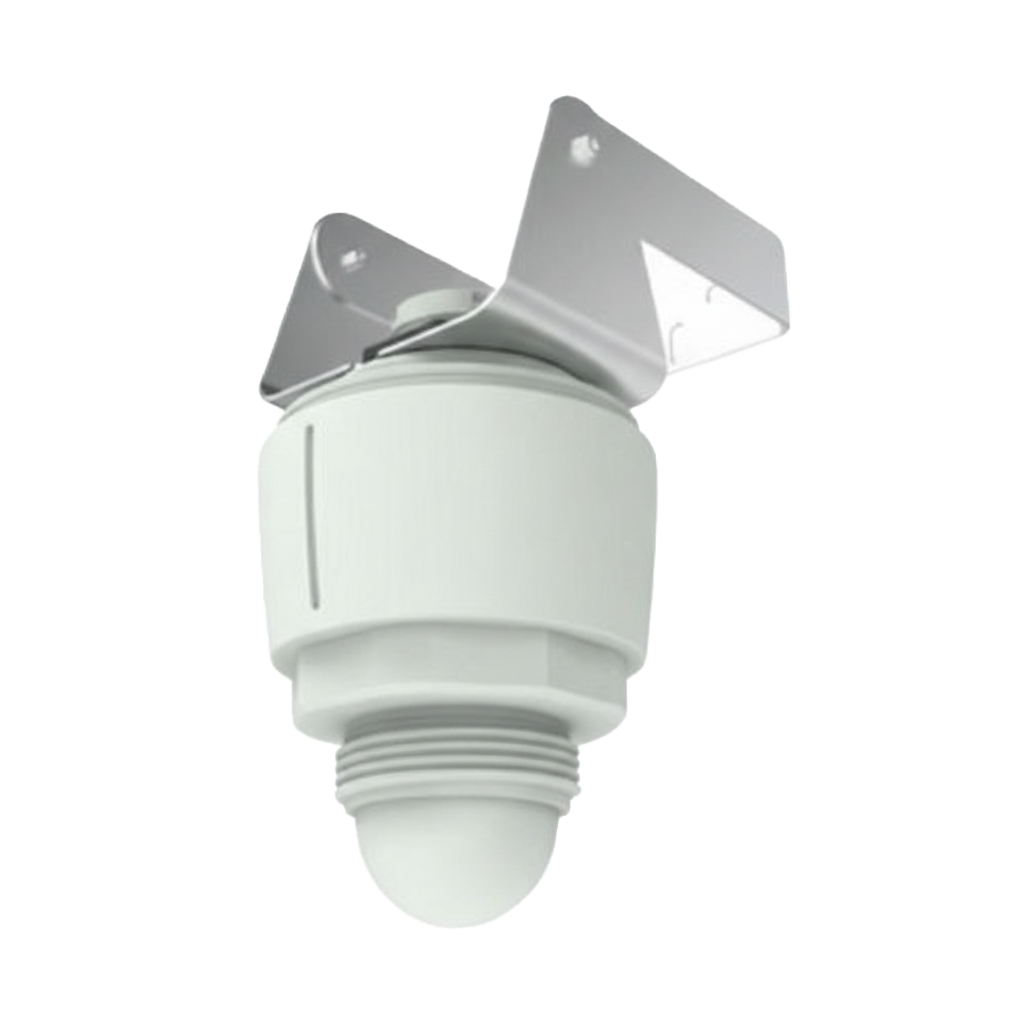

RM-R800E 80 GHz-1
1
2
3
4

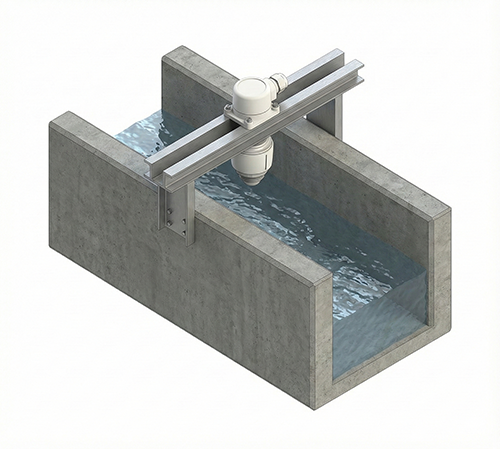

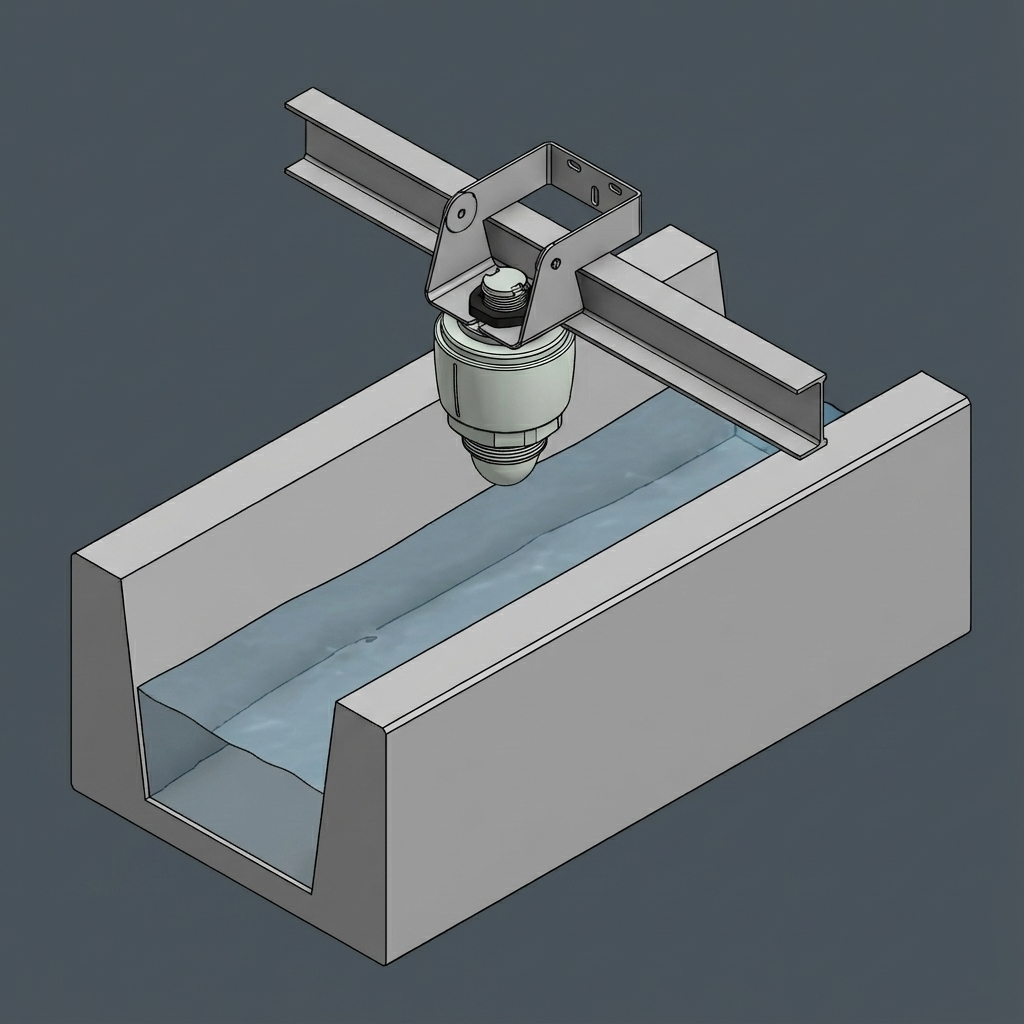

The RM-R800E is the ideal sensor for noncontact level measurement in simple applications. Weight only 500g. It is particularly suitable for open channel application: water/wastewater field, rain basins, flume, dam level monitoring.

Category: FLOW
Stock Code: RM-R800E 80 GHz
  • Product Features
  • Document

Features

Description

Frequency

77GHz-81GHz
Measurement Range 30M
Accuracy ±2mm for liquid
Beam Angle ± 3,5°
Material PP (PolyPropylene)
Process Connection Thread or Optional flange DN and ANSI (customized)
Process Temperature -40°C to 80°C
Process Pressure Normal atmospheric pressure
Signal output 4-20mA / RS485/ Bluetooth
Power Two-wire DC 24V (22V~30V)
Protection IP67
Sizes 83mm x 128mm
Net weight 0,5 Kg (depends on the connection type)
Communication Bluetooth



RM-R800E 80 GHz SERIES RADAR LEVEL TRANSMITTER -EN
