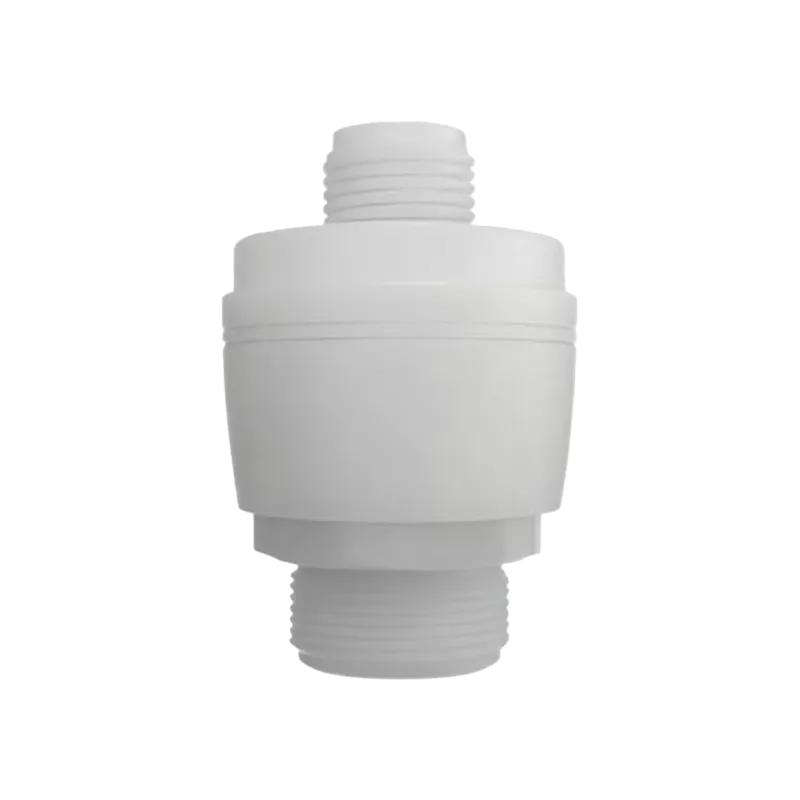

The RM-R800E(PVDF housing ) is the ideal sensor for non-contact level measurement in simple applications. It is particularly suitable for open channel application: exp water/wastewater field, sewage, rain basins, flume, dam level monitoring, pumping stations and rain overflow basins, level monitoring and for many other industrial applications.
|
Features |
Description |
|---|---|
|
Operating Frequency |
77 GHz – 81 GHz |
| Measuring Range | max. 30 m |
| Measurement Accuracy | ±2 mm (for liquids) |
| Beam Angle | ±3.5° |
| Housing Material: | PP (Polypropylene) / PVDF |
| Process Connection | Threaded or flange options (DIN and ANSI available upon request) |
| Process Temperature | -40°C … 80°C |
| Process Pressure | Normal atmospheric pressure |
| Signal Output | 4–20 mA / RS485 / Bluetooth |
| Supply Voltage | 2-wire DC 24V (22V–30V) |
|
|
