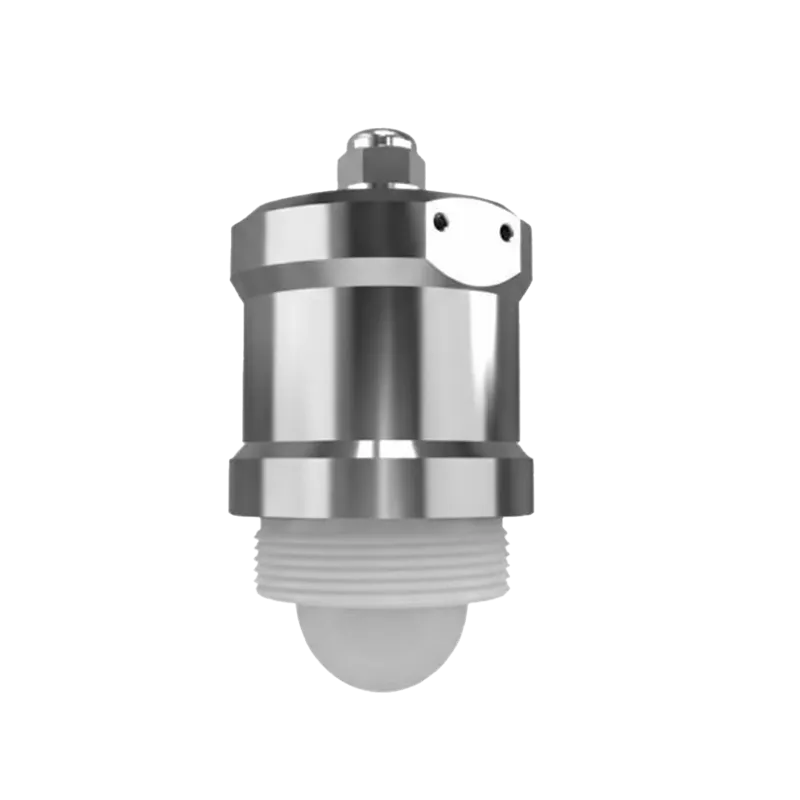

The RM-R800WP is an ideal sensor for non-contact level measurement in simple applications. It is especially suitable for open channel applications and is commonly used in water and wastewater facilities, stormwater basins, and dam level monitoring systems.
|
Features |
Description |
|---|---|
|
Operating Frequency |
77 GHz – 81 GHz |
| Measuring Range | max. 30 m |
| Measurement Accuracy | ±2 mm (for liquids) |
| Beam Angle | ±3.5° |
| Housing Material: | PP (Polypropylene) |
| Process Connection | Threaded or flanged options DIN and ANSI (on request) |
| Process Temperature | -40°C … 80°C |
| Process Pressure | Normal atmospheric pressure |
| Signal Output | 4–20 mA / RS485 / Bluetooth |
| Supply Voltage | 2-wire DC 24V (22V–30V) |
|
|
