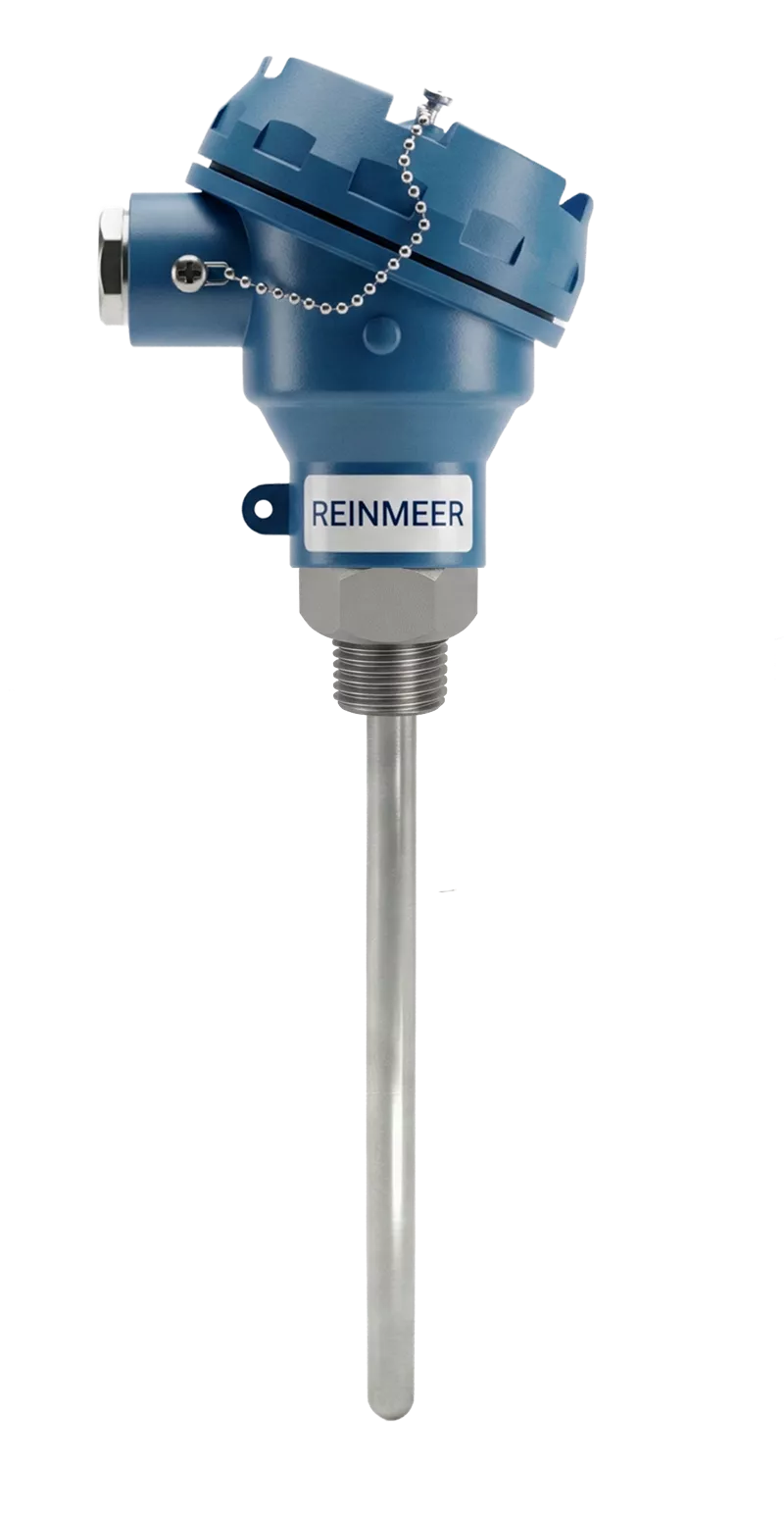

This sensor is designed for accurate temperature measurement in both liquid and gaseous media. Its construction features a replaceable measuring insert, making it suitable for a wide range of industrial applications. The measuring insert can be replaced easily without disturbing or damaging the existing process installation. A spring-loaded mechanism ensures consistent contact between the measuring insert and the bottom of the thermowell, providing reliable thermal coupling and measurement accuracy.
|
Features |
Description |
|
|---|---|---|
|
Sensing element |
J, K, N, T thermocouple |
|
|
Process connection |
|
|
|
Connection head |
Type B |
|
|
Sheath material |
Stainless Steel 1.4541 |
|
|
Transmitter |
Temperature transmitter can be mounted in a connection head |
|
|
Measuring insert |
|
|
|
Thermowell diameter |
9, 10, 11, 12, 14, 15 |
|
|
Measuring range |
-40.. +150°C |
|
|
Length L [mm] |
100/150/200/250/400 |
|
|
Process connection G |
M20x1,5 /G 1/2 or other |
