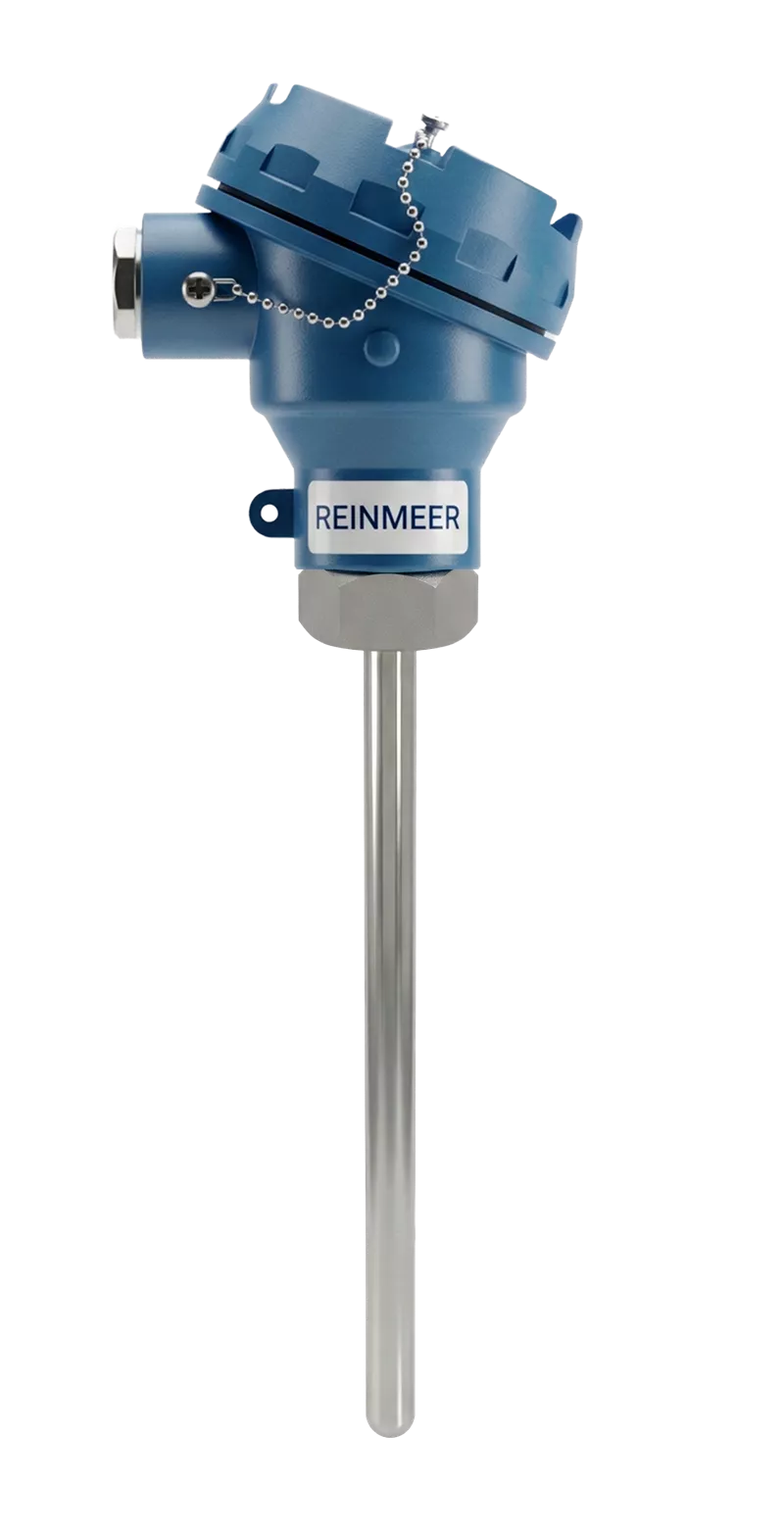

This sensor is designed for temperature measurement in liquid and gaseous media. Its construction with a replaceable measuring insert makes it suitable for a wide range of industrial applications. The measuring insert can be replaced without interrupting or damaging the process installation. The spring-loaded insert ensures optimal contact with the bottom of the thermowell, providing reliable and accurate temperature measurement.
|
Features |
Description |
|---|---|
|
Sensing element |
J, K, N, T thermocouple |
|
Process connection |
G1/2 or M20x1,5 thread |
|
Connection head |
Head type B |
|
Sheath material |
Stainless Steel 1.4541 |
|
Transmitter |
Temperature transmitter can be mounted in a connection head |
|
Measuring insert |
Pipe or mineral insulated version |
|
Thermowell diameter |
9, 10, 11, 12, 14, 15 |
|
Measuring range |
-40.. +800°C |
|
Length L [mm] |
100/150/200/250/400 |
