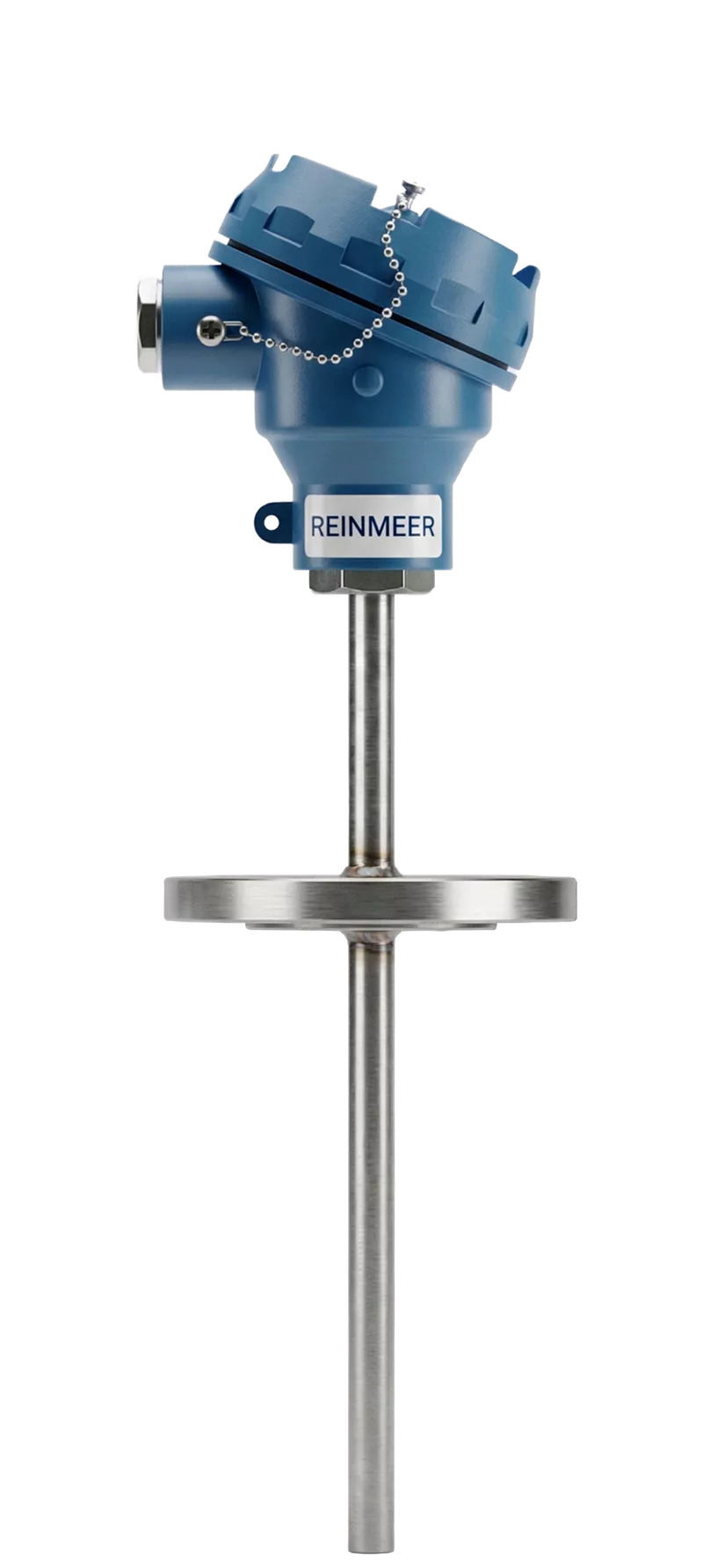

Temperature sensor suitable for measurement of liquid and gaseous media. It has a replaceable measuring insert adequate for various industrial applications. Replacement of the measuring insert does not cause the technological installation damage. Spring-loaded insert ensures an excellent connection with the bottom of the sensor thermowell.
|
Features |
Description |
|---|---|
|
Sensing element |
J, K, N, T |
|
Measuring range |
-40 ÷ +550°C |
|
Process connection |
G1/2, M20x1,5 thread or Flanged (DN15, DN25, ANSI etc.) |
|
Connection head |
Type B |
|
Sheath material |
Stainless steel 1.4541/316L/316Ti |
|
Measuring insert |
1,2 mm – 1,5 mm |
|
Thermowell diameter |
9, 10, 11, 12, 14, 15 mm |
|
Length L [mm] |
160, 250, 400 mm and other |
|
Cable gland |
ATEX II GD IP65 (for cable 5÷10 mm) |
|
ATEX Approval |
I M1 Ex ia II 1/2G Ex ia IIC T6 II 1/2D Ex ia IIIC T85°C |
