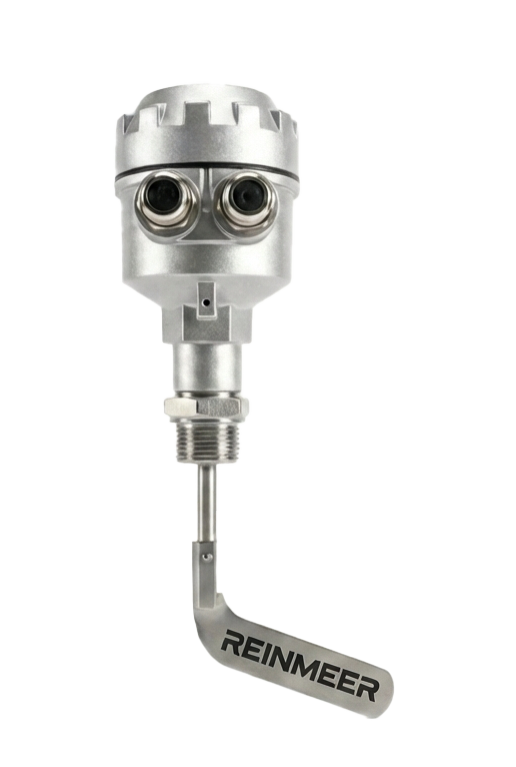

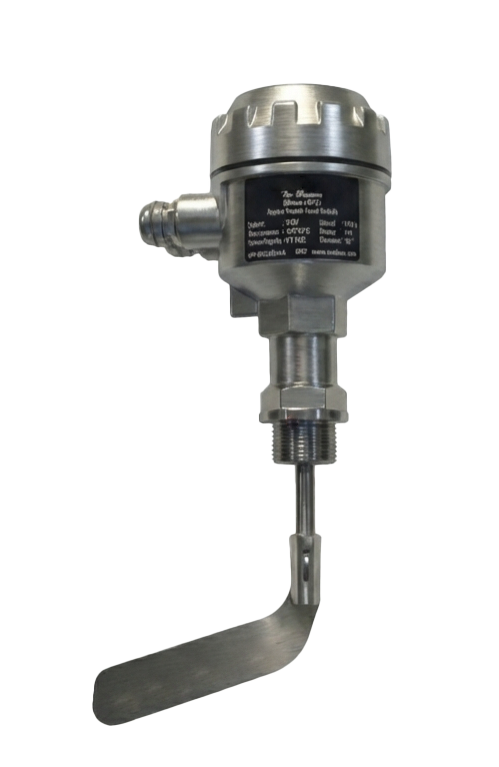

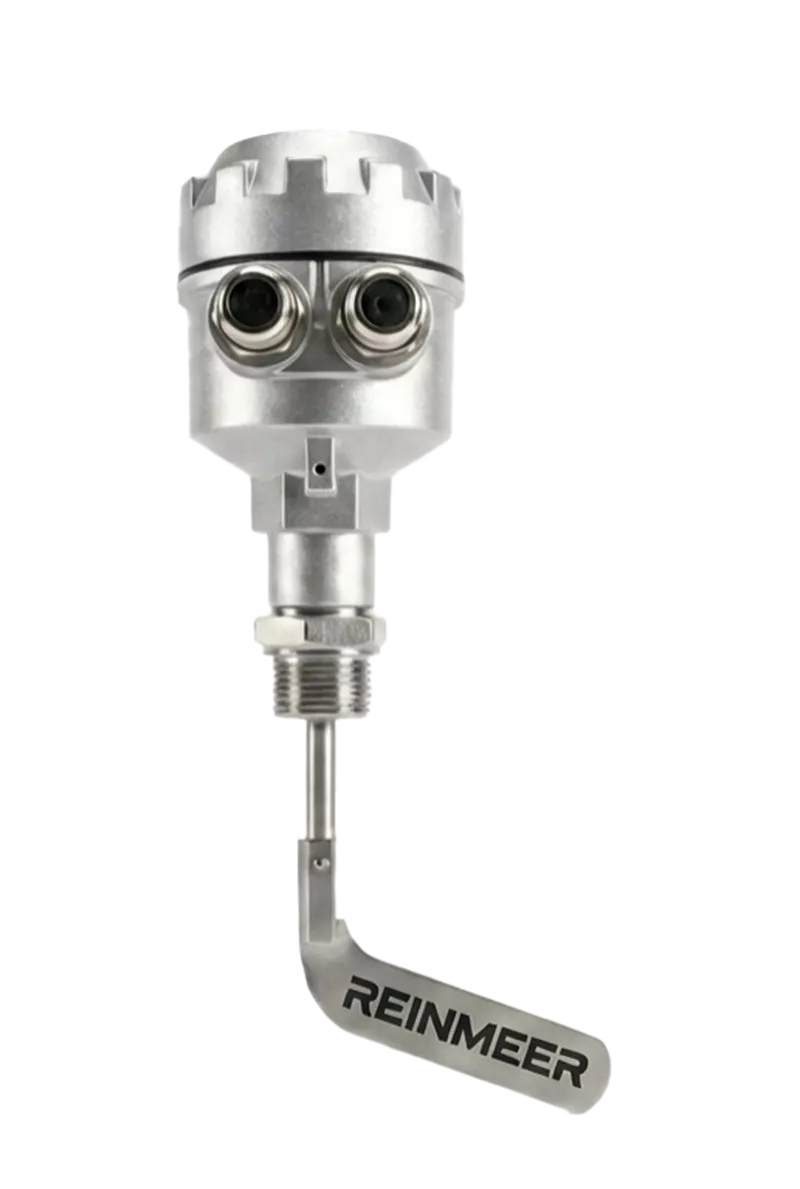

The MVRP Series is a durable level detection device featuring stainless steel paddles and a powder-coated aluminum housing.With an IP65 protection rating and various power options (110 VAC, 220 VAC, or 24 VDC).
|
Features |
Description |
|---|---|
|
Paddle Material |
1.4301 (304) Stainless Steel |
|
Process Connection Material |
1.4301 (304) Stainless Steel |
|
Enclosure Material |
Powder-coated Aluminum |
|
Ambient Temperature |
-20...+80 °C (Standard) |
|
Accuracy (Full Scale) |
Liquid: ±0.5% | Gas & steam: ±1.0%, ±1.5% |
|
Specific Gravity |
>0.5 g/cm3 |
|
Process Pressure |
-0.5...+0.5 barg |
|
Supply Voltage |
110 VAC / 220 VAC / 24 VDC |
|
Output Signal |
Standard: -40°C ~ +250°C | (Optional) -40°C ~ +350°C |
|
Material |
1 x SPDT Contact (5 A 250 VAC) |
| Electrical Connection | 2 x M20 x 1.5 Metal Glands |
| Rotation Speed | 5 rpm |
| Power Consumption | 4W |
| Protection Class | IP65 |
