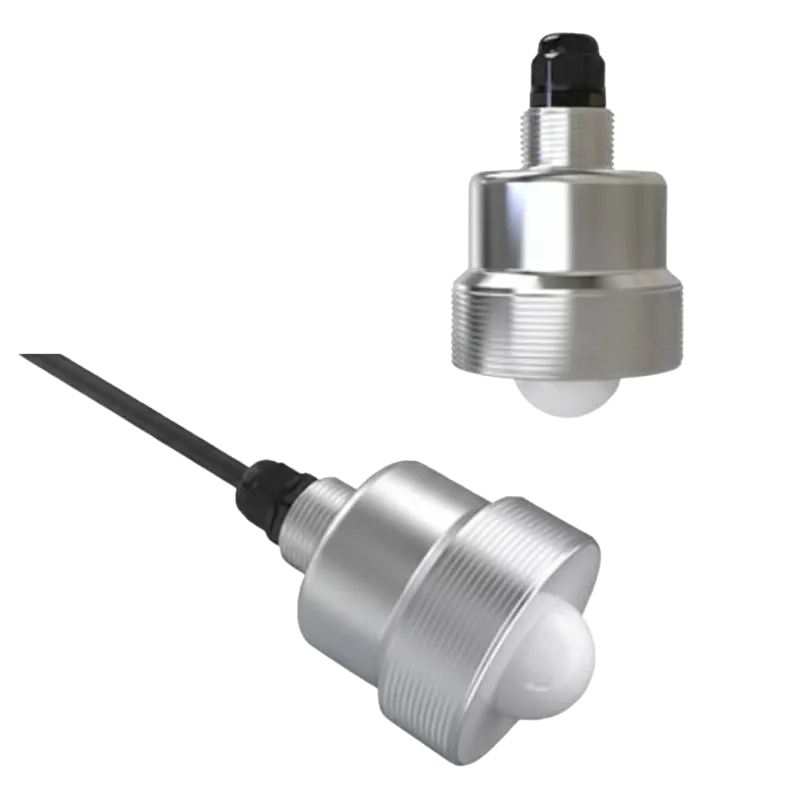

The RM-R800WE is the ideal sensor for noncontact level measurement in simple applications. It is particularly suitable for open channel application: exp. water and wastewater field, rain basins, dam level monitoring. Meanwhile the sensors could be applied on some liquid tanks or containers.
|
Features |
Description |
|---|---|
|
Frequency |
77GHz-81GHz |
| Measurement Range | 30M |
| Accuracy | ±2mm for liquid |
| Beam Angle | ± 3,5° |
| Material | Stainless Steel |
| Process Connection | Thread or Optional flange DN and ANSI (customized) |
| Process Temperature | -40°C to 80°C |
| Process Pressure | Normal atmospheric pressure |
| Signal output | 4-20mA / RS485/ Bluetooth / HART |
| Power | Two-wire DC 24V (22V~30V) |
| Protection | IP68 |
| Sizes | 74mm x 97mm |
| Net weight | 1,5 Kg (depends on the connection type) |
| Communication | Bluetooth APP |
