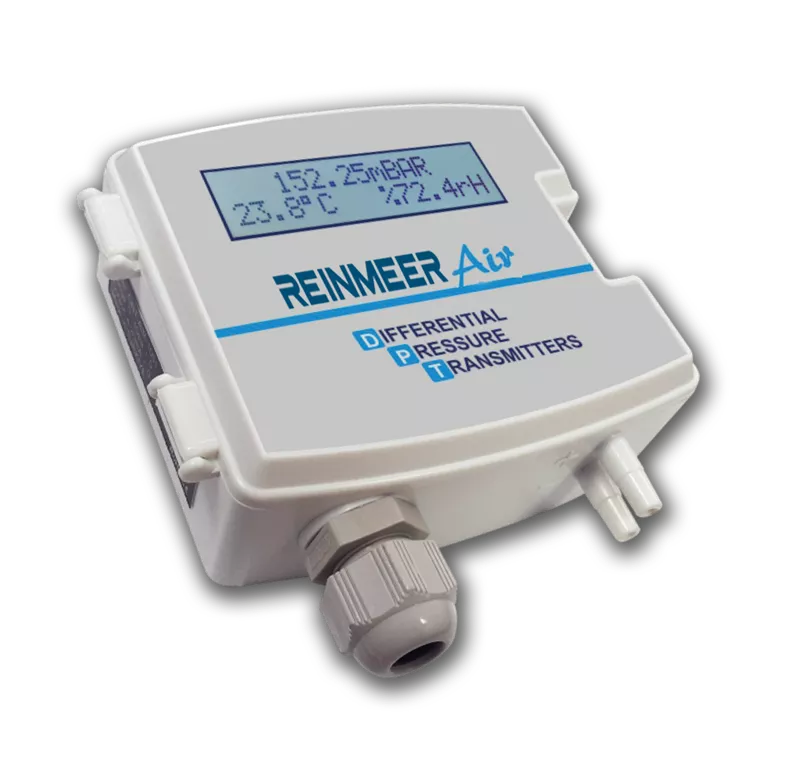

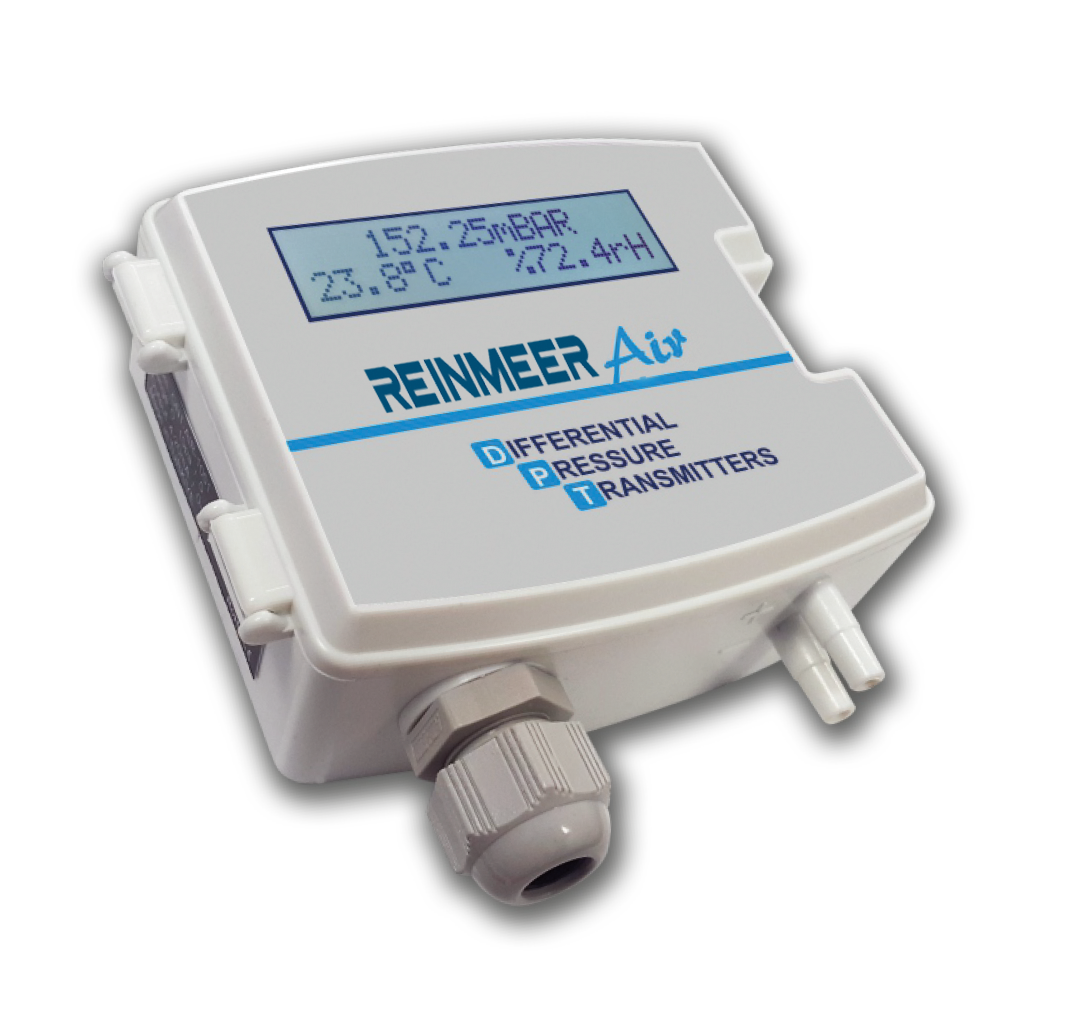

Product DescriptionThe Reinmeer RM-RNT-AIR is a highly versatile and advanced transmitter engineered to measure the differential between two pressure points with exceptional precision, while simultaneously reading ambient temperature and humidity data via an integrated digital communication sensor. Equipped with onboard relays, the device allows users to define specific setpoints for temperature, humidity, or differential pressure, enabling automated on/off control of external systems directly from the unit.
| Features | Description |
| Pressure Measurement Range |
Selectable as vacuum, pressure, or differential. Custom project-based values are also available. |
| Pressure Accuracy | ±0.25% (-20°C ~ 85°C) |
| Temperature Range | -40°C ~ 85°C |
| Temperature Accuracy | ±0.4°C |
| Humidity Range | 0%rH ~ 100%rH |
| Humidity Accuracy | ±3%rH |
| Analog Outputs | Selectable 0-10V or 4-20mA (can be assigned to temperature, humidity, or differential pressure) |
| Relay Outputs | 2 x 5Amp Relay Output (can be set to open/close based on temperature, humidity, or pressure differences) |
| Communication | RS485 with Modbus (allows reading of all sensor data, driving relays, and setting analog outputs) |
| Power Supply | 7/36 VDC |
| Display Features | 2-line backlit LCD display for real-time monitoring; available in both with-display and without-display options |
